Vehicle Info NeededCOMP CAMSPART NUMBER: 249-SK35-306-8

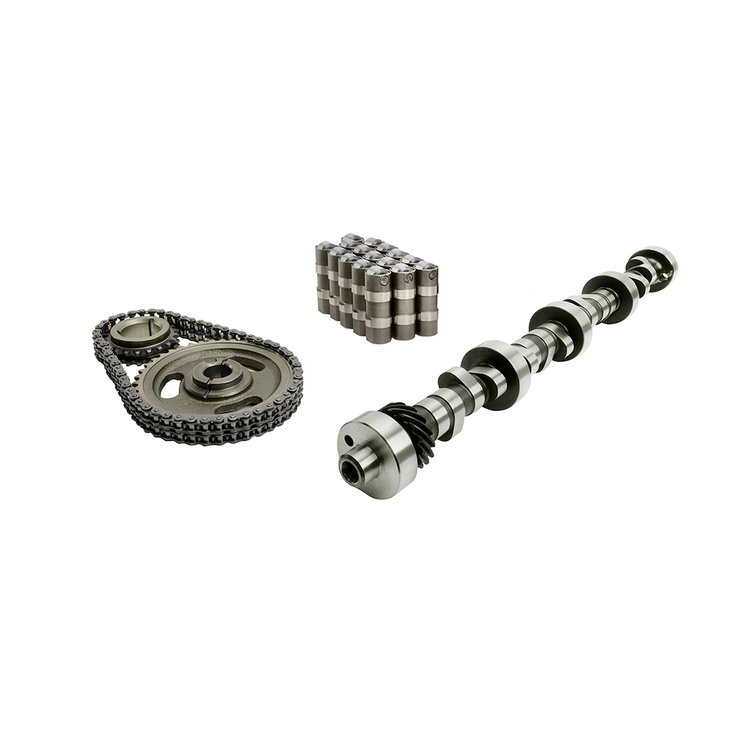

Comp Cams Blower/Turbo Hydraulic Flat Tappet Camshafts
$99595
Ships on 10/20/2026
Lowest Price Guarantee Ford 5.0L 1985-2002
- Blower Hydraulic Flat Tappet Camshaft Small Kit
- For engines originally equipped with hydraulic roller cams 1985-95 CARBURETED or E.F.I.
- Ford 5.0L 8 cyl. 1982-2001
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Supercharged combinations with heads, intake, headers. 3.55-3.73 gear, mild stall.
Ford 5.0L 1985-2002
Lift: .533"/.544"
Duration: 284°/290°
Lobe Separation Angle: 114°
RPM Range: 2000-6000
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width10.5
Package Length26.0
Weight23.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)230
Cam StyleHydraulic roller tappet
Grind Number35-306-8
Exh. Duration Advertised (Deg)290
Locks IncludedNo
Engine Make/SizeFord 5.0L/302
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.533
Int. Duration @ .050 In. (Deg)224
Assembly Lubricant IncludedYes
Basic Operating Rpm Range2,000-6,000
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.533 in (13.538 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)284
Lobe Separation (Deg)114
Rpm Range2000-6000
Lifter StyleHydraulic flat tappet
Advertised Duration284 int./290 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.544
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.533 int./0.544 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.544 in (13.818 mm)
Advertised Intake Duration284
Intake Duration At 050 Inch Lift224
Exhaust Duration At 050 Inch Lift230
Timing Chain StyleDouble roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration290
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift224 int./230 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK35-306-8
Package Qty1
Package TypeEA
