Vehicle Info NeededCOMP CAMSPART NUMBER: 249-SK35-310-8

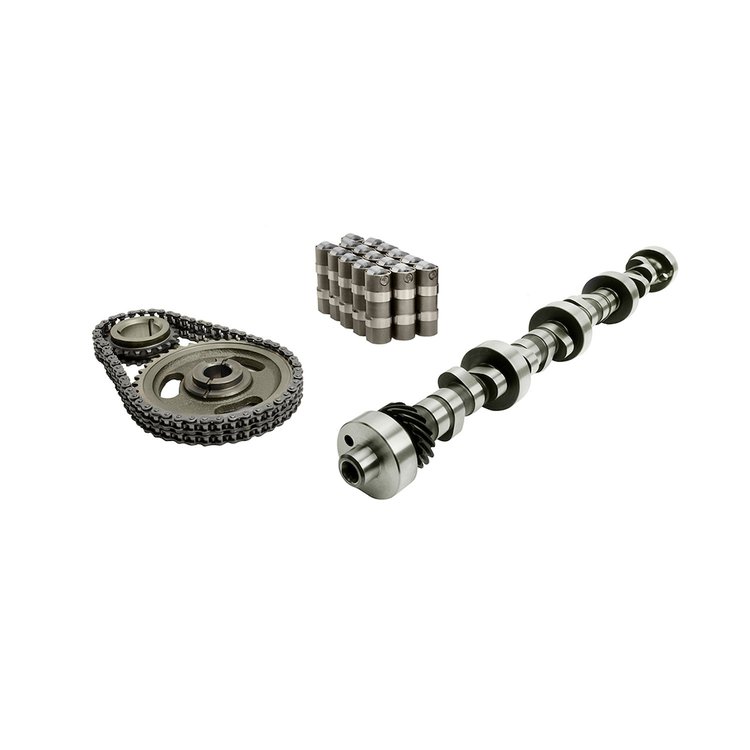

Magnum Hydraulic Roller Camshaft Small Kit Ford 5.0L 1985-95 Factory Roller Lift: .533"/.544"
$99595
Ships on 10/23/2026
Lowest Price GuaranteeFord 5.0L 1985-95 Factory Roller
- Magnum Hydraulic Roller Camshaft Small Kit
- Lift: .533"/.544"
- Duration: 270°/276°
- Lobe Separation Angle: 114°
- RPM Range: 1500-5500
- For engines originally equipped with hydraulic roller cams 1985-95
- Computer Compatible (EFI)
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Mild modifications, gears, mass air. Has slight idle.
Ford 5.0L 1985-95 Factory Roller
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width10.5
Package Length26.0
Weight23.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)220
Cam StyleHydraulic roller tappet
Grind Number270HR
Exh. Duration Advertised (Deg)276
Locks IncludedNo
Engine Make/SizeFord 5.0L/302
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.533
Int. Duration @ .050 In. (Deg)215
Assembly Lubricant IncludedNo
Basic Operating Rpm Range1,500-5,500
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.533 in (13.538 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)270
Lobe Separation (Deg)114
Rpm Range1500-5500
Lifter StyleHydraulic roller
Advertised Duration270 int./276 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.544
Valve Springs IncludedNo
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.533 int./0.544 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.544 in (13.818 mm)
Advertised Intake Duration270
Intake Duration At 050 Inch Lift215
Exhaust Duration At 050 Inch Lift220
Timing Chain StyleDouble roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration276
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift215 int./220 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK35-310-8
Package Qty1
Package TypeEA
