Vehicle Info NeededCOMP CAMSPART NUMBER: 249-SK35-312-8

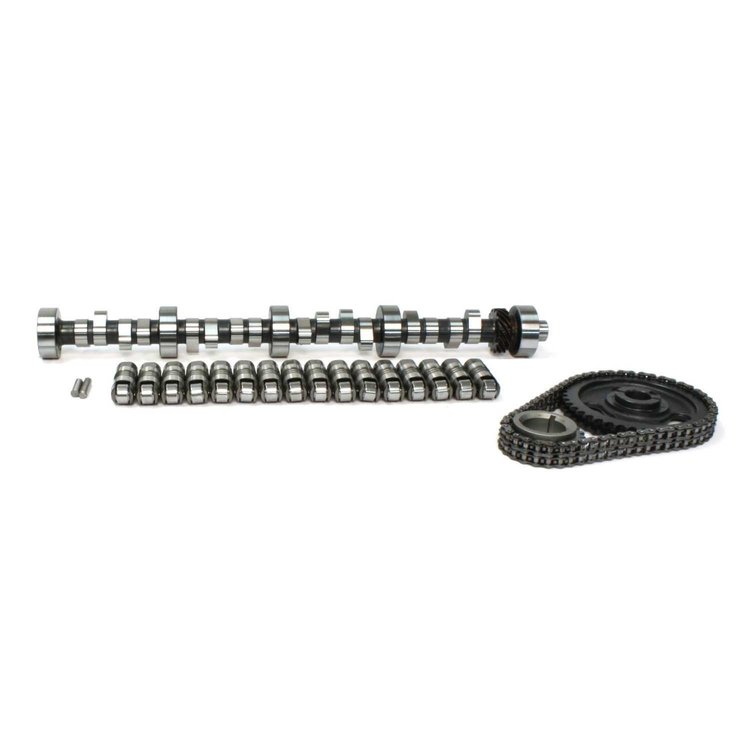

Magnum Hydraulic Roller Camshaft Small Kit Ford 5.0L 1985-95 Factory Roller Lift: .544"/.560"
$99595
Ships on 10/23/2026
Lowest Price GuaranteeFord 5.0L 1985-95 Factory Roller
- Magnum Hydraulic Roller Camshaft Small Kit
- Lift: .544"/.560"
- Duration: 276°/280°
- Lobe Separation Angle: 114°
- RPM Range: 2000-6000
- For engines originally equipped with hydraulic roller cams 1985-95
- Computer Compatible (EFI)
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Works well with 5 speed or 2500+ stall, likes good intake, mass air and injectors. Supercharged, works well with 5 speed, needs good intake with mass air and larger injectors, mild stall.
Ford 5.0L 1985-95 Factory Roller
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width10.5
Package Length26.0
Weight23.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)224
Cam StyleHydraulic roller tappet
Grind NumberFW 276H-R14
Exh. Duration Advertised (Deg)280
Locks IncludedNo
Engine Make/SizeFord 5.0L/302
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.544
Int. Duration @ .050 In. (Deg)220
Assembly Lubricant IncludedNo
Basic Operating Rpm Range2,000-6,000
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.544 in (13.818 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)276
Lobe Separation (Deg)114
Rpm Range2000-6000
Lifter StyleHydraulic roller
Advertised Duration276 int./280 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.56
Valve Springs IncludedNo
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.544 int./0.560 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.56 in (14.224 mm)
Advertised Intake Duration276
Intake Duration At 050 Inch Lift220
Exhaust Duration At 050 Inch Lift224
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration280
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift220 int./224 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK35-312-8
Package Qty1
Package TypeEA
