Vehicle Info NeededCOMP CAMSPART NUMBER: 249-SK35-440-8

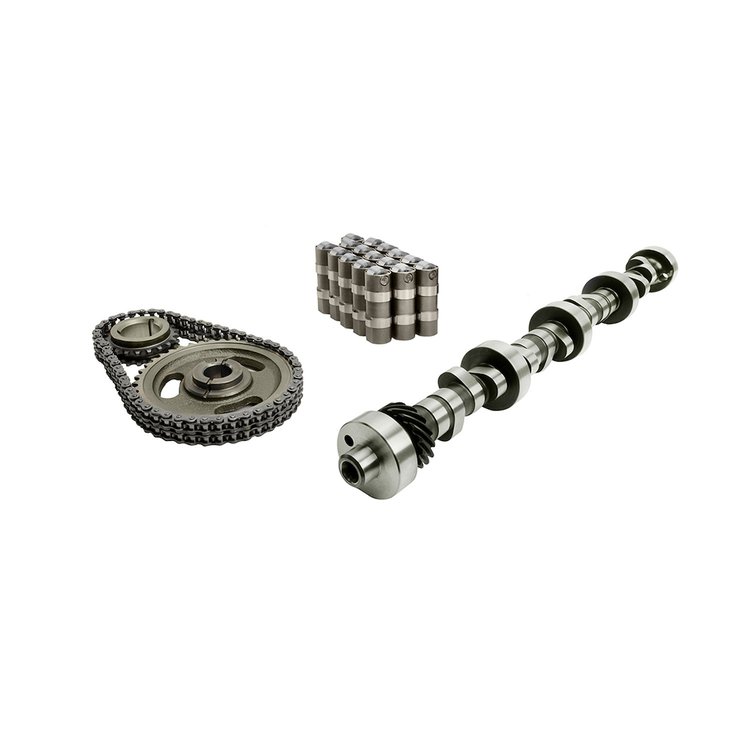

Magnum Hydraulic Roller Camshaft Small Kit Ford 5.0L 1985-95 Factory Roller Carburetor Only Lift: .512"/.512"
$99595
Ships on 10/23/2026
Lowest Price GuaranteeFord 5.0L 1985-95 Factory RollerCarburetor Only
- Magnum Hydraulic Roller Camshaft Small Kit
- Lift: .512"/.512"
- Duration: 281°/281°
- Lobe Separation Angle: 110°
- RPM Range: 2000-5500
For engines originally equipped with hydraulic roller cams 1985-95 CARBURETOR ONLYFord; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Great in street machines. Best power above 3500 RPM but still good torque. Mild rough idle. Largest for stock heads and intake. 2000+ stall recommended.
Ford 5.0L 1985-95 Factory Roller
Carburetor Only
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width10.5
Package Length26.0
Weight23.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)220
Cam StyleHydraulic roller tappet
Grind NumberFW 281H-R10
Exh. Duration Advertised (Deg)281
Locks IncludedNo
Engine Make/SizeFord 5.0L/302
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.512
Int. Duration @ .050 In. (Deg)220
Assembly Lubricant IncludedNo
Basic Operating Rpm Range2,000-5,500
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.512 in (13.005 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)281
Lobe Separation (Deg)110
Rpm Range2000-5500
Lifter StyleHydraulic roller
Advertised Duration281 int./281 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.512
Valve Springs IncludedNo
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.512 int./0.512 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.512 in (13.005 mm)
Advertised Intake Duration281
Intake Duration At 050 Inch Lift220
Exhaust Duration At 050 Inch Lift220
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration281
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift220 int./220 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK35-440-8
Package Qty1
Package TypeEA
