Vehicle Info NeededCOMP CAMSPART NUMBER: 249-SK35-522-8

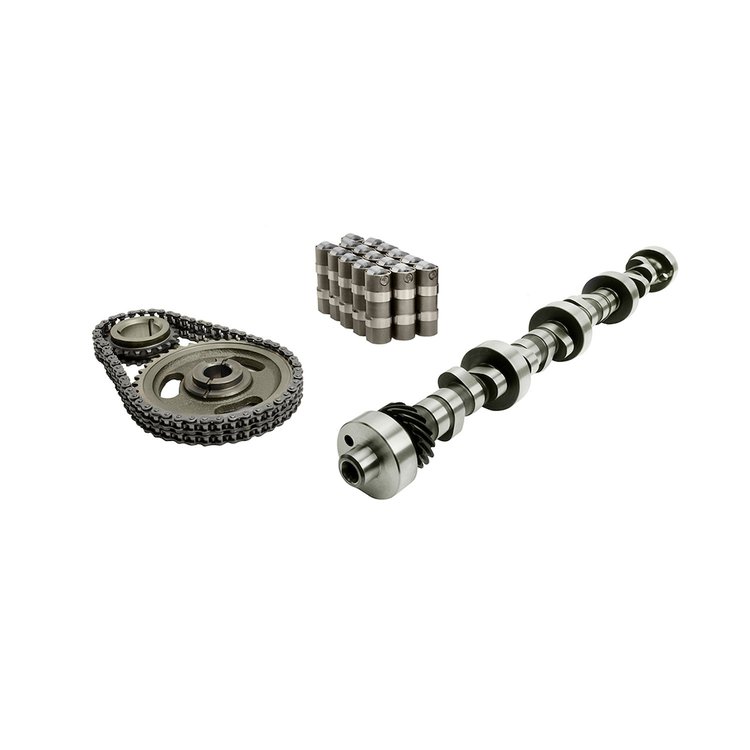

Comp Cams Xtreme Energy Hydraulic Roller Camshafts
$99595
Ships on 10/19/2026
Lowest Price GuaranteeFord 5.0L 8 cyl. 1982-2002Computer Controlled (EFI) for engines originally equipped with hydraulic roller camshaft.
- Xtreme Energy XE282HR Hydraulic Roller Camshaft Small Kit
- Produces Better Throttle Response
- Produces Top Engine Horsepower
- Delivers Increased Engine Vacuum
- 1 Year Limited Warranty
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Street/strip, needs EEC IV upgrade, heads, intake and gears. 2800+ stall.
Lift: .565''/.574''
Duration: 282°/290°
Lobe Separation Angle: 112°
RPM Range: 2600-6500
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.3
Package Width10.8
Package Length25.4
Weight19.55 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)240
Cam StyleHydraulic roller tappet
Grind NumberFW XE282HR-12
Exh. Duration Advertised (Deg)290
Locks IncludedNo
Engine Make/SizeFord 5.0L/302
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.565
Int. Duration @ .050 In. (Deg)232
Assembly Lubricant IncludedNo
Basic Operating Rpm Range2,600-6,500
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.565 in (14.351 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)282
Lobe Separation (Deg)112
Rpm Range1500-5500
Lifter StyleHydraulic roller
Advertised Duration282 int./290 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.574
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.565 int./0.574 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.574 in (14.58 mm)
Advertised Intake Duration282
Intake Duration At 050 Inch Lift232
Exhaust Duration At 050 Inch Lift240
Timing Chain StyleDouble roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration290
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift232 int./240 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK35-522-8
Package Qty1
Package TypeEA
