Vehicle Info NeededCOMPETITION ENGINEERINGPART NUMBER: 247-6009

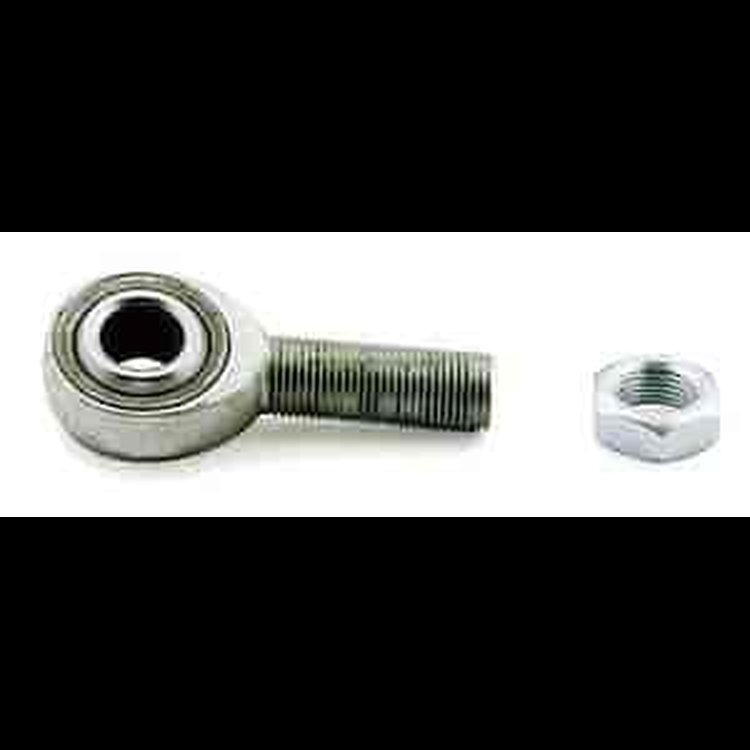

Low Carbon Steel Rod End Right-Hand Thread Thread: 5/8"
$3399
Ships on 09/08/2026
Lowest Price GuaranteeLow Carbon Steel Rod Ends
- Low Carbon Steel Rod End
- Thread: 5/8"
- Shank: 5/8"
- Hole: 5/8"
- Load Capacity: 9,813 lbs
Replacement Rod Ends; Low Carbon Steel; 5/8 in. R/H Thread; 5/8 in. Shank x 5/8 in. Hole; 9813 lbs. Static Radical Load; Incl.1 Rod End/Jam Nut; 5/8" Right Hand Thread• Low Carbon Steel• Includes one rod end and one jam nut• 5/8" x 5/8" Shank and Hole• 9813 lb Static radial load capacity
Right-Hand Thread
- Low Carbon Steel or Chrome Moly Construction
- Available in right or left-hand thread
- Jam nut included.
Competition Engineering Rod Ends cover a range of applications from throttle linkages to suspension arms. Chrome moly rod ends are suggested for ladder bar or 4-link suspensions. Polyurethane rod ends are for steet cars using ladder bars. Sold individually.
Features
Part TypeRod End
Product LineCompetition Engineering Rod Ends
BrandCOMPETITION ENGINEERING
Package Height0.75
Package Width5.37
Package Length7.25
Weight0.5 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Thread Length1.5 in (38.1 mm)
Rod End Head Bore Size0.625 in (15.9 mm)
Rod End Thread Size (In.)5/8-18 RH
QuantitySold individually
Jam Nut IncludedYes
Grease FittingNo
Rod End Construction3-piece
Heat-TreatedNo
Rod End Static Load Capacity (Lbs.)9,813
Rod End MaterialLow carbon steel
Rod End StylePTFE lined
Part FitmentUniversal
Vendor Part NumberC6009
Package Qty1
Package TypeEA
