Vehicle Info NeededCOMPETITION ENGINEERINGPART NUMBER: 247-6132

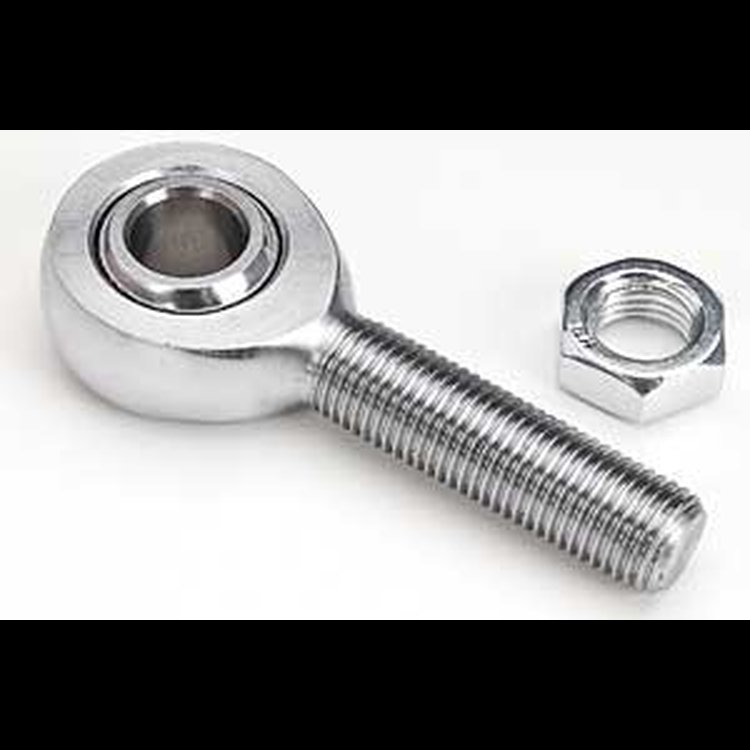

Magnum Series Chrome Moly Rod End Left-Hand Thread Thread: 5/8"
$2499
Ships on 10/08/2026
Lowest Price GuaranteeMagnum Series Chrome Moly Rod Ends
- Magnum Series Chrome Moly Rod End
- Thread: 5/8''
- Shank: 5/8''
- Hole: 5/8''
- Load Capacity: 14,480 lbs
Magnum Series; Replacement Rod Ends; Chrome Moly; 5/8 in. L/H Thread; 5/8 in. Shank x 5/8 in. Hole; 14480 lbs. Static Radical Load; Incl.1 Jam Nut; 5/8" Left Hand ThreadThe Best Choice for Ladder Bar and 4-Link Applications• Self-lubricating, self-sealing Rod Ends have increased thickness for greater tensile strength• Perfect for demanding Motorsports applications• When loaded, creates metal to metal contact for unsurpassed strength, yet when unloaded, the Rilsan® AZM30 injected liner will not rattle or squeak like standard two or three piece rod ends• Jam nut included• 5/8" x 5/8" Shank & Hole• 14,480 lb Load Capacity
Left-Hand Thread
Part TypeRod End
BrandCOMPETITION ENGINEERING
Package Height0.7
Package Width5.8
Package Length7.4
Weight0.48 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End Head Bore Size0.625 in (15.9 mm)
Rod End Thread Size (In.)5/8-18 LH
QuantitySold individually
Jam Nut IncludedYes
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Static Load Capacity (Lbs.)14,480
Rod End MaterialChromoly
Rod End StylePTFE lined
Part FitmentSemi Universal
Vendor Part NumberC6132
Package Qty1
Package TypeEA
