Vehicle Info NeededCOMPETITION ENGINEERINGPART NUMBER: 247-6133

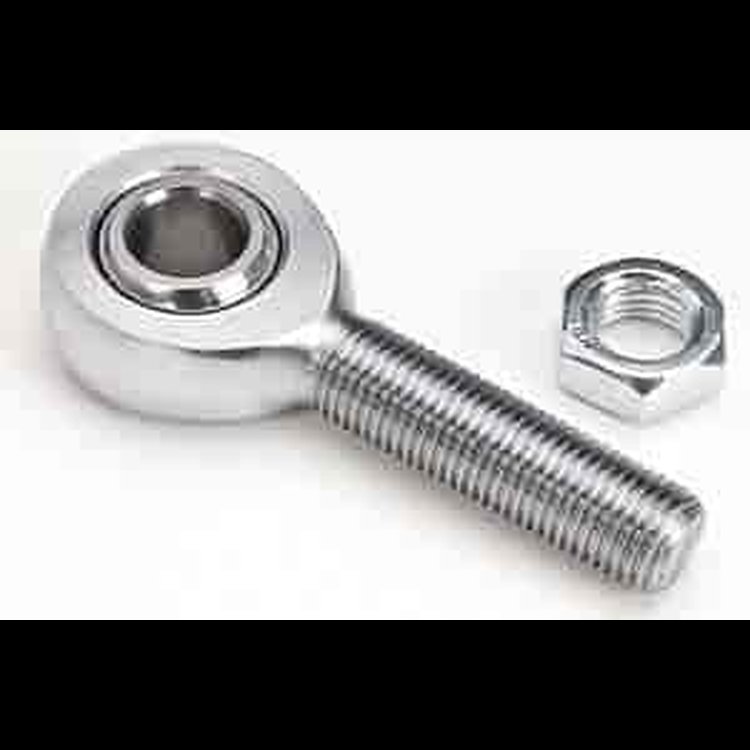

Magnum Series Chrome Moly Rod End Right-Hand Thread Thread: 3/4"
$4299
5 left in stock
Ships on Sep 08, 2026
Lowest Price GuaranteeMagnum Series Chrome Moly Rod Ends
- Magnum Series Chrome Moly Rod End
- Thread: 3/4''
- Shank: 3/4''
- Hole: 1/2''
- Load Capacity: 23,256 lbs
Magnum Series; Replacement Rod Ends; Chrome Moly; 0.75 in. R/H Thread; 0.75 in. Shank x 0.5 in. Hole; 23256 lbs. Static Radical Load; Incl.1 Jam Nut; 3/4" Right Hand Thread, 1/2" HoleThe Best Choice for Ladder Bar and 4-Link Applications• Self-lubricating, self-sealing Rod Ends have increased thickness for greater tensile strength• Perfect for demanding Motorsports applications• When loaded, creates metal to metal contact for unsurpassed strength, yet when unloaded, the Rilsan® AZM30 injected liner will not rattle or squeak like standard two or three piece rod ends• Jam nut included• 3/4" x 1/2" Shank & Hole• 23,256 lb Load Capacity
Right-Hand Thread
Part TypeRod End
BrandCOMPETITION ENGINEERING
Package Height1.3
Package Width3.4
Package Length6.7
Weight0.7 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End Head Bore Size0.5 in (12.7 mm)
Rod End Thread Size (In.)3/4-16 RH
QuantitySold individually
Jam Nut IncludedYes
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Static Load Capacity (Lbs.)23,256
Rod End MaterialChromoly
Rod End StylePTFE lined
Part FitmentUniversal
Vendor Part NumberC6133
Package Qty1
Package TypeEA
