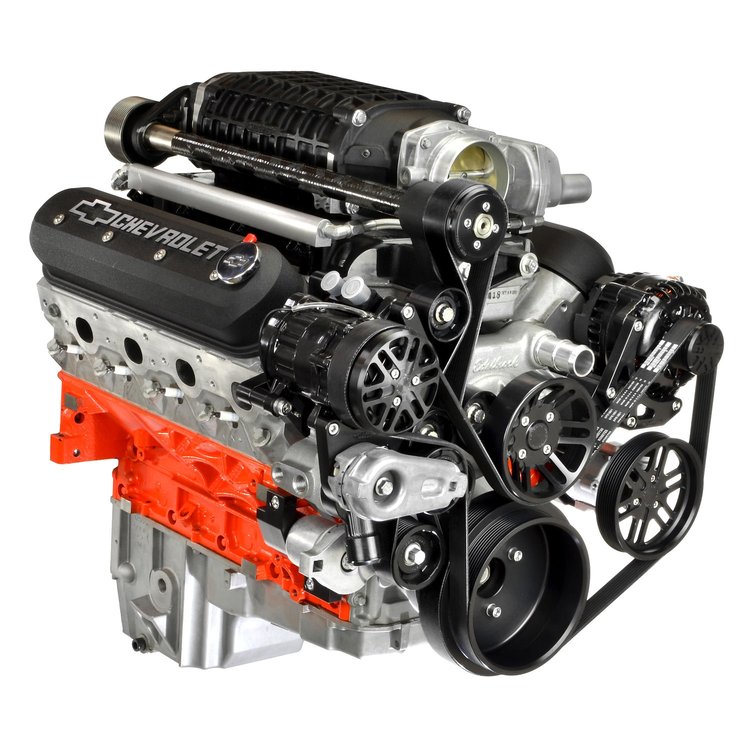

LSV10AB-SC01 MAX10R Pulley Kit for Chevy LS w/ Magnuson TVS2300 Supercharger, w/ Alternator/AC/Power Steering [Black Anodized]

Name: LSV10AB-SC01 MAX10R Pulley Kit for Chevy LS w/ Magnuson TVS2300 Supercharger, w/ Alternator/AC/Power Steering [Black Anodized]
Brand: CONCEPT ONE PULLEY SYSTEMS
SKU: 212-LSV10AB-SC01
Price: 3775.50 USD
Availability: InStock

^$3,775⁵⁰$4195.00You Save$419.50

Ships on 09/17/2026

Lowest Price Guarantee

GM LS w/ Magnuson TVS2300 Supercharger

MAX10R Pulley Kit

Chevy LS w/ Magnuson TVS2300 Supercharger

w/ Alternator/AC/Power Steering

Black Anodized

Concept ONE Pulley Systems LSV10AB-SC01 Features:

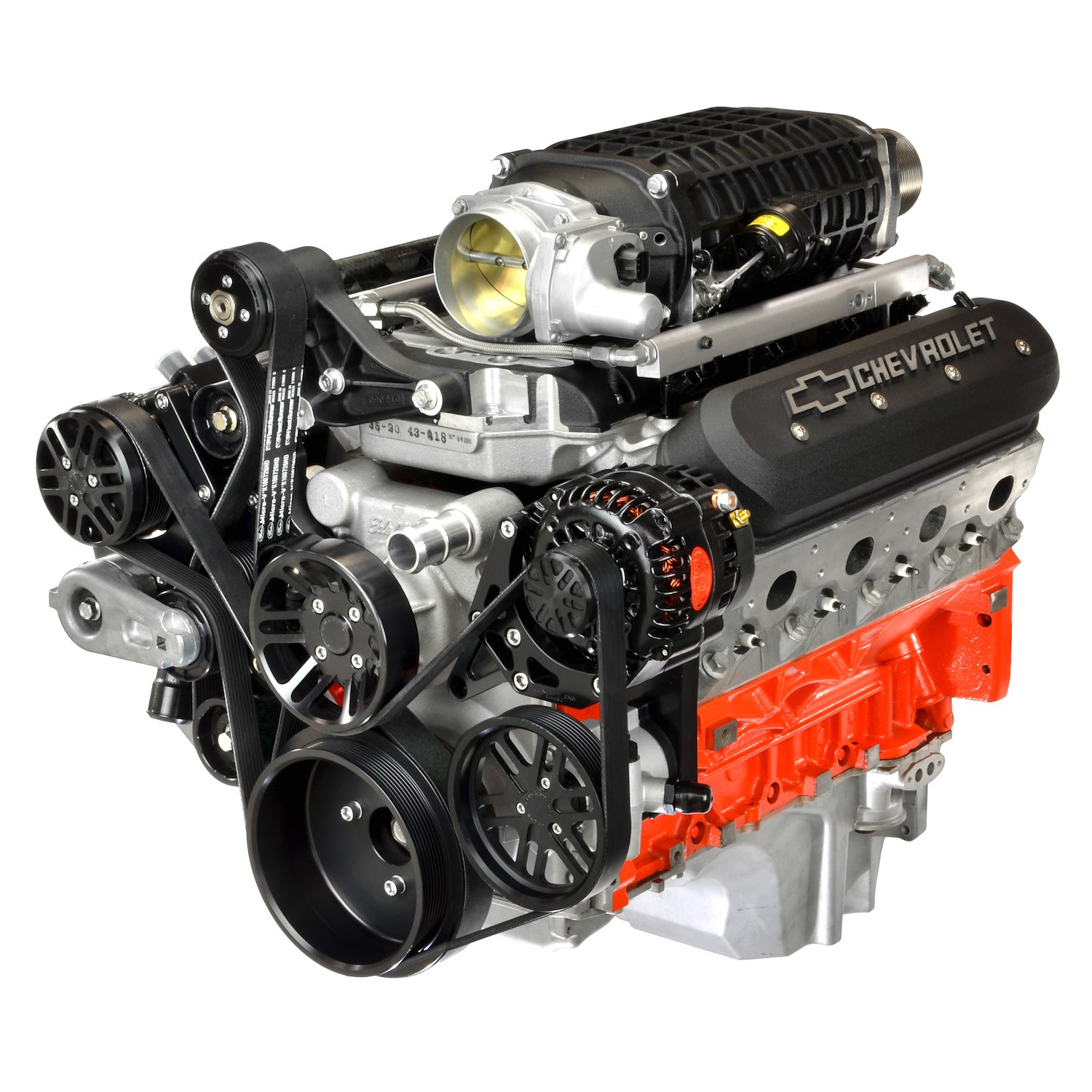

Drive your Magnuson TVS2300 supercharger and all front drive accessories with this MAX10R pulley system for Chevy LS. A 10-rib belt drives the supercharger directly from the crankshaft, while an 8-rib belt drives the included Powermaster 1-wire alternator, Edelbrock cast aluminum water pump, SD-7 compact AC compressor, and Lares power steering pump with remote-mount billet reservoir. A Fluidampr harmonic balancer is included along with heavy-duty billet brackets, pulleys, pulley covers, tensioner, idlers, belts, and hardware. Compatible with Magnuson PN 01-23-60-171 and corresponding Chevy LS engines. Black anodized.

Mid-Mount Configuration
Premium Drive Components: Fluidampr, Powermaster, Edelbrock, etc., 10-Rib/8-Rib Dual-belt design, Billet PS Reservoir Included, Heavy Duty Brackets

Performance and Aesthetics from Max10R Pulley Kits

Concept ONE presents the Max10R Supercharger Pulley System, engineered for high-performance applications. These Max10R Kits feature a dedicated 10-rib belt system designed to handle 15+ pounds of boost, ensuring reliable supercharger operation. Complementing this is an 8-rib belt system that efficiently drives the remaining accessories. The 10-rib pulleys achieve approximately 255 degrees of wrap on the crank pulley and around 220 degrees on the supercharger pulley (varying by diameter), paired with a heavy-duty tensioner specifically designed for superchargers. Available kits for a range of superchargers, including LSA, ZL1, LS9, Magnuson, Whipple, and Edelbrock.

Part TypePulley Kit

Product LineConcept ONE Pulley Systems GM LS Max10R Supercharger Pulley Kits

BrandCONCEPT ONE PULLEY SYSTEMS

Package Height9.0

Package Width19.0

Package Length25.0

Weight40.0 PG

Part CategoryPerformance Parts

Pulley TypeSerpentine

Air Conditioning Pulley IncludedYes

Power Steering Pulley IncludedYes

Alternator Pulley IncludedYes
