GM LS w/ Magnuson TVS2650 Magnum Supercharger
MAX10R Pulley Kit

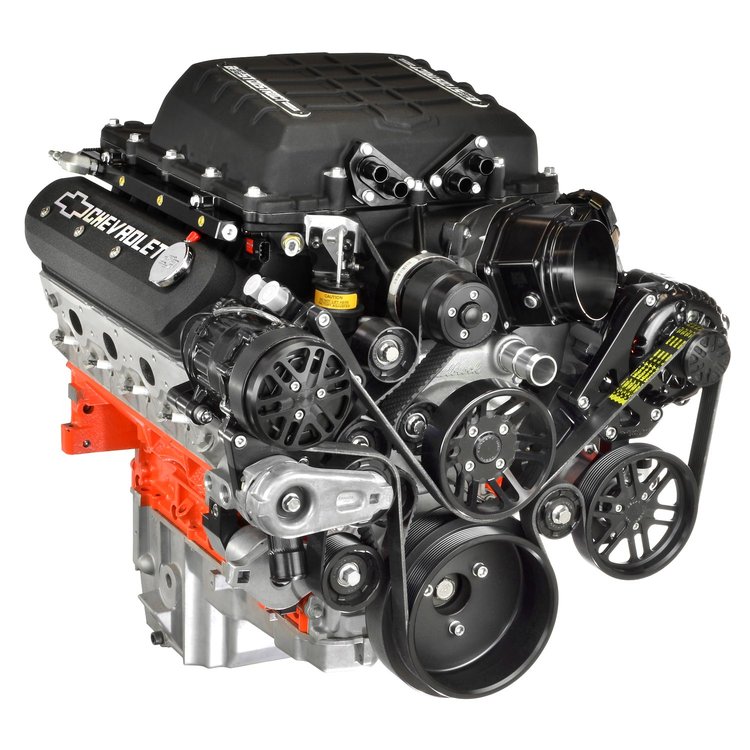

  • Chevy LS w/ Magnuson TVS2650 Magnum Supercharger
  • w/ Alternator/AC/Power Steering
  • Black Anodized

    Concept ONE Pulley Systems LSV10AB-SC09 Features:

    MAX10R is the ultimate front drive kit for your Magnuson TVS2650 Magnum supercharger. A dedicated 10-rib belt drives the supercharger directly from the crank pulley. A separate 8-rib pulley system drive the front-drive accessories. The bolt on system includes the following accessories: A Powermaster 1-wire alternator, Edelbrock water pump, SD-7 compact AC compressor, and Lares power steering pump with remote-mount billet reservoir. A Fluidampr harmonic balancer is included, as well. Heavy-duty billet brackets, pulleys, pulley covers, tensioner, idlers, belts, and hardware complete the system. Compatible with Magnuson TVS2650 Magnum supercharger part number 05-26-62-163, and corresponding Chevy LS3 / LSA engines. Black anodized finish.

    • Fits Chevy LS with TVS2650 Magnum Supercharger, Mid-Mount Configuration
    • Premium Drive Components: Fluidampr, Powermaster, Edelbrock, and more, Heavy Duty Brackets
    • Performance and Aesthetics from Max10R Pulley Kits

      Concept ONE presents the Max10R Supercharger Pulley System, engineered for high-performance applications. These Max10R Kits feature a dedicated 10-rib belt system designed to handle 15+ pounds of boost, ensuring reliable supercharger operation. Complementing this is an 8-rib belt system that efficiently drives the remaining accessories. The 10-rib pulleys achieve approximately 255 degrees of wrap on the crank pulley and around 220 degrees on the supercharger pulley (varying by diameter), paired with a heavy-duty tensioner specifically designed for superchargers. Available kits for a range of superchargers, including LSA, ZL1, LS9, Magnuson, Whipple, and Edelbrock.

    Part TypePulley Kit
    Product LineConcept ONE Pulley Systems GM LS Max10R Supercharger Pulley Kits
    BrandCONCEPT ONE PULLEY SYSTEMS
    Package Height9.0
    Package Width19.0
    Package Length25.0
    Weight47.0 PG
    Part CategoryPerformance Parts
    Pulley TypeSerpentine
    Air Conditioning Pulley IncludedYes
    Power Steering Pulley IncludedYes
    Alternator Pulley IncludedYes
    Pulley FinishBlack Anodized
    Belt IncludedYes
    Part FitmentDirect Fit
    Pulley MaterialAluminum
    Engine Make/SizeGM LS
    Vendor Part NumberLSV10AB-SC09
    Package Qty1
    Package TypeEA
