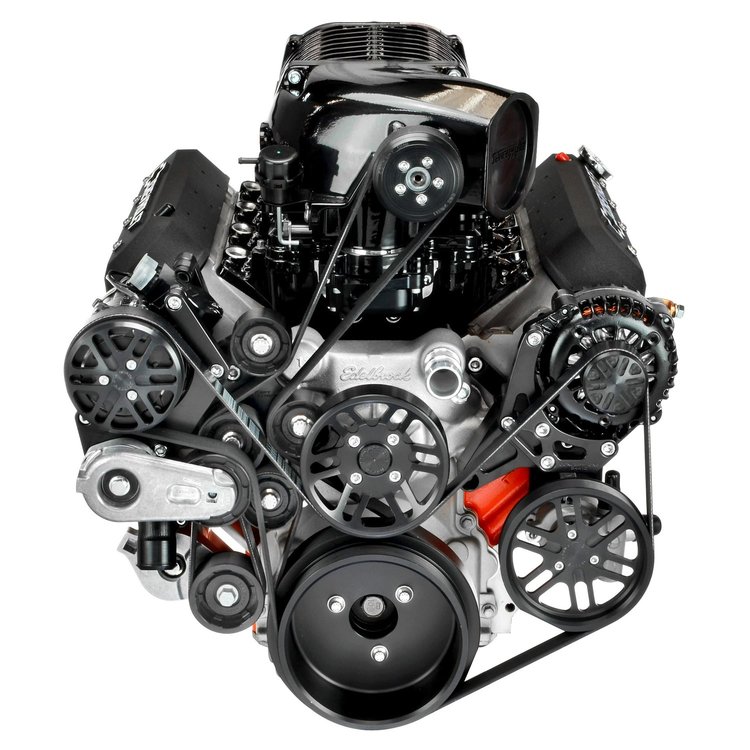

LSV10AB-SC24 MAX 10R 10-Rib Pulley Kit for GM LS Engines w/ Whipple 3.0L Supercharger [Black Anodized]

Name: LSV10AB-SC24 MAX 10R 10-Rib Pulley Kit for GM LS Engines w/ Whipple 3.0L Supercharger [Black Anodized]
Brand: CONCEPT ONE PULLEY SYSTEMS
SKU: 212-LSV10AB-SC24
Price: 3865.50 USD
Availability: InStock

^$3,865⁵⁰$4295.00You Save$429.50

Ships on 09/17/2026

Lowest Price Guarantee

GM LS w/ Whipple 3.0L Supercharger

MAX 10R 10-Rib Pulley Kit

GM LS Engines w/ Whipple WK-1815-30 3.0L Supercharger

Black Anodized

Concept ONE Pulley Systems LSV10AB-SC24 Includes:

Ultra small SD-7 compressor with 8-rib pulley and billet manifold
Cast aluminum Edelbrock water pump
New Lares aluminum power steering pump
Power steering reservoir - Remote reservoir included for maximum clearance
165 Amp CS130D Powermaster one-wire alternator
Fluidampr high performance SFI approved harmonic damper
Complete bracket set for alternator, A/C compressor, power steering and supercharger idler
Heavy duty 8/10 rib crank pulley, water pump pulley, alternator pulley, and power steering pulley
Heavy duty 10-rib bracket, idlers, and hardware
Supercharger pulley
Alternator pulley cover
Compressor nose cover
8-rib accessory belt
10-rib supercharger belt
GM heavy duty 10-rib supercharger tensioner
Continental heavy duty accessory tensioner
Chrome hardware
Billet aluminum thermostat housing

Performance and Aesthetics from Max10R Pulley Kits

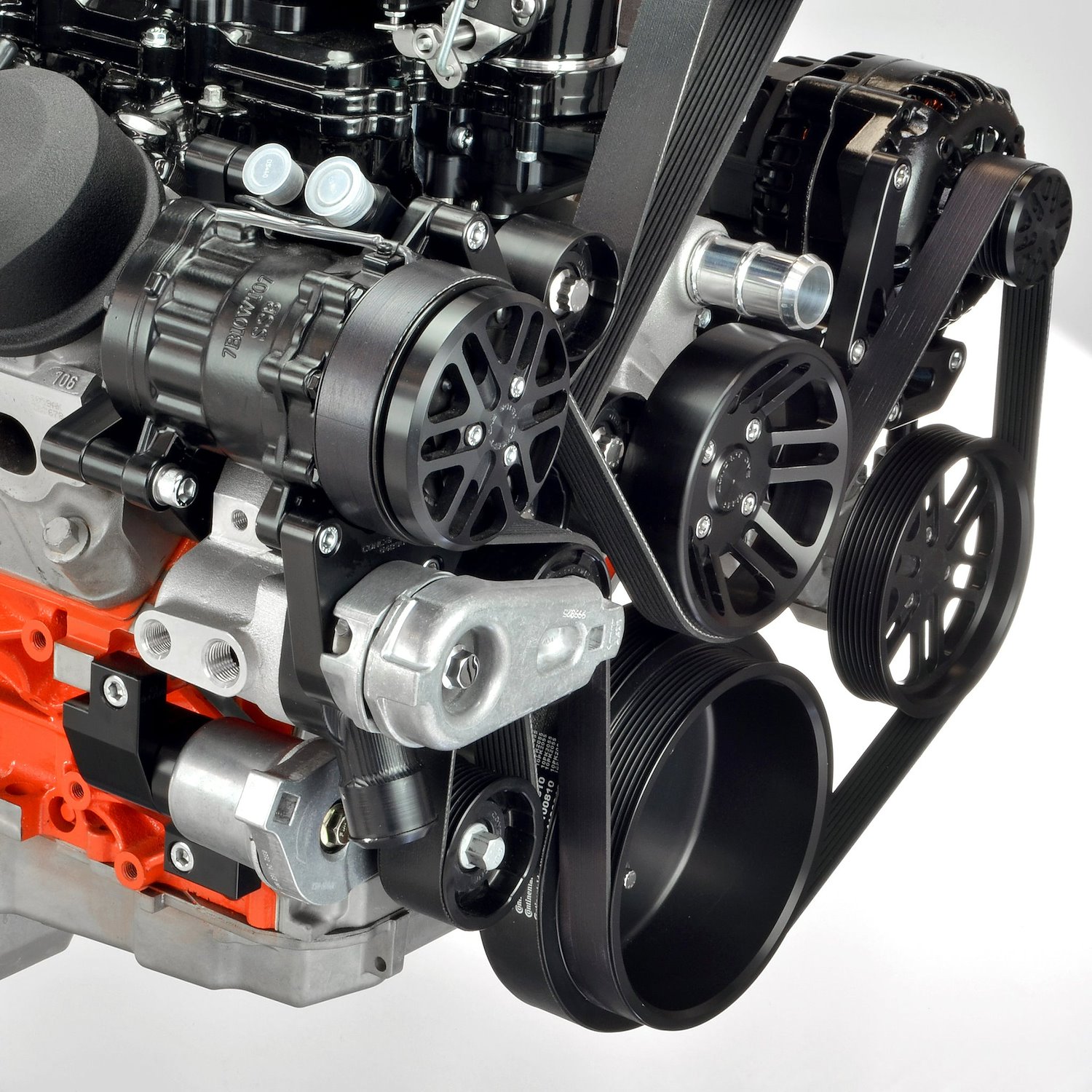

Concept ONE presents the Max10R Supercharger Pulley System, engineered for high-performance applications. These Max10R Kits feature a dedicated 10-rib belt system designed to handle 15+ pounds of boost, ensuring reliable supercharger operation. Complementing this is an 8-rib belt system that efficiently drives the remaining accessories. The 10-rib pulleys achieve approximately 255 degrees of wrap on the crank pulley and around 220 degrees on the supercharger pulley (varying by diameter), paired with a heavy-duty tensioner specifically designed for superchargers. Available kits for a range of superchargers, including LSA, ZL1, LS9, Magnuson, Whipple, and Edelbrock.

Part TypePulley Kit

Product LineConcept ONE Pulley Systems GM LS Max10R Supercharger Pulley Kits

BrandCONCEPT ONE PULLEY SYSTEMS

Package Width99.0

Weight99.0 PG

Part CategoryPerformance Parts

Pulley TypeSerpentine

Alternator Pulley IncludedYes

Pulley FinishBlack Anodized

Belt IncludedYes

Part FitmentSemi Universal

Pulley MaterialAluminum
