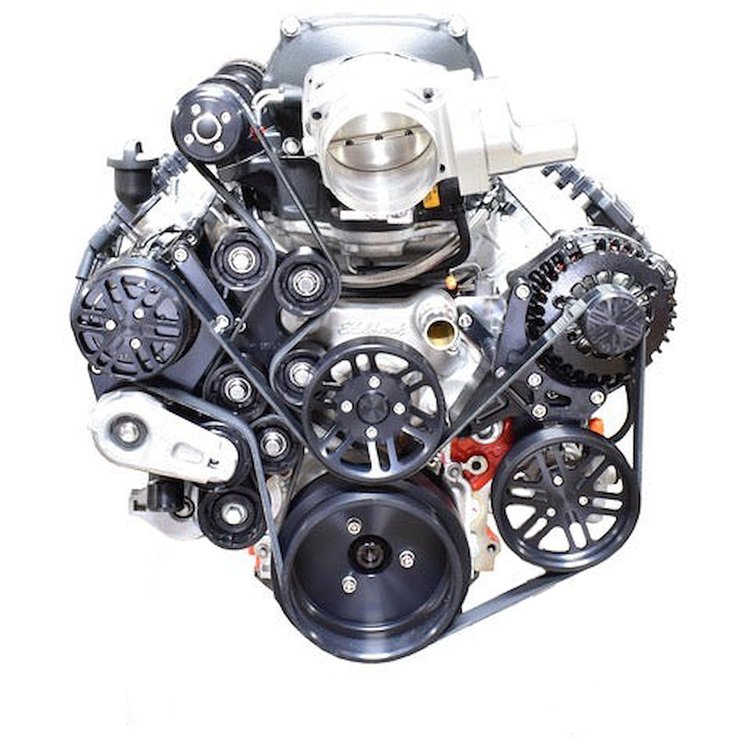

LSV10P-SC08 MAX10R Pulley Kit for Chevy LS w/ Magnuson TVS2650 Hot Rod Supercharger, w/ Alternator/AC/Power Steering [Polished]

Name: LSV10P-SC08 MAX10R Pulley Kit for Chevy LS w/ Magnuson TVS2650 Hot Rod Supercharger, w/ Alternator/AC/Power Steering [Polished]
Brand: CONCEPT ONE PULLEY SYSTEMS
SKU: 212-LSV10P-SC08
Price: 3775.50 USD
Availability: OutOfStock

^$3,775⁵⁰$4195.00You Save$419.50

Lowest Price Guarantee

GM LS w/ Magnuson TVS2650 Hot Rod Supercharger

MAX10R Pulley Kit

Chevy LS w/ Magnuson TVS2650 Hot Rod Supercharger

w/ Alternator/AC/Power Steering

Polished

Concept ONE Pulley Systems LSV10P-SC08 Features:

MAX10R is the ultimate front drive kit for your Magnuson TVS2650 Hot Rod supercharger. A dedicated 10-rib belt drives the supercharger directly from the crank pulley. All front-drive accessories are driven by a separate 8-rib pulley system. The bolt on system includes the following accessories: A Powermaster 1-wire alternator, Edelbrock water pump, SD-7 compact AC compressor, and Lares power steering pump with remote-mount billet reservoir. A Fluidampr harmonic balancer is included, as well. Heavy-duty billet brackets, pulleys, pulley covers, tensioner, idlers, belts, and hardware complete the system. Compatible with Magnuson TVS2650 Hot Rod supercharger part number 05-00-26-153, and corresponding Chevy LS3 / LSA engines. 8-rib components (pulleys, brackets etc.) are polished in this kit. 10-rib components are black anodized.

Fits Chevy LS with TVS2650 Hot Rod Supercharger, Mid-Mount Configuration
Premium Drive Components: Fluidampr, Powermaster, Edelbrock, and more, Heavy Duty Brackets

Performance and Aesthetics from Max10R Pulley Kits

Concept ONE presents the Max10R Supercharger Pulley System, engineered for high-performance applications. These Max10R Kits feature a dedicated 10-rib belt system designed to handle 15+ pounds of boost, ensuring reliable supercharger operation. Complementing this is an 8-rib belt system that efficiently drives the remaining accessories. The 10-rib pulleys achieve approximately 255 degrees of wrap on the crank pulley and around 220 degrees on the supercharger pulley (varying by diameter), paired with a heavy-duty tensioner specifically designed for superchargers. Available kits for a range of superchargers, including LSA, ZL1, LS9, Magnuson, Whipple, and Edelbrock.

Part TypePulley Kit

Product LineConcept ONE Pulley Systems GM LS Max10R Supercharger Pulley Kits

BrandCONCEPT ONE PULLEY SYSTEMS

Package Height9.0

Package Width19.0

Package Length25.0

Weight40.0 PG

Part CategoryPerformance Parts

Pulley TypeSerpentine

Air Conditioning Pulley IncludedYes

Power Steering Pulley IncludedYes

Alternator Pulley IncludedYes
