LSV10P-SC14 MAX10R Pulley Kit for Chevy LS w/ Whipple 2.9L Supercharger [Polished]

Name: LSV10P-SC14 MAX10R Pulley Kit for Chevy LS w/ Whipple 2.9L Supercharger [Polished]
Brand: CONCEPT ONE PULLEY SYSTEMS
SKU: 212-LSV10P-SC14
Price: 3775.50 USD
Availability: InStock

^$3,775⁵⁰$4195.00You Save$419.50

Ships on 09/17/2026

Lowest Price Guarantee

GM LS w/ Whipple 2.9L Supercharger

MAX10R Pulley Kit

Chevy LS w/ Whipple 2.9L Supercharger

Polished

Concept ONE Pulley Systems LSV10P-SC14 Features:

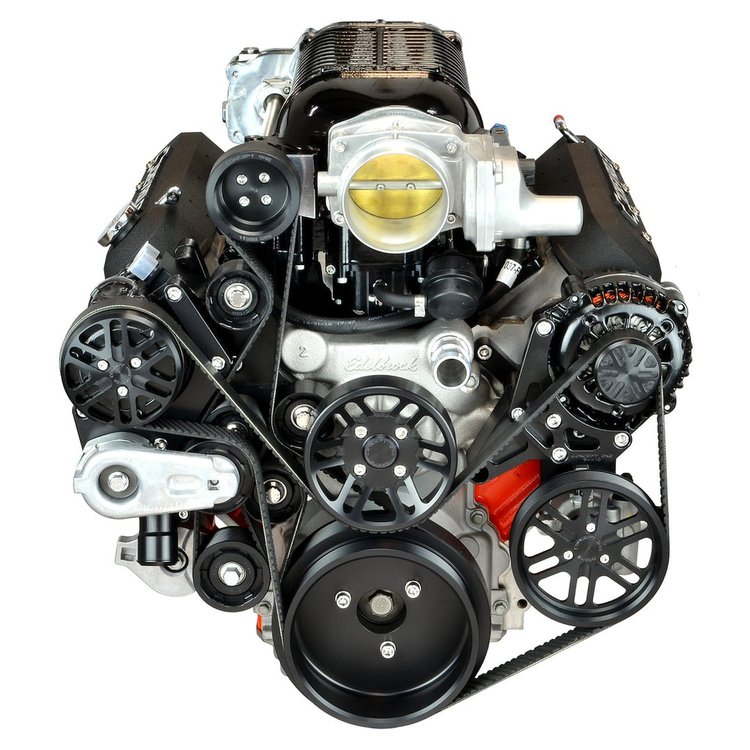

Drive your Whipple #WK-1810 2.9L supercharger (Corvette offset) and all front-drive accessories with this MAX10R pulley system for Chevy LS. A 10-rib belt drives the supercharger directly from the crankshaft, while an 8-rib belt drives the included Powermaster 1-wire alternator, Edelbrock water pump, SD-7 compact AC compressor, and Lares power steering pump with remote-mount billet reservoir. A Fluidampr harmonic balancer is included, along with heavy-duty billet brackets, pulleys, pulley covers, tensioner, idlers, belts, and hardware. Whipple #WK-1810 2.9L supercharger (Corvette offset) part number 01-23-60-171, and corresponding Chevy LS engines. 8-rib components (pulleys, brackets, etc.) are polished in this kit. 10-rib components are black anodized.

Fits Whipple WK-1810 Supercharger, Mid-Mount Configuration
Premium Drive Components: Fluidampr, Powermaster, Edelbrock, and more, Heavy Duty Brackets

Performance and Aesthetics from Max10R Pulley Kits

Concept ONE presents the Max10R Supercharger Pulley System, engineered for high-performance applications. These Max10R Kits feature a dedicated 10-rib belt system designed to handle 15+ pounds of boost, ensuring reliable supercharger operation. Complementing this is an 8-rib belt system that efficiently drives the remaining accessories. The 10-rib pulleys achieve approximately 255 degrees of wrap on the crank pulley and around 220 degrees on the supercharger pulley (varying by diameter), paired with a heavy-duty tensioner specifically designed for superchargers. Available kits for a range of superchargers, including LSA, ZL1, LS9, Magnuson, Whipple, and Edelbrock.

Part TypePulley Kit

Product LineConcept ONE Pulley Systems GM LS Max10R Supercharger Pulley Kits

BrandCONCEPT ONE PULLEY SYSTEMS

Package Height9.0

Package Width19.0

Package Length25.0

Weight40.0 PG

Part CategoryPerformance Parts

Pulley TypeSerpentine

Alternator Pulley IncludedYes

Pulley FinishPolished

Belt IncludedYes
