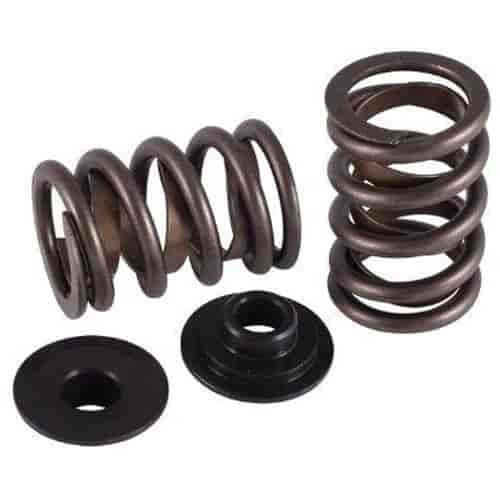

Valve Spring & Retainer Kit 1965-98 Big Block Chevy V8 396-502

Name: Valve Spring & Retainer Kit 1965-98 Big Block Chevy V8 396-502
Brand: CRANE CAMS
SKU: 271-13308-1
Price: 141.66 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Big Block Chevy

1965-98 Big Block Chevy V8 396-502

Set of 16

Valve Spring Spec Sheet:

Outside Diameter	1.500
Inside Diameter	1.086
Damper	Yes
Seat Press	121 lbs @ 1.800
Open Press	298 @ 1.300
Coil Bind.	1.130
Rate (lbs/in.)	354 lbs/in.
Max Net Lift	0.660
Installed Height	1.800

Crane Cams Valve Spring and Retainer Kits offer an easy, cost-saving method of insuring that your performance camshaft installation has the correct, matched valve springs and retainers needed to deliver maximum performance. These springs are designed to allow the increased RPM and more aggressive valve train operation that allows a Crane performance cam installation to wake up even stock engines.

Part TypeValve Spring Kit

Product LineCrane Cams Valve Springs & Retainer Kits

BrandCRANE CAMS

Package Height3.4

Package Width3.9

Package Length14.5

Weight5.18 PG

Vendor Part Number13308-1

Package Qty1

Package TypeEA
