Product Discontinued
CRANE CAMSPART NUMBER: 271-144316-1

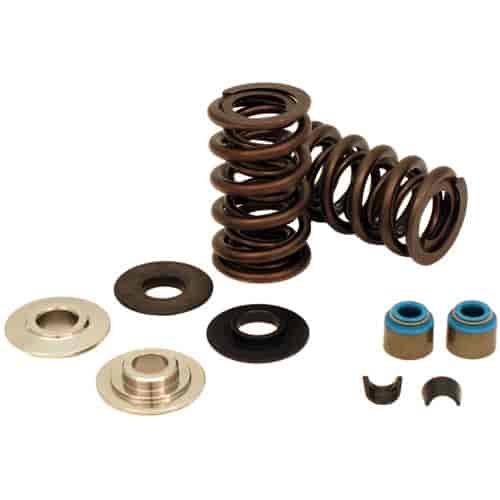

Valve Spring & Retainer Kit 1997-Up LS-Series Chevy V8 4.8L/5.3L/5.7L/6.0L/6.2L
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
LS-Series Chevy
- Valve Spring & Retainer Kit
- 1997-Up LS-Series Chevy V8 4.8L/5.3L/5.7L/6.0L/6.2L
- For Up to .680" Gross Valve Lift
Includes: - Spring Seats
- Valve Locks
- Valve Seals
Crane Cams now offers new "dual spring" high performance valve spring kits for the LS Series of engines designed to meet increased valve lift requirements. Precision designed and tested for today's modern camshaft lobes with increased lobe lift. Using high tensile chromium silicon vanadium alloy material, the springs are suitable for both 1.70:1 and 1.80:1 rocker arms with valve lifts up to .660".These newly designed springs have been extensively tested in LS engines on our in-house Spintron machines for many millions of cycles, with hydraulic and mechanical roller lifter Cams - and showed significant improvments in fatigue life and load loss over competitive springs.
These spring kits contain your choice of either steel retainers or lightweight Titanium retainers. Kits come complete with sixteen valve springs, retainers, lower spring seats, machined steel valve locks and Viton oil seals.Kit Includes: < - Spring Seats 271-144460-16
- Valve Seals 271-99818-16
- Valve Locks 271-99108-1Spring Specs:
- Outside Diameter: 1.297"
- Inside Diameter 1: 0.667"
- Inside Diameter 2: 0.917"
- Max Net Lift: 0.680"
- Seat Pressure: 148 lbs @ 1.800
- Open Pressure: 413 @ 1.150
- Spring Rate: 408 lbs/in.
- Coil Bind: 1.060"
Part TypeValve Spring Kit
BrandCRANE CAMS
Package Height3.4
Package Width3.5
Package Length13.4
Weight4.36 PG
Vendor Part NumberBBLV-144316-1
Package Qty1
Package TypeEA
