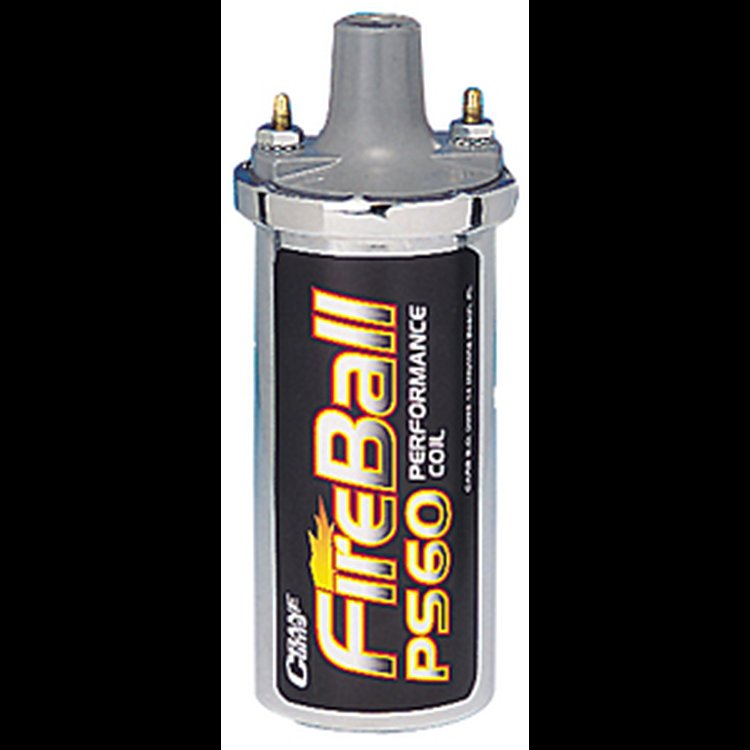

PS60 Performance Coil For Use w/Crane XR3000/HI-6S Ignitions

Name: PS60 Performance Coil For Use w/Crane XR3000/HI-6S Ignitions
Brand: CRANE CAMS
SKU: 271-730-0060
Price: 66.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Performance Coils

For Use w/Crane XR3000/HI-6S Ignitions
Nickel Plated Finish
CARB Approved E.O. D-225-60

Special low resistance windings. Output characteristics similar to Crane PS91 E-corecoil. Designed for extended use such as oval track, road racing, off road, and highRPM street engines. Compatible with all OE electronic ignitions. Recommended foruse with Crane XR3000, and HI-6S. Not for use with points. Nickel plated finish. Fitsmost OE brackets.

Features:

20-50% higher energy at spark plug than typical stockcoils. Gives improved starting, better throttle response,and more high end power. Tested to conform to SAE J973atest procedure.
Oil filled for maximum cooling of internal windings andhigh reliability.
Windings optimized with computer aided design formaximum spark gap current and high available voltage.
Alkyd coil towers. Alkyd coil towers eliminate failure fromflash over and carbon tracking.

50-State Street Legal: CARB Approved E.O. D-225-60

Coil Specifications
	PS20	PS40	PS50	PS60
Primary Resistance	1.4 ohms	1.4 ohms	.40 ohms	.40 ohms
Secondary resistance	5.2 kohms	5.2 kohms	3.8 kohms	3.8 kohms
Primary Inductance	7.5 mH	7.5 mH	5.3 mH	5.3 mH
Secondary Inductance	26 H	26 H	15 H	15 H
Leakage Inductance	1.3 mH	1.3 mH	.50 mH	.50 mH
Turns Ratio	60:1	60:1	54:1	54:1
Finish	Black	Nickel Plate	Black	Nickel Plate
Typical Dimensions:	2-1/8"D x 5-3/4"L, 1-3/4 lbs.
