Vehicle Info Needed

PERTRONIXPART NUMBER: 751-40111

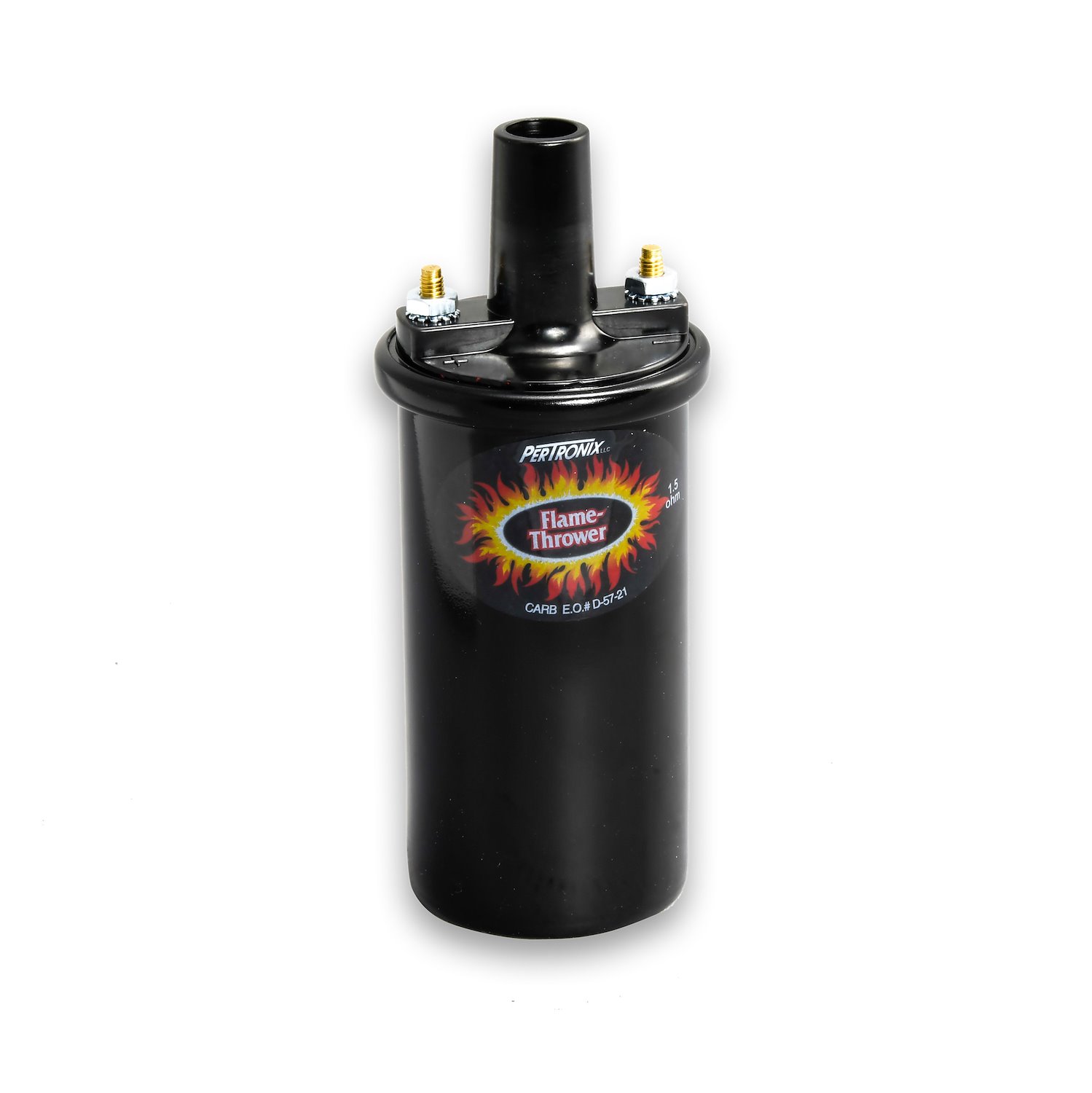

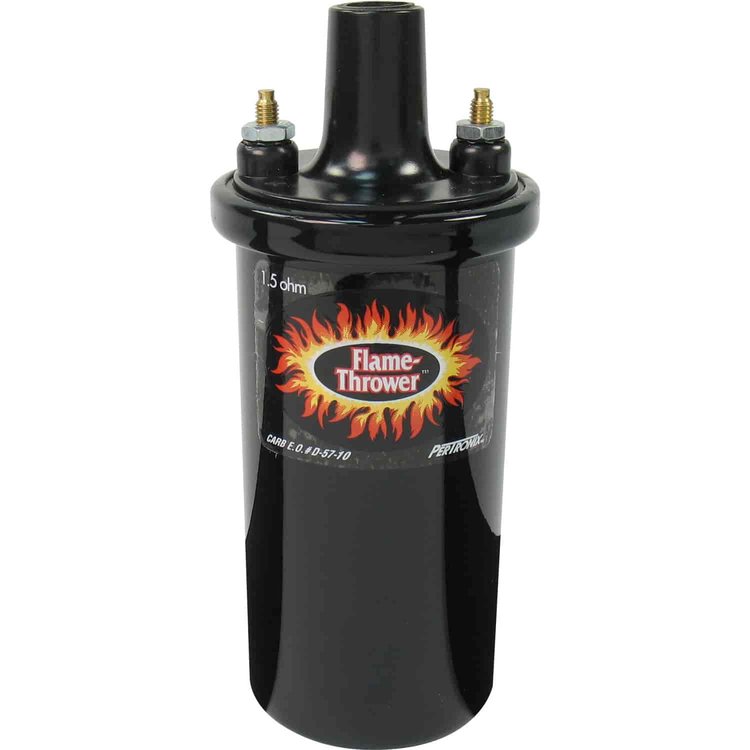

Flame-Thrower Coil Black

Name: Flame-Thrower Coil Black
Brand: PERTRONIX
SKU: 751-40111
Price: 65.88 USD
Availability: InStock

^$65⁸⁸

More than 10 available

Ships Today

Lowest Price Guarantee

Flame-Thrower Coils

1.5 ohm Primary Resistance

Black
Epoxy-Filled
40,000 Volt Output
1.5 Ohm Primary Resistance
Carb Approved D-57-21

Legal in all 50 states and Canada. (C.A.R.B. E.O. #D-57-21)

Part TypeIgnition Coil

BrandPERTRONIX

Package Height5.45 in (138.43 mm)

Package Width3.7

Package Length7.6

Weight1.7 PG

Part CategoryPerformance Parts

Carb Eo NumberD-57-21 (pdf)

Primary Resistance1.500 ohms

Coil Wire AttachmentFemale/Socket

Coil StyleCanister

QuantitySold individually

Ballast Resistor IncludedNo

Maximum Voltage40,000 V

Turns Ratio115:01:00

Peak Current7.2 amps

Coil ShapeRound

Title (Custom)PerTronix 40111 Flame-Thrower Coil 40,000 Volt 1.5 ohm Black Epoxy

Mounting Bracket IncludedNo

Inductance6.4 mH

Coil ColorBlack

Coil Wire IncludedNo

Spark Duration1.5 mS

Secondary Resistance10.60K ohms

Part FitmentSemi Universal

Coil Internal ConstructionEpoxy

Diameter2.155 in (54.737 mm)

Vendor Part Number40111

Package Qty1

Package TypeEA
