Lowest Price GuaranteePerformance Coils

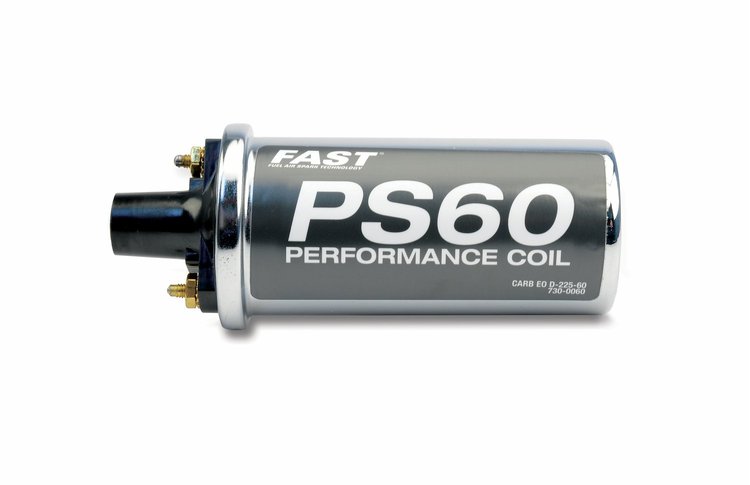

- PS60 Performance Coil
- For Use w/XR3000/HI-6S Ignitions
- Nickel Plated Finish
- CARB Approved E.O. D-225-60
Special low resistance windings. Output characteristics similar to PS91 E-corecoil. Designed for extended use such as oval track, road racing, off road, and highRPM street engines. Compatible with all OE electronic ignitions. Recommended foruse with XR3000, and HI-6S. Not for use with points. Nickel plated finish. Fitsmost OE brackets.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
FAST's Canister-style, oil-filled performance and replacement coils are designed for both performance and universal replacement applications. These coils offer improved starting, better throttle response, and more high end power. The oil filled canister delivers maximum cooling of internal windings and high reliability. Alkyd coil towers eliminate failure from flash over and carbon tracking.
Features:
- 20-50% higher energy at spark plug than typical stock coils
- Oil filled for maximum cooling and high reliability
- Maximum spark gap current and high available voltage
- 50-State Street Legal: CARB Approved E.O. D-225-60
Show More
| PS20 | PS40 | PS50 | PS60 | |
| Primary Resistance | 1.4 ohms | 1.4 ohms | .40 ohms | .40 ohms |
| Secondary resistance | 5.2 kohms | 5.2 kohms | 3.8 kohms | 3.8 kohms |
| Primary Inductance | 7.5 mH | 7.5 mH | 5.3 mH | 5.3 mH |
| Secondary Inductance | 26 H | 26 H | 15 H | 15 H |
| Leakage Inductance | 1.3 mH | 1.3 mH | .50 mH | .50 mH |
| Turns Ratio | 60:1 | 60:1 | 54:1 | 54:1 |
| Finish | Black | Nickel Plate | Black | Nickel Plate |
| Typical Dimensions: | ||||
Part TypeIgnition Coil
Product LineFAST Canister-Style Coils
BrandFAST
Package Height2.6
Package Width3.3
Package Length6.7
Weight1.75 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number730-0060
Package Qty1
Package TypeEA
