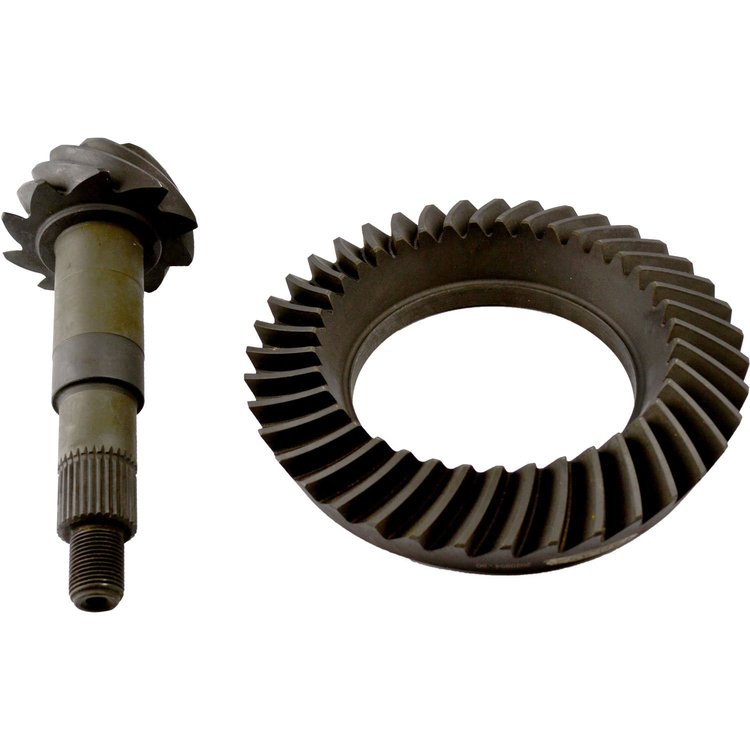

GM 10-Bolt 8.5" Ring & Pinion 3.90 Ratio
InfoVehicle Info Needed
DANA SPICERPART NUMBER: 094-2020954

GM 10-Bolt 8.5" Ring & Pinion 3.90 Ratio

$34650
ShippingShips on 12/01/2026
Lowest PriceLowest Price Guarantee

SVL - GM 10-Bolt 8.5"
    GM 10-Bolt 8.5" Ring & Pinion
  • 3.90 Ratio

  • When replacing a stock 2.56 and numerically lower ratio, the carrier must be replaced with a carrier of 2.73 or higher
  • Ring Gear Diameter: 8.5"
  • Ring Gear Bolts: (10) 7/16"-20 Left Hand Threads
  • Cover Bolts: 10
  • Pinion Spline: 1.625" / 30 Spline

    Fits:

  • 1979-'81 Camaro
  • 1970-'96 Chevelle
  • 1971-'75 Nova
  • 1971-'77 El Camino
  • 1970-'81 GTO/Firebird/Trans Am
  • 1991-'96 Road Master
  • 1971-'83 Monte Carlo
  • 1972-'81 Z-28
  • 1977-'91 Blazer (front/rear)
  • 1978-Up C10/C15/G10/G15/G20/G25
  • 1977-Up GM 1/2 Ton (rear)
  • 1977-91 GM 1/2 Ton (front)
  • 1977-99 GM 3/4 Ton

    Spicer offers two ring and pinion types. Spicer Premium Ring & Pinion Gears are the same as used in OE applications. Process-controlled machining, heat treatment, face hobbing, shot peening, and lapping operations provide a smoother, quieter ride and years of trouble-free service. Spicer SVL Ring & Pinion Gears deliver quality and performance that meets or exceeds most popular aftermarket products. SVL Gears are available for Dana, Chrysler, GM, and Ford axles.

Part TypeRing and Pinion
Product LineSpicer Ring & Pinion Sets
BrandDANA SPICER
Package Height5.3
Package Width11.5
Package Length15.5
Weight18.72 PG
Part CategoryReplacement Parts
Part FitmentSemi Universal
Package Qty1
Package TypeEA
