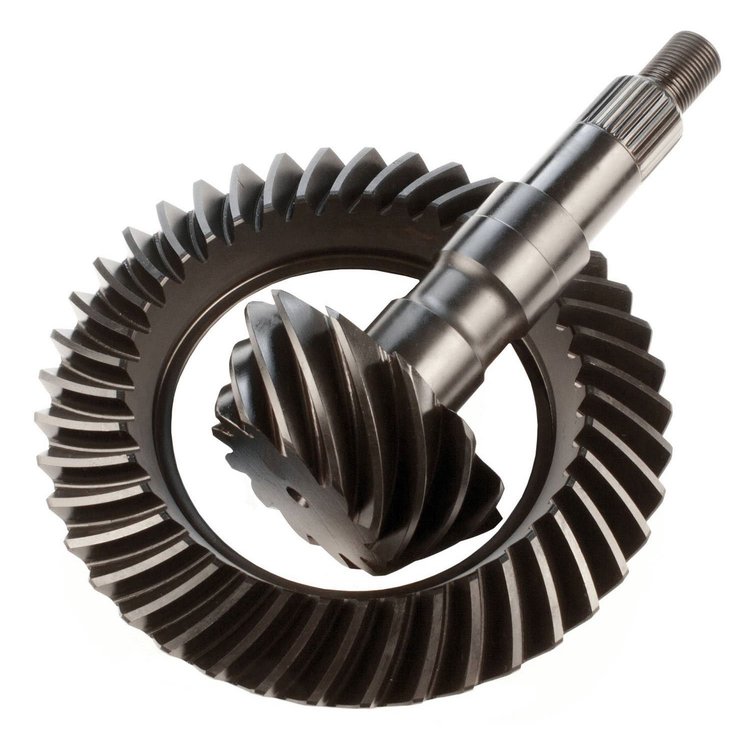

RICHMOND GEARPART NUMBER: 836-49-0034-1
GM Ring & Pinion Gear Set Ratio: 3.90
$32020
GM 8.5"Fits 2.73 and Higher Carrier Pinion Diameter: 1.626" 30 Spline
- GM Ring & Pinion Gear Set
- Ratio: 3.90
- Teeth: 39-10
- Front: Use Installation Kit #836-83-1020-1
- Rear: Use Installation Kit #836-83-1021-1
- 1973-87 Truck: Use Installation Kit #836-83-1021-M or #836-83-1021-TE
- Does not work with pinion-mounted ABS sensor in 1990-96 Impala/Impala SS/Caprice
- When replacing a stock 2.56 or lower ratio, the carrier must be replaced with a 2.73 or higher carrier
Richmond Gear is the leading manufacturer of professional quality, high performance ring and pinion sets. The superior quality of these gear sets is the result of years of racing development, outstanding design, and state-of-the-art manufacturing methods. 10 bolt street gears are designed to withstand the rigors of everyday driving, as well as a weekend at the track. Gears available for nearly all popular domestic applications.
Choose The Gear Ratio That Is Best For Your VehiclePart TypeRing and Pinion
Product LineRichmond Gear GM 10-Bolt Ring & Pinion Sets
BrandRICHMOND GEAR
Package Height5.2
Package Width10.9
Package Length15.0
Weight17.95 PG
Part CategoryPerformance Parts
Ring Gear RotationStandard
Pinion Gear Teeth10
Ring Gear Tooth Quantity39
Carrier Series3
QuantitySold as a set
Differential Carrier Break2.76 and Higher
Cover Bolt Quantity10
Pinion Spline Count30
Ring Gear Material8620 Steel
Ring Gear Diameter8.5 in (215.9 mm)
Ring And Pinion Ratio3.90:1
Pinion Shaft Diameter1.626 in (41.3 mm)
Installation Kit IncludedNo
Pinion Gear Tooth Quantity10
Axle TypeGM 8.5 in.
Ring Gear Bolts10
Cover Bolts10
Ring Gear Teeth39
Ring Gear Bolt Quantity10
Part FitmentSemi Universal
Vendor Part Number49-0034-1
Package Qty1
Package TypeEA
