Made in USA
Universal Joints
InfoVehicle Info Needed
DANA SPICERPART NUMBER: 094-5-1350X

Universal Joints

$2892
More than 10 available
ShippingShips on Nov 02, 2026
Lowest PriceLowest Price Guarantee

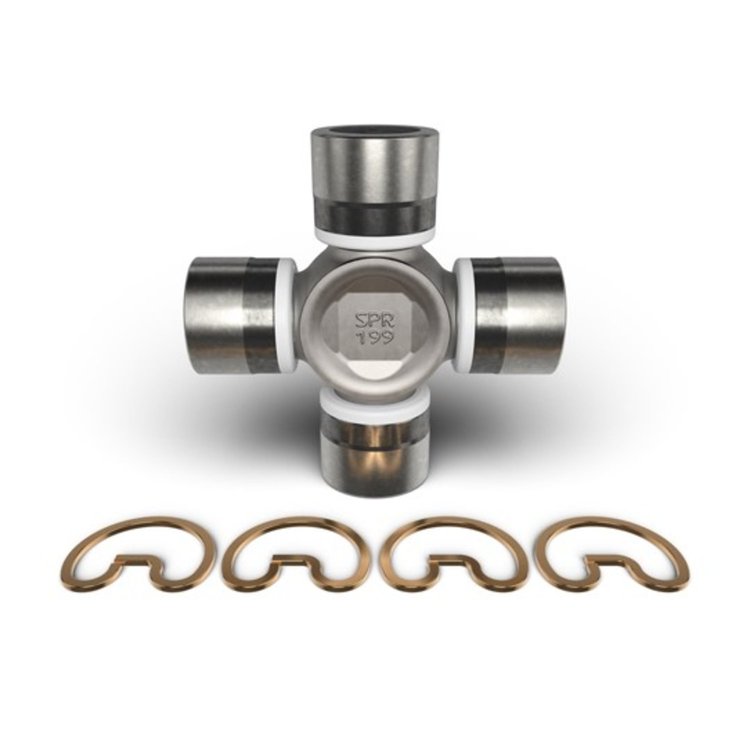

Non-Greaseable U-Joints
    Non-Greaseable Life Series U-Joint
  • 1350 Series
  • Outside Snap Rings
  • Cap OD: 1.188''
  • Length: 3.625''

    Material; Steel, Bearing Cap Diameter (1); 1.188, OEM Mfg; Spicer, OEM Series; 1350/SPL30, Type; OSR Style, Bearing Cap Diameter (2); 1.188, Snap Ring (1); 3.625, Snap Ring (2); 3.625, Bearing Cap Type; Round, Snap Ring Included; Y

    Optimize the Life of Your Vehicle with Spicer U-Joints

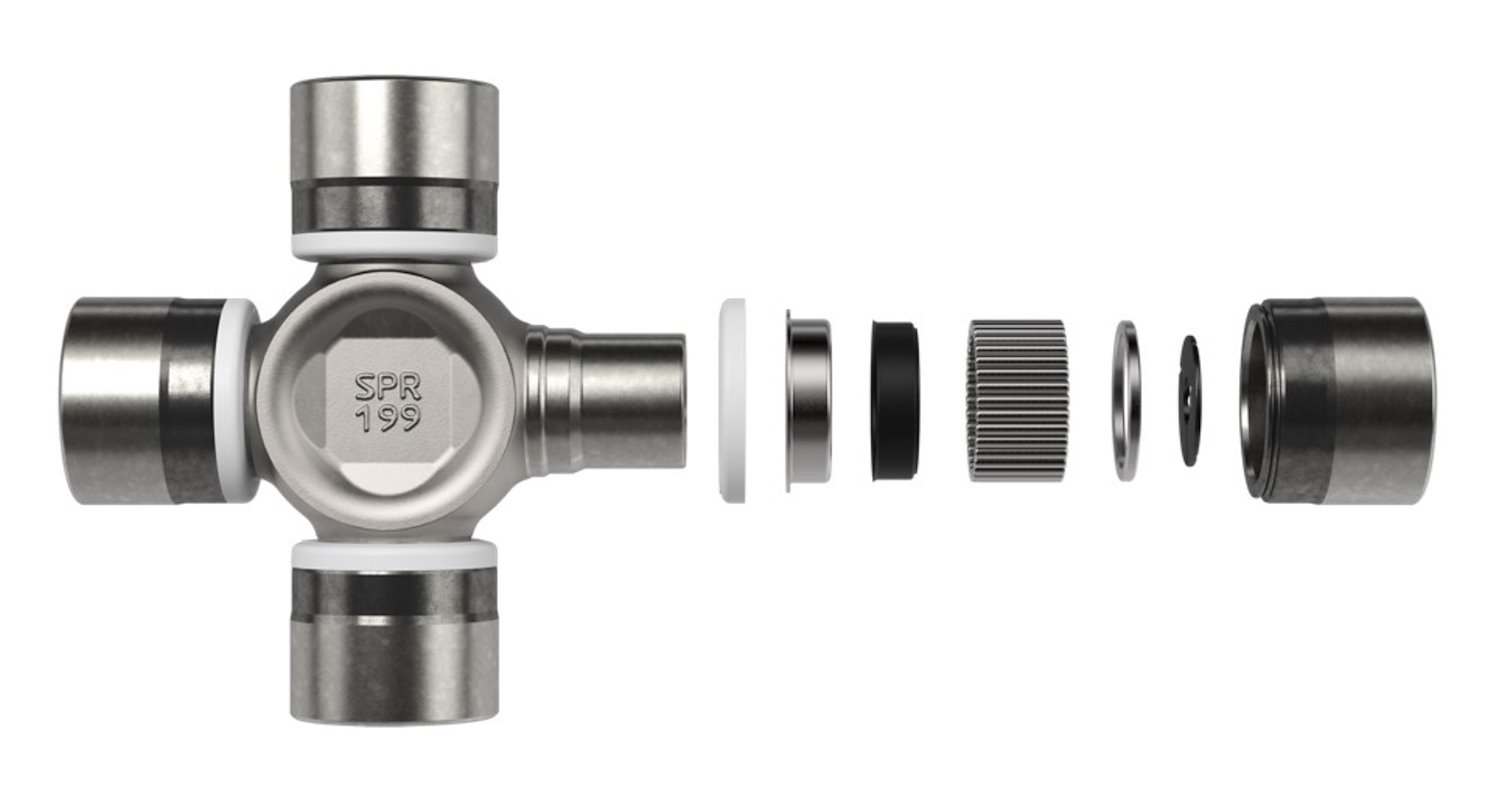

    Available greaseable or non-greaseable, Life Series U-Joints have cold-formed steel journal crosses for maximum strength and triple-lip seals with an external guard to handle harsh conditions. Non-greaseable U-joints are prefilled with synthetic lithium grease to reduce friction and raise temperature resistance, plus have ample grease reservoirs in each trunnion to ensure effective lubrication. Non-greaseable U-joints are stronger than greaseable units because they don't have grease passages. U-joints are sold each or in non-greaseable full packs. Spicer also separately offers synthetic grease (specially formulated for their U-joints but suitable for all driveline components), replacement U-bolts, and U-joint straps.

Part TypeUniversal Joint
Product LineSpicer Life Series U-Joints, Packs, Grease & Hardware
BrandDANA SPICER
Package Height1.6
Package Width4.1
Package Length4.5
Weight1.67 PG
Part CategoryReplacement Parts
G1 Snap Ring Dim. Over Caps (Osr)3.625
Body TypeVarious - Application Specific
Outside Snap Ring Style Dim. Over Caps 13.625 in (92.1 mm)
D2 Bearing Cap Dia. (Osr)1.188
PositionVarious - Application Specific
U-Joint Series1350
D1 Bearing Cap Dia. (Osr)1.188
Retention MethodOutside Snap Ring
G2 Snap Ring Dim. Over Caps (Osr)3.625
Greasable (Y/N)No
Outside/Inside Snap Rings (Osr) (Isr)OSR
Outside Snap Ring Style Bearing Cap Daimeter 21.188 in (30.2 mm)
Outside Snap Ring Style Bearing Cap Daimeter 11.188 in (30.2 mm)
Part FitmentDirect Fit
Outside Snap Ring Style - Dim. Over Caps 23.625 in (92.1 mm)
Vendor Part Number5-1350X
Package Qty1
Package TypeEA
