Vehicle Info NeededDANA SPICERPART NUMBER: 094-5-188X

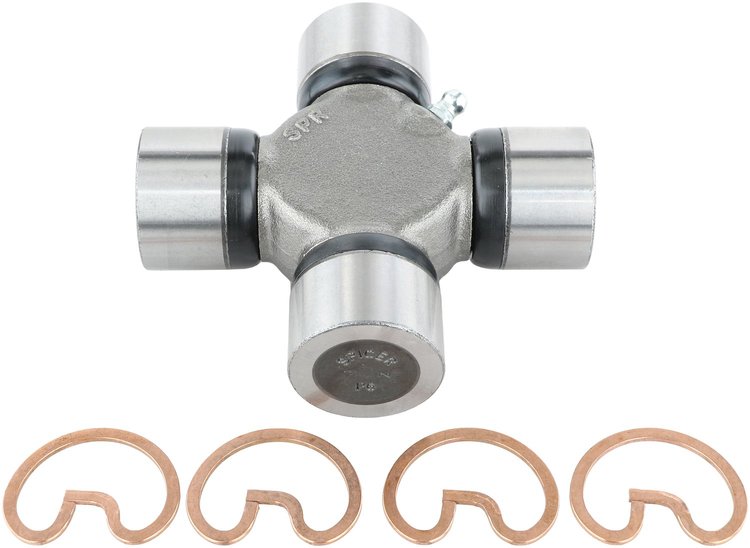

Greaseable Service U-Joint 1480 Series
$3562
Ships on Sep 14, 2026
Lowest Price GuaranteeService Replacement U-Joints
Greaseable Service U-Joint1480 Series Outside Snap Rings Cap OD: 1.375'' Length: 4.188''
Spicer 094-5-188X Features:
- Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.
- Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.
- Multi-lip seal keeps grease in and contaminants out| and gets maximum retention in a wider range of environments.
- Thrust washers eliminate metal-to-metal contact| prevent wear and lower the overall operating temperature.
Part TypeUniversal Joint
BrandDANA SPICER
Package Height2.8
Package Width4.2
Package Length5.7
Weight2.65 PG
Part CategoryReplacement Parts
G1 Snap Ring Dim. Over Caps (Osr)4.188
Body TypeVarious - Application Specific
Outside Snap Ring Style Dim. Over Caps 14.188 in (106.4 mm)
D2 Bearing Cap Dia. (Osr)1.375
PositionVarious - Application Specific
U-Joint Series1480
D1 Bearing Cap Dia. (Osr)1.375
Retention MethodOutside Snap Ring
G2 Snap Ring Dim. Over Caps (Osr)4.188
Greasable (Y/N)Yes
Outside/Inside Snap Rings (Osr) (Isr)OSR
Outside Snap Ring Style Bearing Cap Daimeter 21.375 in (34.9 mm)
Outside Snap Ring Style Bearing Cap Daimeter 11.375 in (34.9 mm)
Part FitmentDirect Fit
Outside Snap Ring Style - Dim. Over Caps 24.188 in (106.4 mm)
Vendor Part Number5-188X
Package Qty1
Package TypeEA
