Vehicle Info NeededDANA SPICERPART NUMBER: 094-5-213X
Universal Joints
$2483
5 left in stock
Ships on Nov 02, 2026
Lowest Price Guarantee

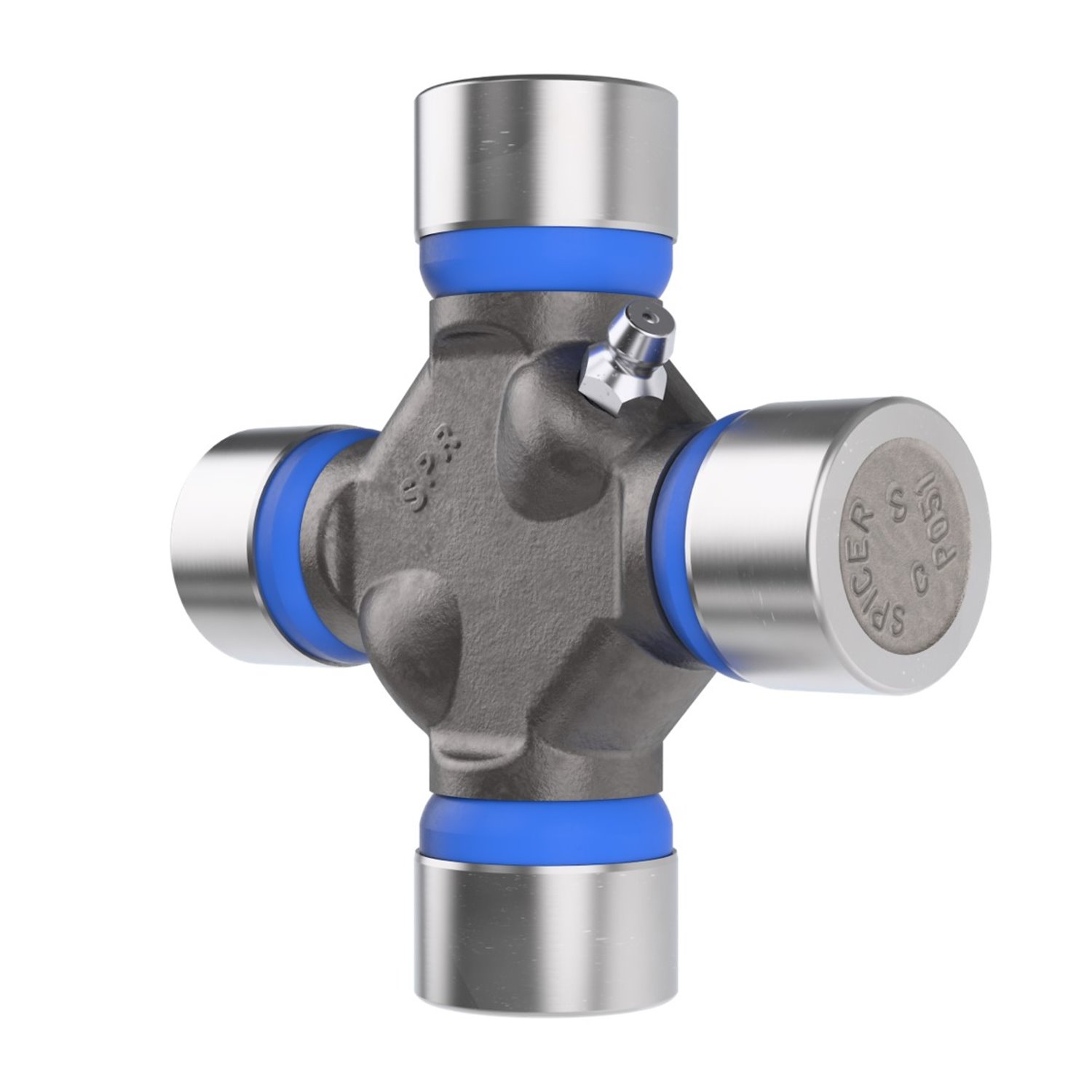

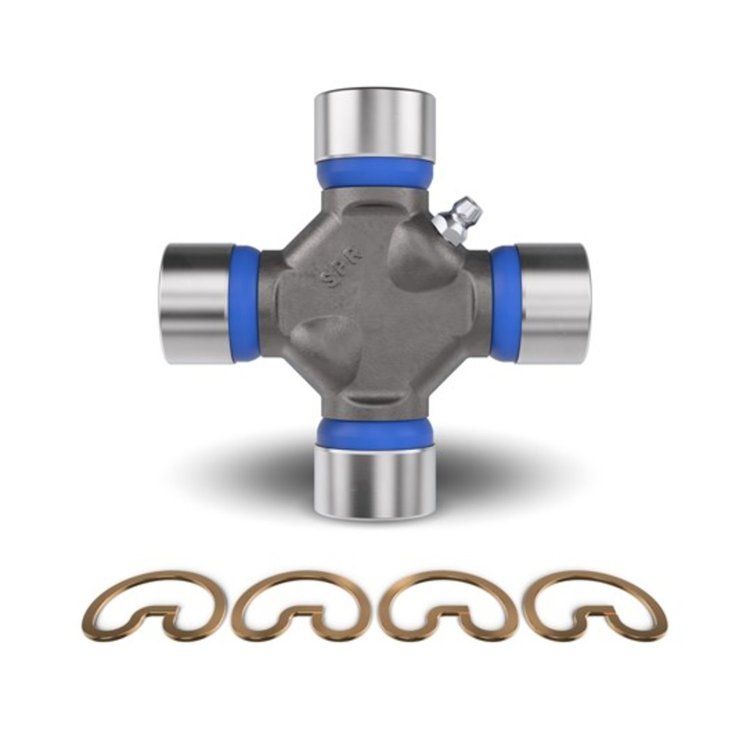

Service Replacement U-Joints
- Greaseable Service U-Joint
- 1330 Series
- Outside Snap Rings
- Cap OD: 1.062''
- Length: 3.625''
Material; Steel, Bearing Cap Diameter (1); 1.062, OEM Mfg; Spicer, OEM Series; 1330, Type; OSR Style, Bearing Cap Diameter (2); 1.062, Snap Ring (1); 3.625, Snap Ring (2); 3.625, Bearing Cap Type; Round, Snap Ring Included; Y
Genuine Spicer Parts Meet Strict Dana Standards
Spicer's OE-quality Service Replacement U-Joints have journal crosses made from heat-treated alloy forgings for lasting performance. Case-hardened bearing cups add strength; nitrile rubber seals maximize grease retention and minimize contaminants. SVL U-Joints also deliver reliable performance but on a budget. Backed by Dana Spicer, SVL products are ideal for vehicle maintenance/repair. Spicer also separately offers synthetic grease (specially formulated for their U-joints but suitable for all driveline components), replacement U-bolts, and U-joint straps.
Part TypeUniversal Joint
Product LineSpicer Service Replacement U-Joints, Grease & Hardware
BrandDANA SPICER
Package Height1.3
Package Width3.6
Package Length3.6
Weight1.35 PG
Part CategoryReplacement Parts
G1 Snap Ring Dim. Over Caps (Osr)3.625
Body TypeVarious - Application Specific
Outside Snap Ring Style Dim. Over Caps 13.625 in (92.1 mm)
D2 Bearing Cap Dia. (Osr)1.062
PositionVarious - Application Specific
U-Joint Series1330
D1 Bearing Cap Dia. (Osr)1.062
Retention MethodOutside Snap Ring
G2 Snap Ring Dim. Over Caps (Osr)3.625
Greasable (Y/N)Yes
Outside/Inside Snap Rings (Osr) (Isr)OSR
Number Of DoorsVarious Application Specific
Outside Snap Ring Style Bearing Cap Daimeter 21.062 in (27 mm)
Bed LengthVarious - Application Specific
Outside Snap Ring Style Bearing Cap Daimeter 11.062 in (27 mm)
Part FitmentDirect Fit
Outside Snap Ring Style - Dim. Over Caps 23.625 in (92.1 mm)
Vendor Part Number5-213X
Package Qty1
Package TypeEA
