Vehicle Info NeededDANA SPICERPART NUMBER: 094-5-3206X

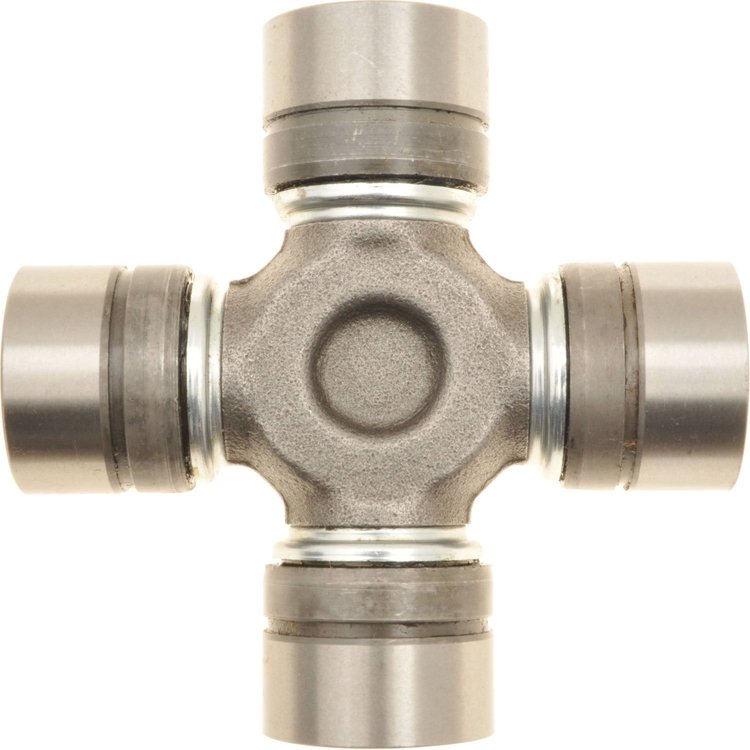

Non-Greaseable Service U-Joint AAM 1485 Series
$8790
More than 10 available
Ships on Nov 02, 2026
Lowest Price GuaranteeService Replacement U-Joints
Non-Greaseable Service U-JointAAM 1485 Series Outside Snap Rings Cap OD: 1.375'' Length: 4.178''
Spicer 094-5-3206X Features:
- Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.
- Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.
- Multi-lip seal keeps grease in and contaminants out| and gets maximum retention in a wider range of environments.
- Thrust washers eliminate metal-to-metal contact| prevent wear and lower the overall operating temperature.
Genuine Spicer Parts Meet Strict Dana Standards
Spicer's OE-quality Service Replacement U-Joints have journal crosses made from heat-treated alloy forgings for lasting performance. Case-hardened bearing cups add strength; nitrile rubber seals maximize grease retention and minimize contaminants. SVL U-Joints also deliver reliable performance but on a budget. Backed by Dana Spicer, SVL products are ideal for vehicle maintenance/repair. Spicer also separately offers synthetic grease (specially formulated for their U-joints but suitable for all driveline components), replacement U-bolts, and U-joint straps.
Part TypeUniversal Joint
Product LineSpicer Service Replacement U-Joints, Grease & Hardware
BrandDANA SPICER
Package Height2.4
Package Width5.6
Package Length6.0
Weight2.43 PG
Part CategoryReplacement Parts
G1 Snap Ring Dim. Over Caps (Osr)4.178
Body TypeVarious - Application Specific
Outside Snap Ring Style Dim. Over Caps 14.178 in (106.1 mm)
D2 Bearing Cap Dia. (Osr)1.375
PositionVarious - Application Specific
U-Joint Series1485 AAM
D1 Bearing Cap Dia. (Osr)1.375
Retention MethodOutside Snap Ring
G2 Snap Ring Dim. Over Caps (Osr)4.178
Greasable (Y/N)No
Outside/Inside Snap Rings (Osr) (Isr)OSR
Outside Snap Ring Style Bearing Cap Daimeter 21.375 in (34.9 mm)
Outside Snap Ring Style Bearing Cap Daimeter 11.375 in (34.9 mm)
Part FitmentDirect Fit
Outside Snap Ring Style - Dim. Over Caps 24.178 in (106.1 mm)
Vendor Part Number5-3206X
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
