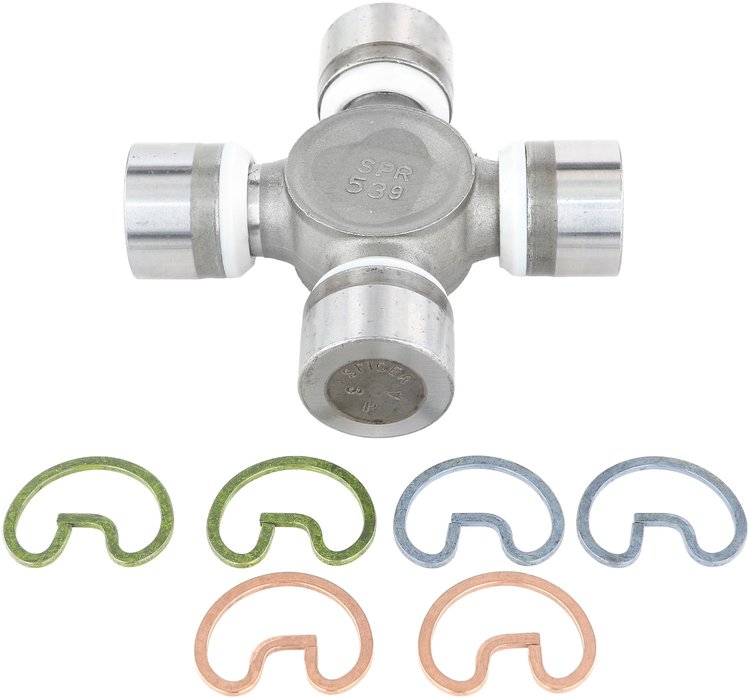

Universal Joints

Name: Universal Joints
Brand: DANA SPICER
SKU: 094-5-7438X
Price: 34.54 USD
Availability: InStock

^$34⁵⁴

Ships on 09/14/2026

Lowest Price Guarantee

Non-Greaseable U-Joints

1330 Conversion Series
Outside Snap Rings
Cap OD: 1.062''/1.125''
Length: 3.625''

Material; Steel, Bearing Cap Diameter (1); 1.062, OEM Mfg; Spicer, OEM Series; 1330SPEC/SPL25, Type; OSR Style, Bearing Cap Diameter (2); 1.125, Snap Ring (1); 3.625, Snap Ring (2); 3.625, Bearing Cap Type; Round, Snap Ring Included; Y

Part TypeUniversal Joint

BrandDANA SPICER

Package Height1.5

Package Width4.0

Package Length4.4

Weight1.34 PG

Part CategoryReplacement Parts

G1 Snap Ring Dim. Over Caps (Osr)3.625

Body TypeStandard Cab Pickup

Outside Snap Ring Style Dim. Over Caps 13.625 in (92.1 mm)

D2 Bearing Cap Dia. (Osr)1.125

PositionRear Shaft Front and Rear Joints

U-Joint Series1330 SPEC

D1 Bearing Cap Dia. (Osr)1.062

Retention MethodOutside Snap Ring/Inside Snap Ring

G2 Snap Ring Dim. Over Caps (Osr)3.625

Greasable (Y/N)No

Outside/Inside Snap Rings (Osr) (Isr)OSR

Outside Snap Ring Style Bearing Cap Daimeter 21.125 in (28.6 mm)

Outside Snap Ring Style Bearing Cap Daimeter 11.062 in (27 mm)

Outside Snap Ring Style - Dim. Over Caps 23.625 in (92.1 mm)

Vendor Part Number5-7438X

Package Qty1

Package TypeEA

No Questions

No Reviews

Some parts are not legal for use in California or other states with similar laws / regulations

⚠️ Warning
