Universal Joints
InfoVehicle Info Needed

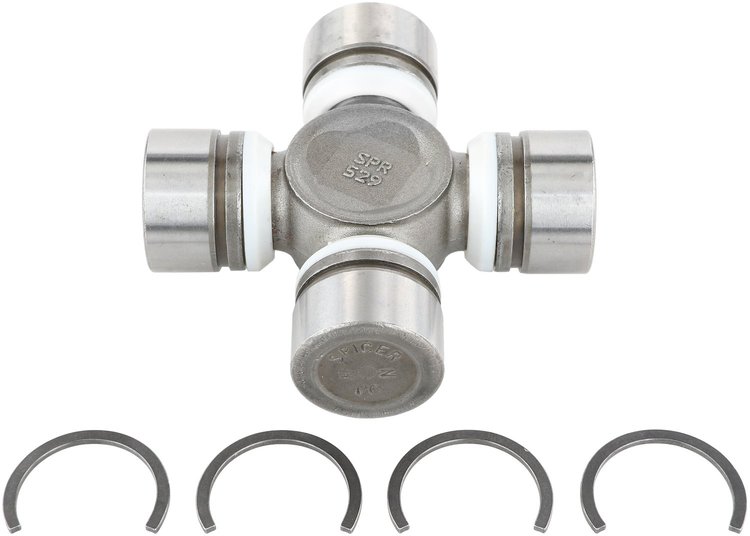

DANA SPICERPART NUMBER: 094-5-789X

Universal Joints

$2767$34.66You Save$6.99
6 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Non-Greaseable U-Joints
    Non-Greaseable Life Series U-Joint
  • Detroit 7260 Series
  • Inside Snap Rings
  • Cap OD: 1.078''
  • Length: 2.125''

    OEM Mfg; Detroit, OEM Series; 7260, Type; ISR Style, Bearing Cap Diameter (2); 1.078, Snap Ring (1); 2.125, Snap Ring (2); 2.125, Bearing Cap Type; Round, Snap Ring Included; Y, Snap Ring Type; Internal, Greaseable; N

    Optimize the Life of Your Vehicle with Spicer U-Joints

    Available greaseable or non-greaseable, Life Series U-Joints have cold-formed steel journal crosses for maximum strength and triple-lip seals with an external guard to handle harsh conditions. Non-greaseable U-joints are prefilled with synthetic lithium grease to reduce friction and raise temperature resistance, plus have ample grease reservoirs in each trunnion to ensure effective lubrication. Non-greaseable U-joints are stronger than greaseable units because they don't have grease passages. U-joints are sold each or in non-greaseable full packs. Spicer also separately offers synthetic grease (specially formulated for their U-joints but suitable for all driveline components), replacement U-bolts, and U-joint straps.

Part TypeUniversal Joint
Product LineSpicer Life Series U-Joints, Packs, Grease & Hardware
BrandDANA SPICER
Package Height1.4
Package Width3.6
Package Length3.7
Weight1.13 PG
Part CategoryReplacement Parts
Inside Snap Ring Style Bearing Cap Daimeter 11.075 in (27.305 mm)
Inside Snap Ring Style Bearing Cap Daimeter 21.075 in (27.305 mm)
PositionVarious - Application Specific
K2 Snap Ring Dim. (Between Rings) (Isr)2.125
Inside Snap Ring Style - Outside Of Groove 1 Dim2.125 in (53.975 mm)
U-Joint Series7260
Retention MethodInside Snap Ring
D2 Bearing Cap Dia. (Isr)1.078
Inside Snap Ring Style - Outside Of Groove 2 Dim2.125 in (53.975 mm)
D1 Bearing Cap Dia. (Isr)1.078
Greasable (Y/N)No
K1 Snap Ring Dim. (Between Rings) (Isr)2.125
Outside/Inside Snap Rings (Osr) (Isr)ISR
Part FitmentDirect Fit
Vendor Part Number5-789X
Package Qty1
Package TypeEA
