Vehicle Info NeededDANA SPICERPART NUMBER: 094-5-793X

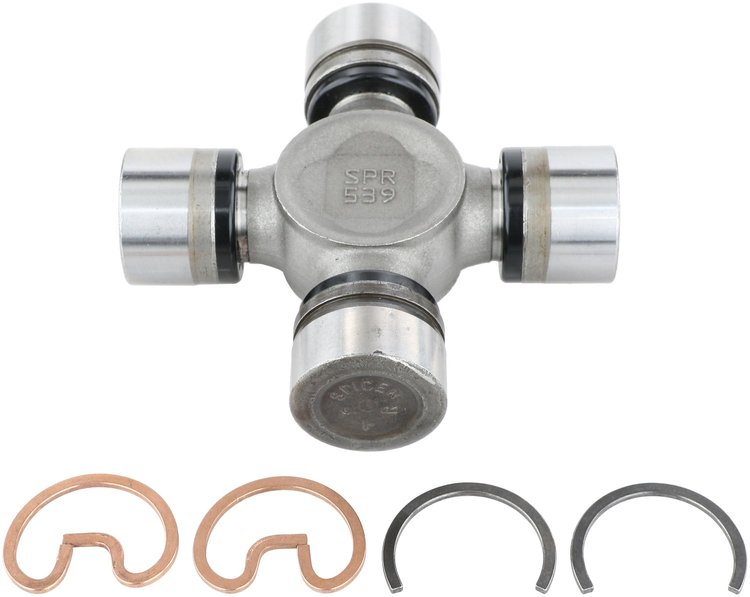

Universal Joints
$2654
1 left in stock
Ships Tomorrow
Lowest Price GuaranteeNon-Greaseable U-Joints
- Non-Greaseable Life Series U-Joint
- 1330 to 3R Conversion Series
- Outside Snap Rings (1330) to Inside Rings (3R)
- Cap OD: 1.062''/1.125''
- Length: 3.625''/2.556''
Material; Steel, Bearing Cap Diameter (1); 1.125, OEM Mfg; Spicer, OEM Series; 1330/S44, Type; OSR/ISR Style, Bearing Cap Diameter (2); 1.062, Snap Ring (1); 2.556, Snap Ring (2); 3.625, Bearing Cap Type; Round, Snap Ring Included; Y
Part TypeUniversal Joint
BrandDANA SPICER
Package Height1.3
Package Width3.5
Package Length3.6
Weight1.32 PG
Part CategoryReplacement Parts
Inside Snap Ring Style Bearing Cap Daimeter 11.125 in (28.575 mm)
G1 Snap Ring Dim. Over Caps (Osr)3.625
Body TypeVarious - Application Specific
Outside Snap Ring Style Dim. Over Caps 13.625 in (92.1 mm)
PositionVarious - Application Specific
Inside Snap Ring Style - Outside Of Groove 1 Dim2.556 in (64.922 mm)
U-Joint Series1330/3R(S44)
D1 Bearing Cap Dia. (Osr)1.062
Retention MethodOutside Snap Ring/Inside Snap Ring
D1 Bearing Cap Dia. (Isr)1.125
Greasable (Y/N)No
K1 Snap Ring Dim. (Between Rings) (Isr)2.556
Outside/Inside Snap Rings (Osr) (Isr)OSR/ISR
Bed LengthVarious - Application Specific
Outside Snap Ring Style Bearing Cap Daimeter 11.062 in (27 mm)
Part FitmentDirect Fit
Vendor Part Number5-793X
Package Qty1
Package TypeEA
