DANA SPICERPART NUMBER: 094-5-811X

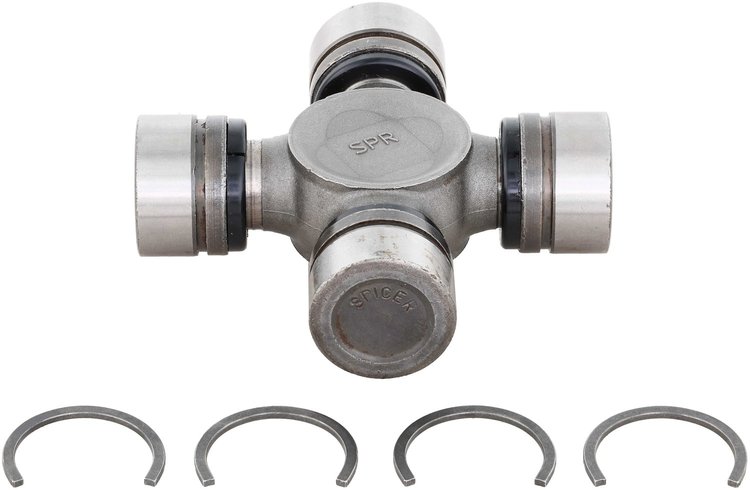

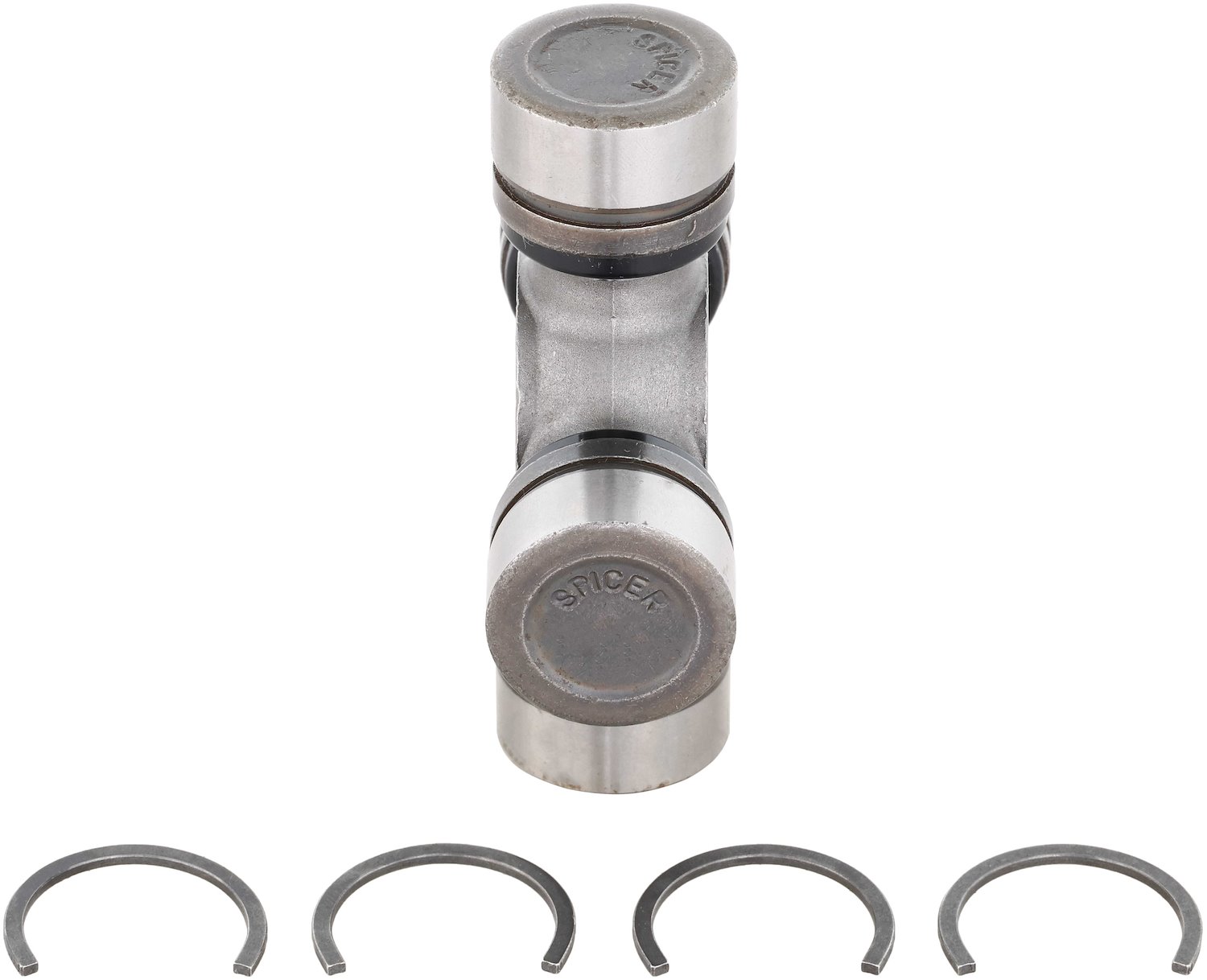

Universal Joints

Name: Universal Joints
Brand: DANA SPICER
SKU: 094-5-811X
Price: 28.95 USD
Availability: InStock

^$28⁹⁵

3 left in stock

Ships Today

Lowest Price Guarantee

Non-Greaseable U-Joints

Detroit 7290 Series
Inside Snap Rings
Cap OD: 1.125''
Length: 2.625''

Material; Steel, Bearing Cap Diameter (1); 1.125, OEM Mfg; Detroit, OEM Series; 7290, Type; ISR Style, Bearing Cap Diameter (2); 1.125, Snap Ring (1); 2.625, Snap Ring (2); 2.625, Bearing Cap Type; Round, Snap Ring Included; Y

Part TypeUniversal Joint

BrandDANA SPICER

Package Height1.3

Package Width3.6

Package Length3.7

Weight1.38 PG

Part CategoryReplacement Parts

Inside Snap Ring Style Bearing Cap Daimeter 11.125 in (28.575 mm)

Inside Snap Ring Style Bearing Cap Daimeter 21.125 in (28.575 mm)

PositionVarious - Application Specific

K2 Snap Ring Dim. (Between Rings) (Isr)2.625

Inside Snap Ring Style - Outside Of Groove 1 Dim2.625 in (66.675 mm)

U-Joint Series7290

Retention MethodInside Snap Ring

D2 Bearing Cap Dia. (Isr)1.125

Inside Snap Ring Style - Outside Of Groove 2 Dim2.625 in (66.675 mm)

D1 Bearing Cap Dia. (Isr)1.125

Greasable (Y/N)No

K1 Snap Ring Dim. (Between Rings) (Isr)2.625

Outside/Inside Snap Rings (Osr) (Isr)ISR

Part FitmentDirect Fit

Vendor Part Number5-811X

Package Qty1

Package TypeEA
