Made in USA
Universal Joints
InfoVehicle Info Needed
DANA SPICERPART NUMBER: 094-5006813

Universal Joints

$9171
More than 10 available
ShippingShips Today
Lowest PriceLowest Price Guarantee

Non-Greaseable U-Joints

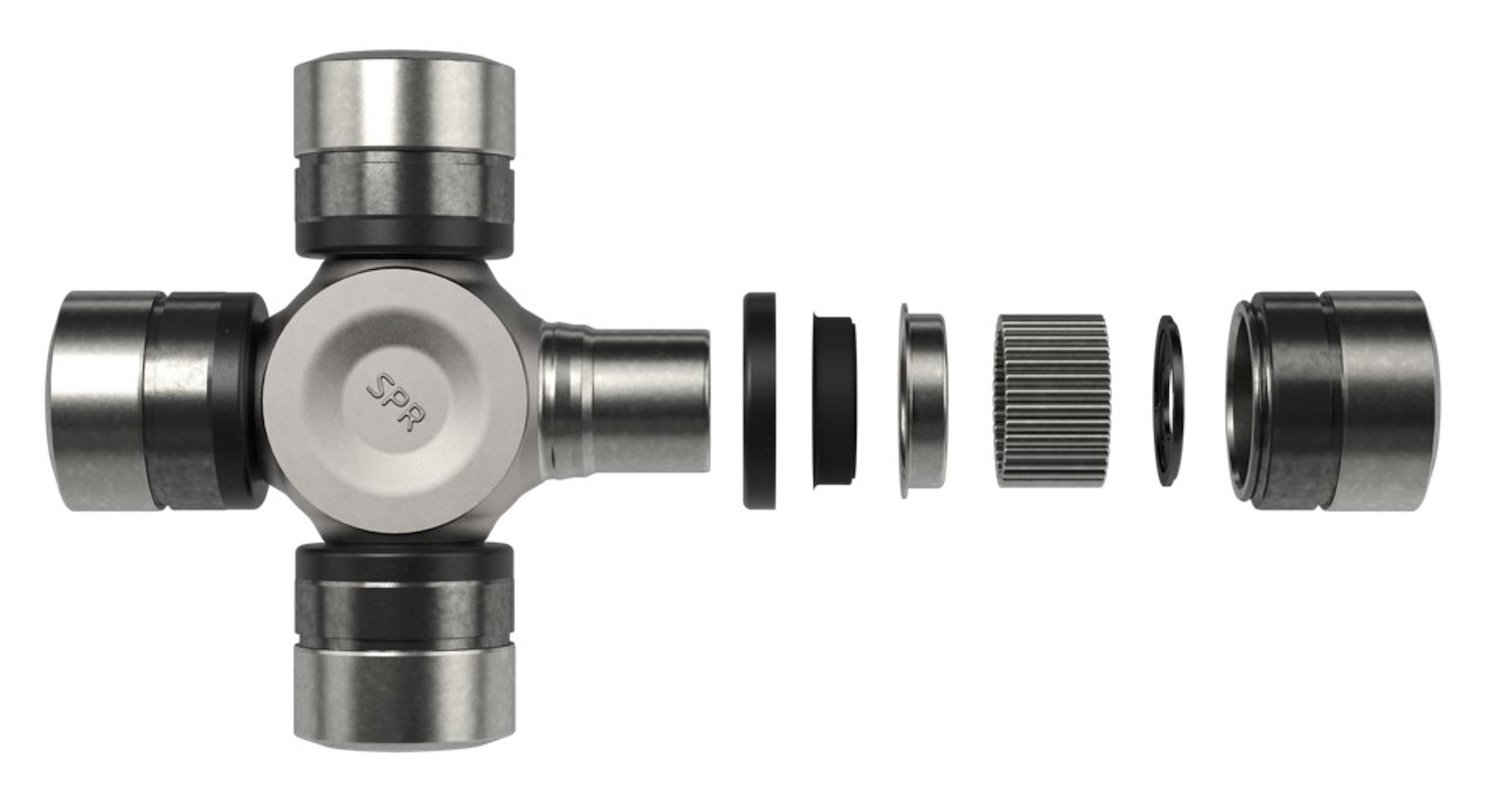

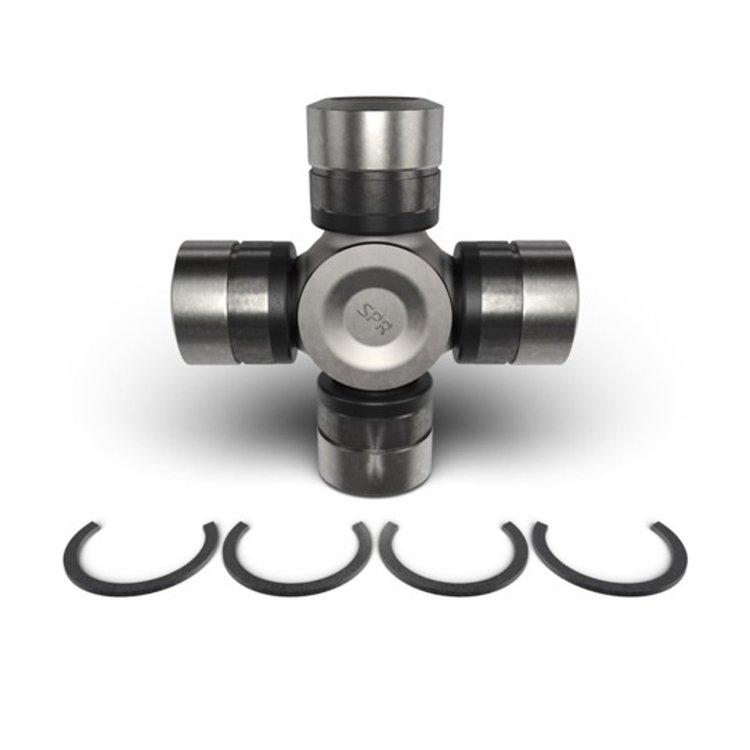

    Non-Greaseable Life Series U-Joint
  • 1485WJ Series (Wheel Joint)
  • Inside Snap Rings
  • Cap OD: 1.375''
  • Length: 2.920''

  • Fits 2003-Up Dodge 9.25" front American Axle at the wheel joint
  • Length is between snap rings

    Optimize the Life of Your Vehicle with Spicer U-Joints

    Available greaseable or non-greaseable, Life Series U-Joints have cold-formed steel journal crosses for maximum strength and triple-lip seals with an external guard to handle harsh conditions. Non-greaseable U-joints are prefilled with synthetic lithium grease to reduce friction and raise temperature resistance, plus have ample grease reservoirs in each trunnion to ensure effective lubrication. Non-greaseable U-joints are stronger than greaseable units because they don't have grease passages. U-joints are sold each or in non-greaseable full packs. Spicer also separately offers synthetic grease (specially formulated for their U-joints but suitable for all driveline components), replacement U-bolts, and U-joint straps.

Part TypeUniversal Joint
Product LineSpicer Life Series U-Joints, Packs, Grease & Hardware
BrandDANA SPICER
Package Height1.5
Package Width4.1
Package Length4.3
Weight2.53 PG
Part CategoryReplacement Parts
Inside Snap Ring Style Bearing Cap Daimeter 11.375 in (34.925 mm)
Body TypeVarious - Application Specific
Inside Snap Ring Style Bearing Cap Daimeter 21.375 in (34.925 mm)
PositionFront Axle at Wheels
K2 Snap Ring Dim. (Between Rings) (Isr)2.920
Inside Snap Ring Style - Outside Of Groove 1 Dim2.92 in (74.168 mm)
U-Joint Series1485 AAM
Retention MethodInside Snap Ring
D2 Bearing Cap Dia. (Isr)1.375
Inside Snap Ring Style - Outside Of Groove 2 Dim2.92 in (74.168 mm)
D1 Bearing Cap Dia. (Isr)1.375
Greasable (Y/N)No
K1 Snap Ring Dim. (Between Rings) (Isr)2.920
Outside/Inside Snap Rings (Osr) (Isr)ISR
Part FitmentDirect Fit
Vendor Part Number5006813
Package Qty1
Package TypeEA
