Made in USA

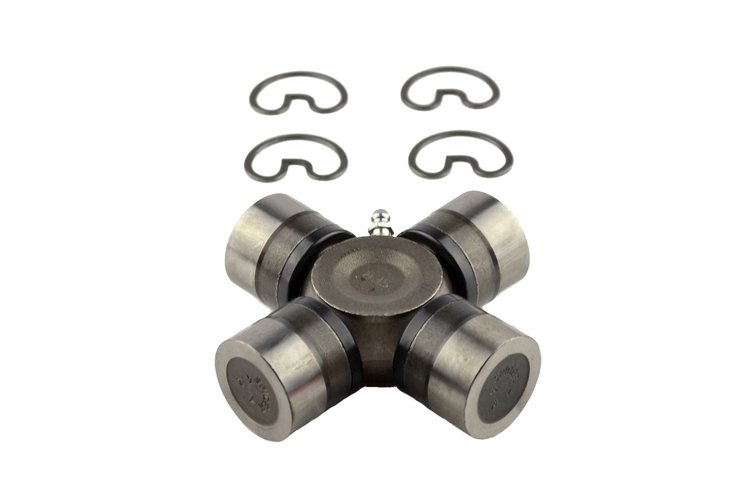

Greaseable Life Series U-Joint 1480 Series
InfoVehicle Info Needed
DANA SPICERPART NUMBER: 094-SPL55-1X

Greaseable Life Series U-Joint 1480 Series

$7180
ShippingShips on Sep 15, 2026
Lowest PriceLowest Price Guarantee

Greaseable U-Joints
Greaseable Life Series U-Joint
  • 1480 Series
  • Outside Snap Rings
  • Cap OD: 1.375''
  • Length: 4.188''

    Spicer 094-SPL55-1X Features:

    • Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.
    • Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.
    • Multi-lip seal keeps grease in and contaminants out| and gets maximum retention in a wider range of environments.
    • Thrust washers eliminate metal-to-metal contact| prevent wear and lower the overall operating temperature.
    • Optimize the Life of Your Vehicle with Spicer U-Joints

      Available greaseable or non-greaseable, Life Series U-Joints have cold-formed steel journal crosses for maximum strength and triple-lip seals with an external guard to handle harsh conditions. Non-greaseable U-joints are prefilled with synthetic lithium grease to reduce friction and raise temperature resistance, plus have ample grease reservoirs in each trunnion to ensure effective lubrication. Non-greaseable U-joints are stronger than greaseable units because they don't have grease passages. U-joints are sold each or in non-greaseable full packs. Spicer also separately offers synthetic grease (specially formulated for their U-joints but suitable for all driveline components), replacement U-bolts, and U-joint straps.

    Part TypeUniversal Joint
    Product LineSpicer Life Series U-Joints, Packs, Grease & Hardware
    BrandDANA SPICER
    Package Height1.9
    Package Width4.2
    Package Length4.4
    Weight2.52 PG
    Part CategoryReplacement Parts
    Greasable (Y/N)Y
    Body TypeVarious - Application Specific
    Outside Snap Ring Style Dim. Over Caps 14.188 in (106.4 mm)
    PositionVarious - Application Specific
    U-Joint SeriesSPL55
    Outside Snap Ring Style Bearing Cap Daimeter 21.375 in (34.9 mm)
    Outside Snap Ring Style Bearing Cap Daimeter 11.375 in (34.9 mm)
    Retention MethodOutside Snap Ring
    Outside Snap Ring Style - Dim. Over Caps 24.188 in (106.4 mm)
    Vendor Part NumberSPL55-1X
    Package Qty1
    Package TypeEA
