SHP Dual Plane Intake Manifold 1955-86 Small Block Chevy
InfoVehicle Info Needed
DARTPART NUMBER: 301-42811000

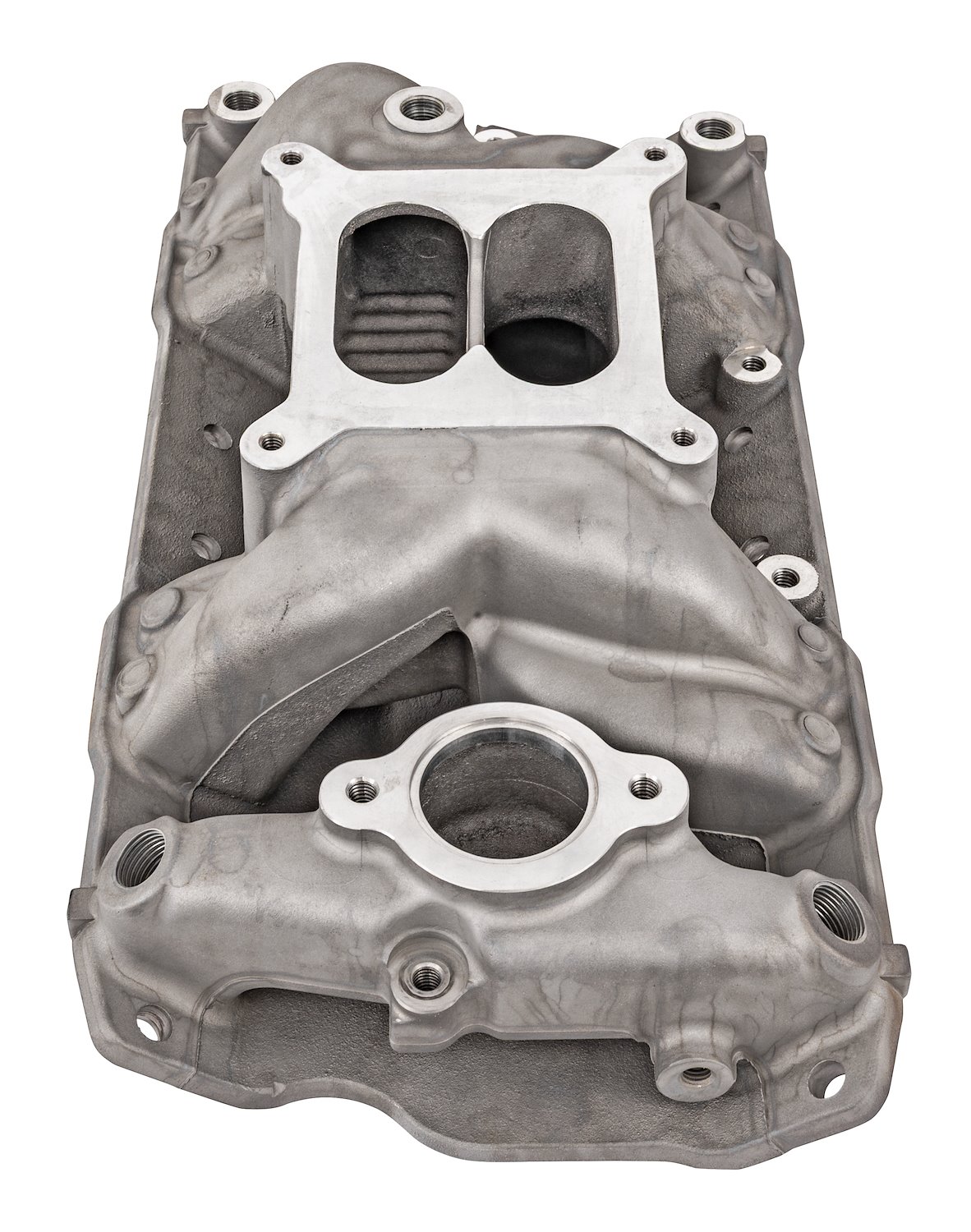

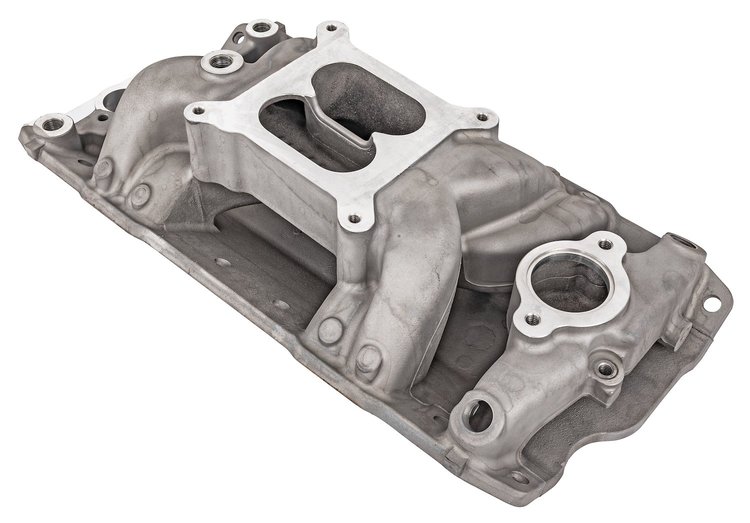

SHP Dual Plane Intake Manifold 1955-86 Small Block Chevy

$36568
ShippingShips Today
Lowest PriceLowest Price Guarantee

Dual Plane Intake Manifold
    Dart SHP Dual Plane Intake Manifold
  • 1955-86 Small Block Chevy
  • Fits 4150 Carburetors
  • 1500 to 6500 RPM

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

The Dart SHP Small Block Chevy Dual Plane Intake Manifold is a perfect match for Dart Dart SHP Heads as featured in the performance proven Dart SHP Top End Kits. The dual plane design maximizes mid-range torque, and a ribbed plenum floor promotes better fuel atomization. A boundary layer of cool air beneath the plenum and runners insulates the fuel/air mixture from engine heat, this productes a denser intake charge and makes more power!

Show More

Features:

  • Uses popular 4150-style carburetors
  • Recommended for 215cc and smaller intake ports
  • Dual distributor hold-downs simplify timing adjustments
  • Raised water cross-over and air gap insulate intake charge
  • Integral bosses for nitrous injectors
Part TypeIntake Manifold
Product LineDart SHP Small Block Chevy Dual Plane Intake Manifold
BrandDART
Package Height7.2
Package Width12.8
Package Length21.9
Weight17.93 PG
Part CategoryPerformance Parts
Intake Section IncludedComplete
Engine Block StyleStock/OEM standard deck
EgrWithout EGR
Intake MaterialAluminum
Intake StyleDual plane
QuantitySold individually
Intake FinishNatural
Carburetor QuantityOne
Vendor Part Number42811000
Package Qty1
Package TypeEA
