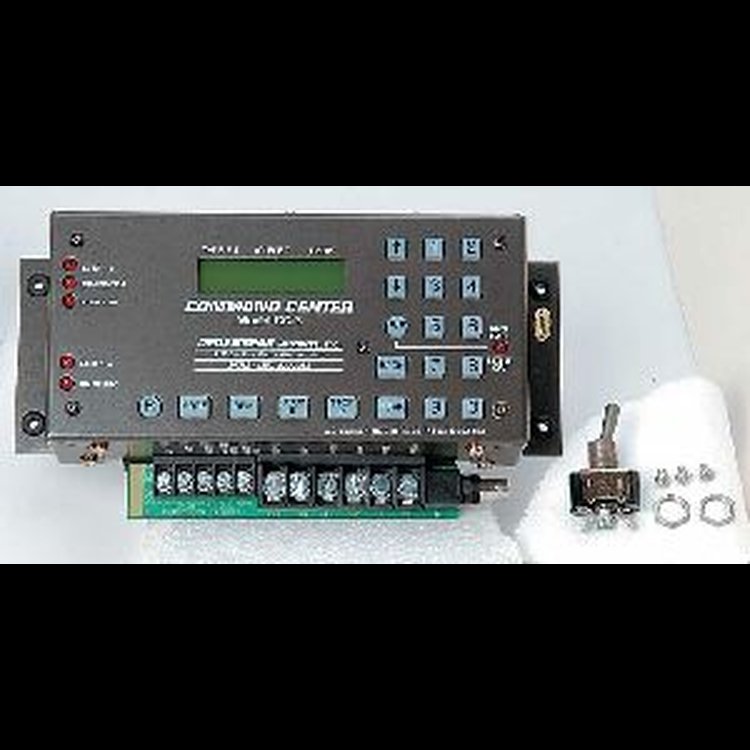

CC3 Command Center
- CC3 Command Center
The Ultimate Tool For Drag Racing!
Dedenbear has come through on many features with the CC3 Command Center that make the racers life a little easier.
Features:
- Starting line control with adjustable release time. This will let you put your foot to the floor when you depress the transbrake button as your linkage stop will hold the engine at your desired staging RPM. The time can be adjusted as to when the engine goes to wide open before transbrake release.
- "Super Start" control for activating a linkage stop just before staging. This feature from the CC3 lets you pull into the stage beams with your foot to the floor while your engine is at an idle. For Pro-Tree your stop will pull open when you depress the transbrake button and for Full-Tree you can utilize Dedenbear's adjustable release time or simply have it pull wide open at transbrake release.
Show More
- The CC3 throttle stop timers are adjustable to the thousandth of a second for precise consistency.
- Dedenbear's CC3 has a multiple speed RPM switch for shifting at different points.
- The RPM switch can be used as a third 4 stage timer. the RPM switch output can be user changed so it will function as a third independent 4 stage timer. This makes it handy for timing shifts, timing retards, nitrous, or any other device when the RPM switch is not used.
- The CC3 Command Center has the most independent outputs of any delay box on the market. The box has 7 total outputs: Transbrake, Line Lock, Starting Line Control, Two 4 Stage throttle Stop Controllers, RPM Switch, And Remote Display Dial In Board. All of those can be used simultaneously.
- The Dedenbear CC3 also features Crossover, Interface And Cross talk, Two hits At The Tree, And Skip Up And Skip Down.
- The CC3 remembers Pro/Full as two groups of settings.
- The Box has down track transbrake lock and trip protection if you accidently bump the transbrake button during a run.
- The CC3 has a lighted keypad and display for night use.
- Measures 9.12 x 3.75 x 2.13.
Jegs Easy Kits are designed by Jegs Professionals to assist your shopping experience. These Easy Kits includes the Command Center and the Installation Kit.For Additional JEGS Easy Kits Click Here
Part TypeDelay Box
Product LineDedenbear Command Center
BrandDEDENBEAR
Package Height4.5
Package Width6.5
Package Length12.7
Weight2.92 PG
Part CategoryPerformance Parts
Delay Box Length9.12 in (231.648 mm)
Accidental Release ProtectionYes
Delay Box Depth2.13 in (54.102 mm)
Digital TachometerNo
Delay Box Height3.75 in (95.25 mm)
Trans-Brake Switch OutputYes
Run ReplayNo
Throttle Pedal Linkage ControlYes
Voltage Compatibility12/16
Pro Tree Setting MemoryYes
Tap Up/Tap DownYes
Keypad TypePushbutton
Crossover DelayYes
Nhra Accepted For Super ClassesYes
QuantitySold individually
Full Tree Setting MemoryYes
Remote Digital Dial In Board OutputYes
Lcd ReadoutYes
Four Stage Throttle Stop ControllersYes
IlluminatedYes
Throttle Stop TimersYes
Rpm Activated Switch IncludedYes
Line Lock Switch OutputYes
Time Activated ShiftingYes
Illuminated KeypadYes
Part FitmentUniversal
Starting Line Launch ControlYes
Vendor Part NumberCC3
Package Qty1
Package TypeEA
