Made in USA
Thunder Super Cross Over Delay Box
InfoVehicle Info Needed
DEDENBEARPART NUMBER: 302-T1

Thunder Super Cross Over Delay Box

$50799
ShippingShips on 11/03/2026
Lowest PriceLowest Price Guarantee

Thunder Super Cross Over Delay Box
    Thunder Super Cross Over Delay Box

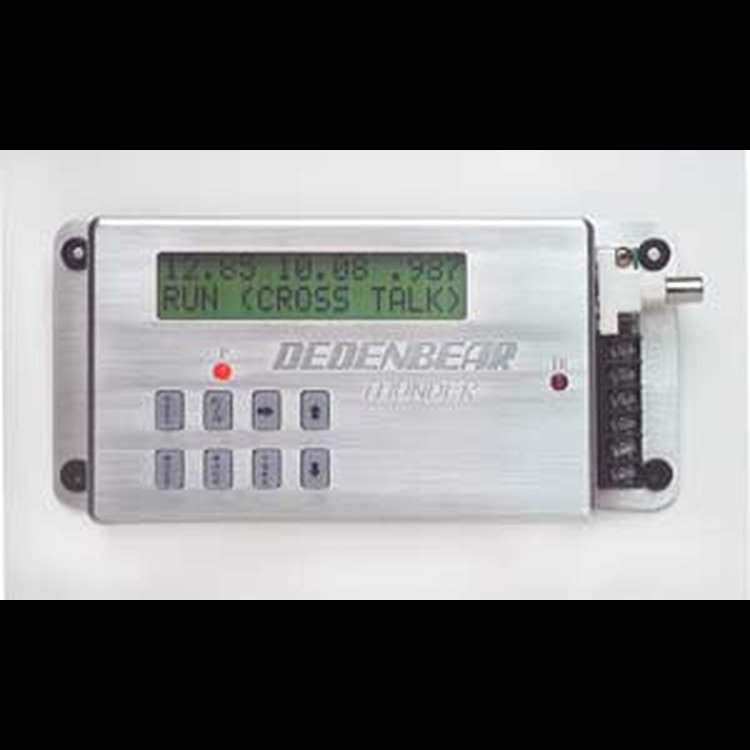

The Thunder Super Cross Over Delay Box is perfect for the avid bracket racer. Dedenbear's Thunder Super Cross Over Delay Box has all the latest delay box features without the throttle stop timer or RPM switched. This Box is easy to use, has great looks and even better pricing.

Features:

  • Billet aluminum enclosure
  • 250% larger display than previous designs for easy viewing
  • Lighted keypad and display for night use
  • NHRA approved for use in all electronic classes
  • 4 delay modes include ''Cross-Talk'', ''Crossover'', ''Interface'', and the ''Delay''
  • Skip up and Skip down (same as tap up/down to add or subtract from you delay with the push of a separate button after you release the Tran brake button)
Show More
  • Remote display output for LED dial in board
  • Independent line lock output
  • Adjustable Trans brake lockout
  • Crossover compensation and trip protections
  • Pro/Full feature allows saving two groups of settings
  • 12 & 16 bolt compatibility
  • Scroll and cursor keys for quick and easy settings
  • compatible with all engines and ignitions
  • Small size, only 6-7/8'' by 4'' face size and 1-1/2'' thick

    Jegs Easy Kits are designed by Jegs Professionals to assist your shopping experience. These Easy Kits includes the Thunder Super Cross Over Delay Box and the Installation Kit.

Part TypeDelay Box
Product LineDedenbear Thunder Super Cross Over Delay Box
BrandDEDENBEAR
Package Height4.5
Package Width6.5
Package Length12.8
Weight2.29 PG
Part CategoryPerformance Parts
Delay Box Length6.875 in (174.625 mm)
Accidental Release ProtectionNo
Delay Box Depth1.5 in (38.1 mm)
Digital TachometerNo
Delay Box Height4 in (101.6 mm)
Trans-Brake Switch OutputYes
Run ReplayNo
Throttle Pedal Linkage ControlNo
Voltage Compatibility12/16
Pro Tree Setting MemoryYes
Tap Up/Tap DownYes
Keypad TypePushbutton
Crossover DelayYes
Nhra Accepted For Super ClassesYes
QuantitySold individually
Full Tree Setting MemoryYes
Remote Digital Dial In Board OutputYes
Lcd ReadoutYes
Four Stage Throttle Stop ControllersNo
IlluminatedYes
Throttle Stop TimersNo
Rpm Activated Switch IncludedNo
Line Lock Switch OutputYes
Time Activated ShiftingNo
Illuminated KeypadYes
Part FitmentUniversal
Starting Line Launch ControlNo
Vendor Part NumberT1
Package Qty1
Package TypeEA
