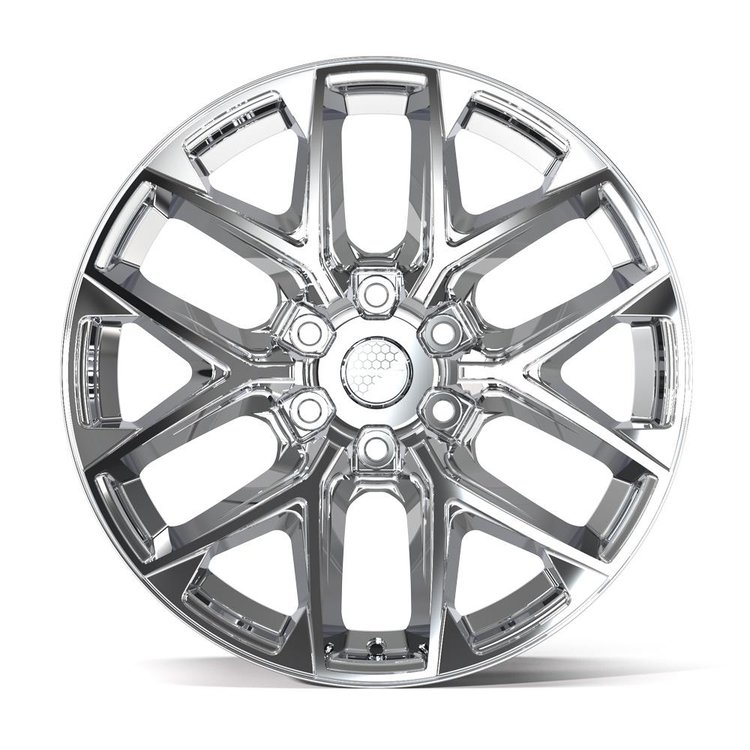

The DEFIANT DF17B is a 20"x9" aftermarket wheel built for 6-lug Ram 1500 and Nissan Titan or Armada owners who want a fresh look without guessing at fitment. It uses a 6x139.7 mm bolt pattern with a 77.8 mm center bore and a moderate positive offset that keeps the tire close to the factory track width, and it wears a chrome finish for a high-shine look on show trucks and daily drivers alike. With a 2980 lbs. load rating per wheel, it is suited to daily driving duty on the listed vehicles.

DEFIANT DF17B-20090-6550-18C Technical Specifications:

• Fitment: 2004-2013 Infiniti QX56, 2004-2025 Nissan Armada, 2004-2025 Nissan Titan, 2019-2025 Ram 1500 6 Lug, 2019-2025 Ram Rebel 1500 6 Lug.
• Wheel size is 20"x9" with a 6x139.7 mm (6x5.50") 6-lug bolt pattern.
• Offset is +18 mm with 5.80" of backspacing.
• Center bore measures 77.8 mm.
• Load rating is 2980 lbs. per wheel.
• Finish is Chrome.
• Wheel weight is 35.5 lbs.
• Uses 60-degree conical seat lug nuts (sold separately).
• Center cap is included; some factory center caps will also interchange.
• Fitment is based on stock-equipped vehicles; lifted, lowered or modified vehicles and larger tire sizes should be test-fit before mounting tires.
