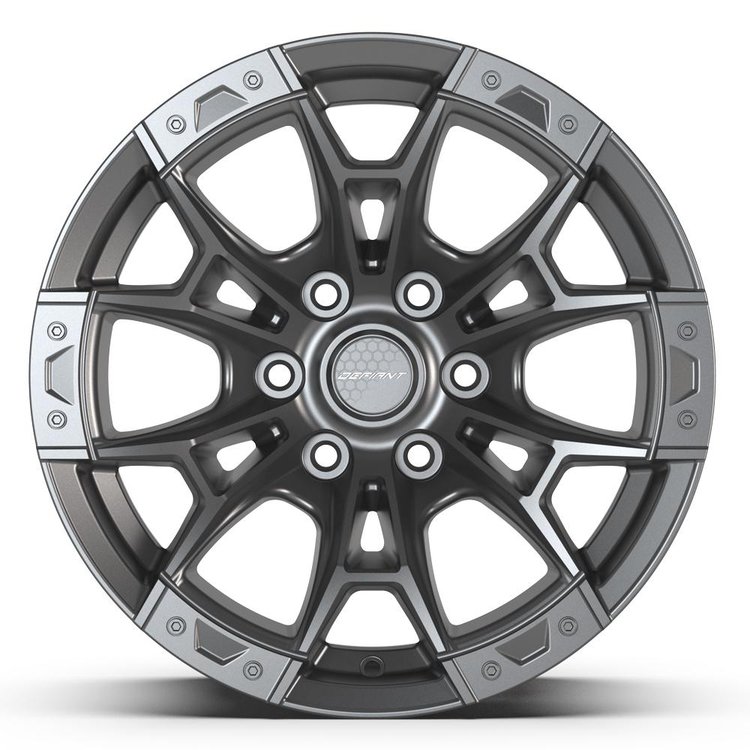

The DEFIANT DF04 is a 20"x9" aftermarket wheel built for F-150, Expedition and Navigator owners who want a fresh look without guessing at fitment. It uses a 6x135 mm bolt pattern with a 87 mm center bore and a moderate positive offset that keeps the tire close to the factory track width, and it wears a satin gunmetal finish that adds contrast against dark or silver paint. With a 2900 lbs. load rating per wheel, it is suited to daily driving duty on the listed vehicles.

DEFIANT DF04-20090-6135-12G1 Fitment and Specifications:

• Fitment: 2003-2025 Lincoln Navigator, 2003-2025 Ford Expedition, 2006-2008 Lincoln Mark LT, 2004-2025 Ford F-150, 2010-2025 Ford F-150 Raptor.
• Wheel size is 20"x9" with a 6x135 mm (6x135 mm) 6-lug bolt pattern.
• Offset is +12 mm with 5.50" of backspacing.
• Center bore measures 87 mm.
• Load rating is 2900 lbs. per wheel.
• Finish is Satin Gunmetal.
• Wheel weight is 36 lbs.
• Uses 60-degree conical seat lug nuts (sold separately).
• Center cap is included; some factory center caps will also interchange.
• Fitment is based on stock-equipped vehicles; lifted, lowered or modified vehicles and larger tire sizes should be test-fit before mounting tires.
