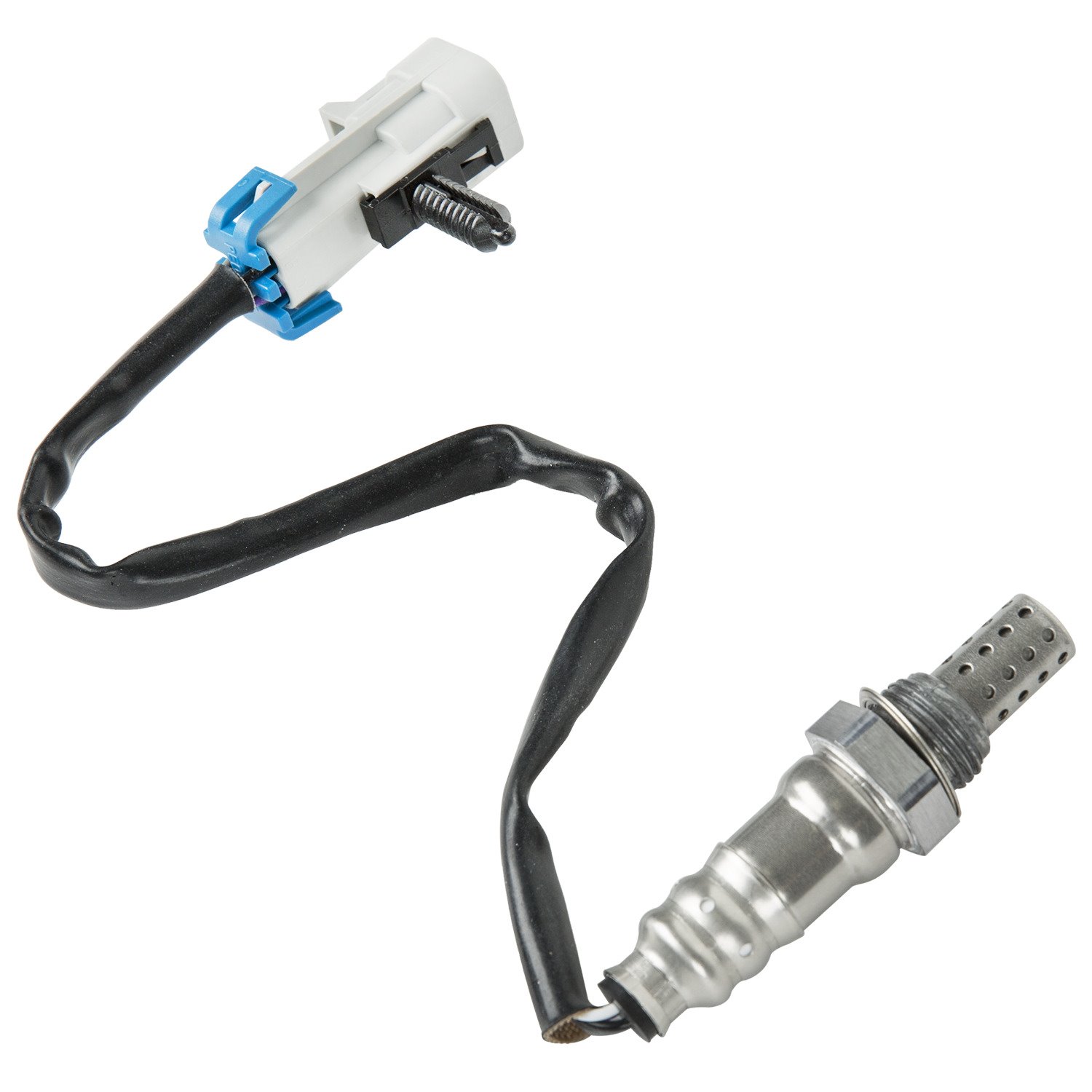

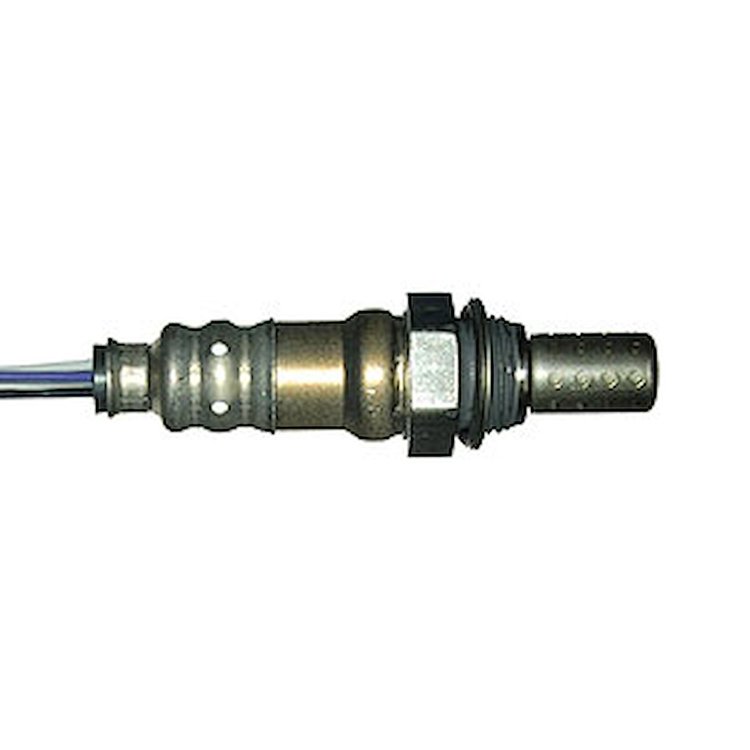

Oxygen Sensor for 2004-2013 GM Trucks and SUVs

Name: Oxygen Sensor for 2004-2013 GM Trucks and SUVs
Brand: DELPHI
SKU: 117-ES20007
Price: 85.33 USD
Availability: InStock

^$85³³

Ships on 09/04/2026

Lowest Price Guarantee

Oxygen Sensor

2004-2013 GM Trucks and SUVs

Sensor Type: Narrow-Band

Hex Size: 22 mm

Overall Length: 14.1 in.

Wire Gauge Measurement: 20 gauge

Terminal Quantity: 4

This oxygen sensor replaces a slow or failed sensor on 2004-2013 GM Trucks and SUVs, restoring an accurate air-fuel signal to the engine control module.

Oxygen Sensor Specs:

Connector Gender: Female.
Connector Shape: Square.
Grade Type: Standard Replacement.
Heated: Yes.
Hex Size: 22 mm.
Mounting Type: Threaded.
Overall Length: 14.1 in.
Position(s): Front, Rear. For the position specific to your vehicle, refer to the Applications.
Sensor Type: Narrow-Band.
Terminal Gender: Male.
Terminal Quantity: 4.
Terminal Type: Blade.
Thread Size: M18 - 1.5.
Wire Gauge Measurement: 20 gauge.
Wire Quantity: 4.
Wiring Harness Length: 12.9 in.
Wrench Size: 22mm.

A Leading Supplier of Reliable O2 Sensors Since 1978

Delphi OE & aftermarket engineers collaborated to develop the most innovative oxygen sensors for the auto industry. Delphi's patented sensor coating offers the best contamination resistance to silicone, phosphorous, and other fuel/oil additives, while planar technology helps reduce emissions. Sensors feature OE connectors and wire lengths for easier installation, better high-temp protection, and reduced vibration damage and wire corrosion to preserve signal accuracy and longevity.

Delphi planar O2 sensors replace previous conical sensors to maximize output, and their unique coating provides lifetime operation with E85 and other alcohol-based fuels.

Delphi Cross-Reference

Part TypeOxygen Sensor

Product LineDelphi Oxygen Sensors

BrandDELPHI

Package Height1.87

Package Width2.12

Package Length5.81

Weight0.3 PG

Part CategoryReplacement Parts

PositionFront

Inspection Interval150,000 miles

Type/SeriesHeated
