![Mechanical Fuel Pump for 1978-1988 GM Trucks and SUVs [Aluminum]](https://www.jegs.com/images/mini_750/100/117/117-mf0004.jpg)
Vehicle Info NeededDELPHIPART NUMBER: 117-MF0004

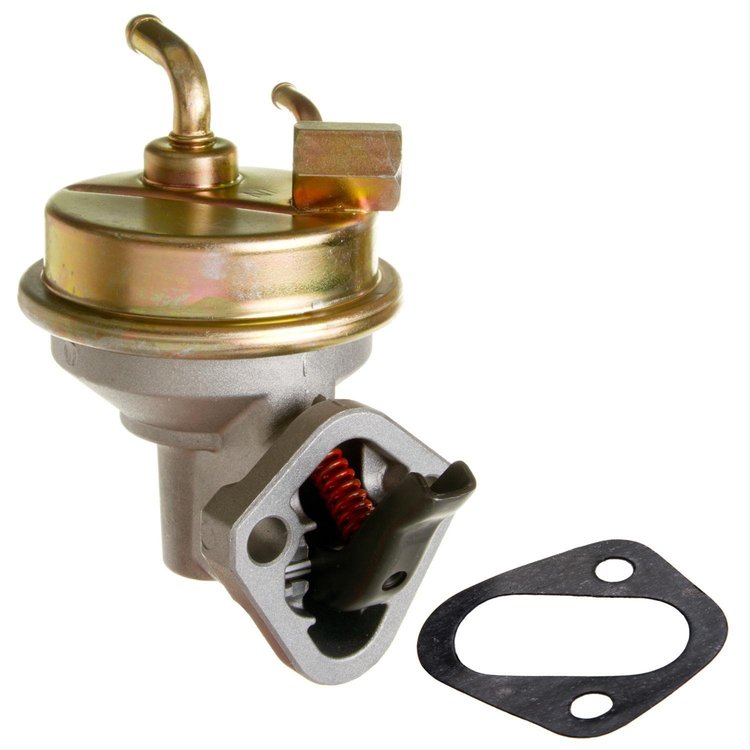

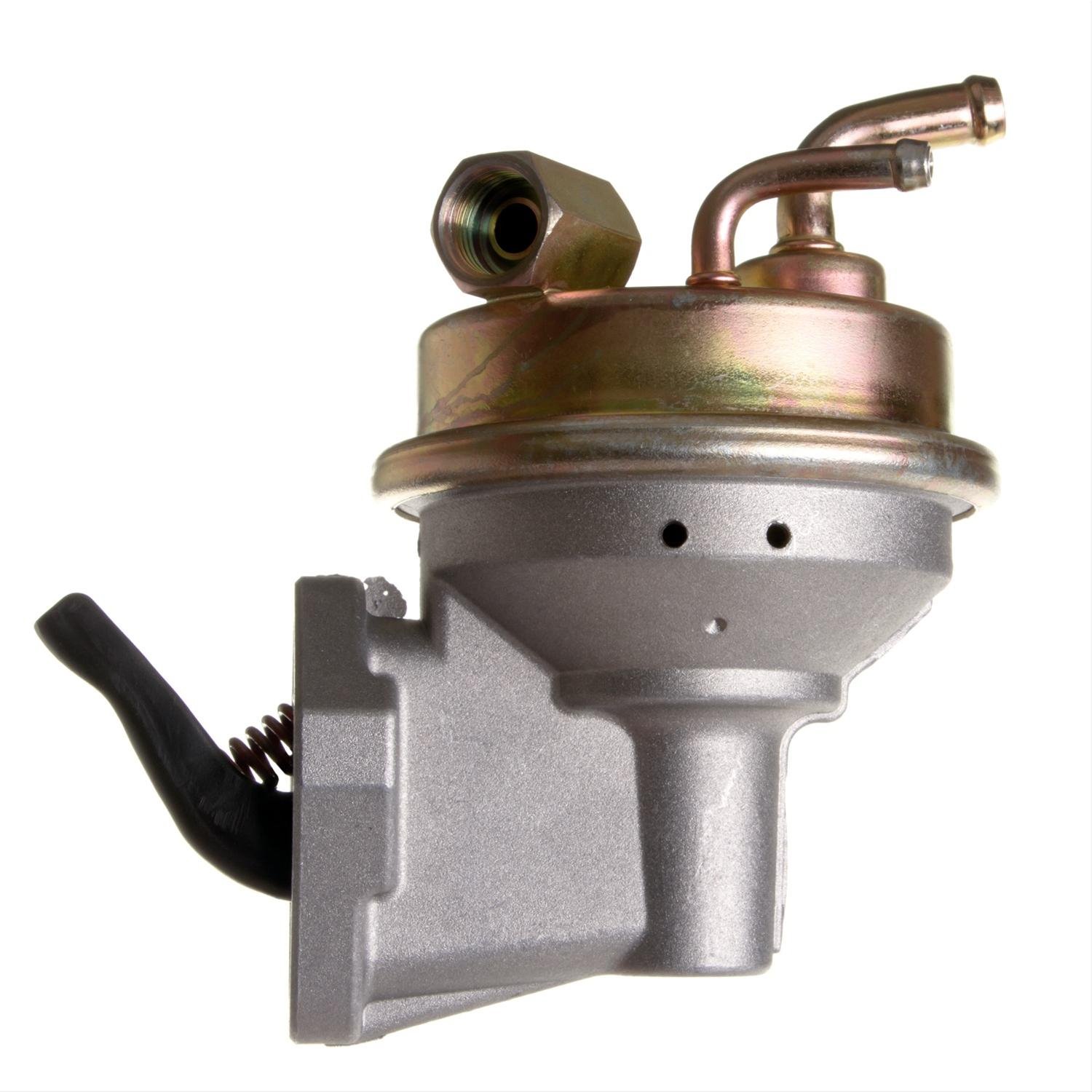

Mechanical Fuel Pump for 1978-1988 GM Trucks and SUVs [Aluminum]
$2613
Ships on Sep 11, 2026
Lowest Price GuaranteeMechanical Fuel Pump1978-1988 GM Trucks and SUVs Fuel Type: Gas Average Flow Rating: 40 GPH Inlet Outside Diameter: 0.375 in. Maximum Pressure: 11 psi Inlet Quantity: 1
This lever-operated diaphragm pump replaces the factory mechanical fuel pump on 1978-1988 GM Trucks and SUVs.
Mechanical Fuel Pump Specs:
- Average Flow Rating: 40 GPH.
- Fuel Type: Gas.
- Gasket or Seal Included: Yes.
- Grade Type: Premium.
- Housing Material: Aluminum.
- Inlet Outside Diameter: 0.375 in.
- Inlet Quantity: 1.
- Inlet Type: Hose Bead.
- Maximum Pressure: 11 psi.
- Minimum Pressure: 9 psi.
- Mounting Hardware Included: Yes.
- Mounting Hole Quantity: 2.
- Outlet Fitting Thread Size: 5/8" - 18.
- Outlet Quantity: 2.
- Outlet Type: Threaded.
- Pump Design: Mechanical.
Part TypeMechanical Fuel Pump
BrandDELPHI
Package Height3.5
Package Width4.5
Package Length6.0
Weight1.38 PG
Part CategoryReplacement Parts
Item GradeStandard Replacement
Product TypeMechanical Fuel Pump
Outlet Size5/8 in - 18 UNF
Part FitmentDirect Fit
Inlet Size3/8 in
Outlet Quantity (# Of Ports/Lines)3
Inlet Typehose bead
Flow Rate40 gal/hr
Package ContentsMechanical Fuel Pump, Gaskets, Instruction Sheet
Meets Or Exceeds Original Equipment Manufacture SpecificationsYes
Gasket/Seal IncludedYes - 2
Outlet TypeThreaded
System Pressure9 psi
Vendor Part NumberMF0004
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
