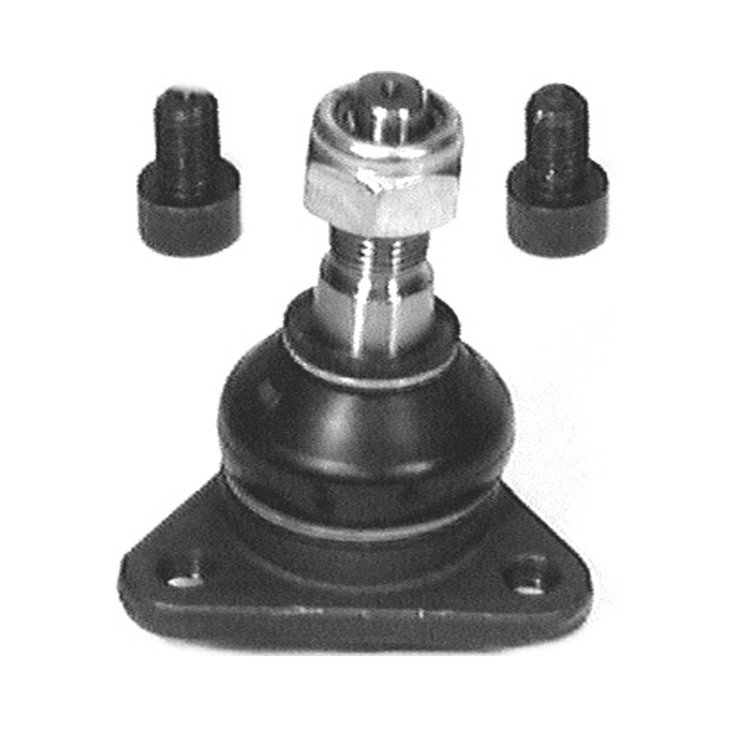

This ball joint replaces a worn original on 1980-1991 Volkswagen Transporter & Volkswagen Vanagon, removing play between the control arm and steering knuckle.

Ball Joint Specs:

• Adjustable: No.
• Ball Joint Assembly: Yes.
• Bushings Included: No.
• Castle Nut Included: No.
• Color: Black.
• Cotter Pin Hole: No.
• Cotter Pin Included: No.
• Distance Between Mounting Holes: 54.00 mm.
• Dust Boot Included: Yes.
• Dust Boot Material: Rubber.
• Grease Fitting Included: No.
• Greaseable: No.
• Height: 3.752 in.
• Material: Steel.
• Maximum Outside Diameter: 2.913 in.
• Mount Plate Included: No.
• Mounting Bolt Head Diameter: 0.630 in.
• Mounting Bolt Length: 0.787 in.
• Mounting Bolt Shank Diameter: 0.394 in.
• Mounting Bolt Thread Length: 0.787 in.
• Mounting Bolts Included: Yes.
• Mounting Hardware Included: Yes.
• Mounting Hole Quantity: 2.
• Mounting Type: Bolt-In.
• Position(s): Front Upper.
• Stud Tapered End 1 Diameter: 0.713 in.
• Stud Tapered End 2 Diameter: 0.799 in.
• Stud Thread Length: 1.106 in.
• Stud Type: Threaded.
• Suspension Grade Type: Standard Replacement.
• Tapered Stud: Yes.
• Washers Included: No.
• Width: 74 mm.
• Wrench Size: 24mm.
