Vehicle Info NeededDERALEPART NUMBER: 259-13224

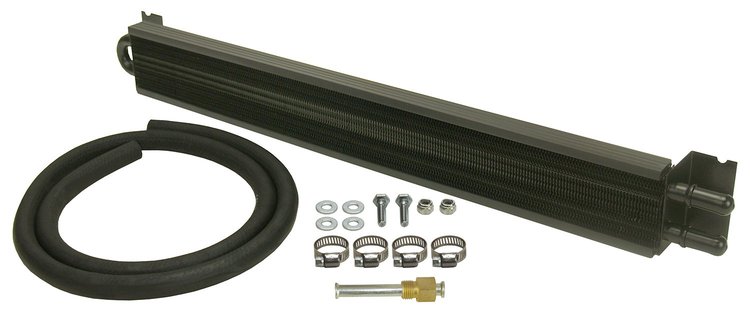

Series 7000 Frame Rail Cooler Kit
$6603
6 left in stock
Ships Today
Lowest Price GuaranteeFrame Rail Cooler Kits
Series 7000 Frame Rail Cooler Kit11/32" Barb Inlets Length: 23-5/8" Core Length: 20-3/4" Width: 2-5/8" Depth: 1-3/4" Fluid Capacity: 4.5 oz. Includes Complete Hardware Kit
Specifications:
- Cooler style: Tube & Fin
- Construction: Copper Tube/Aluminum Fin
- Inlet Size: 11/32" Barb
- Length: 23-5/8"
- Width: 2-5/8"
- Depth: 1-3/4"
- Inlet Dim.: 1-1/4"
- Mounting Hole Distance: 20-3/4"
- Core Length: 20-3/4"
- Hose Size: 11/32"
- Hose Length: 4'
With the same 1/2" copper tubing expanded into aluminum cooling fins and embossed turbulators as Derale's larger transmission coolers, these Frame Rail Mount Transmission Coolers use a slimer design to enable frame mounting specifically for limited space applications.
Features:
- Prevents heat related transmission failures
- Extends life of transmission
- Improves transmission performance
Show More
- Embossed turbulators inserted in each tube agitate fluid for maximum heat transfer
- Extruded plastic cooling fin guards
- 2 pass cooler design
- 1/2" copper tubing expanded into aluminum cooling fins
Part TypeFluid Cooler
Product LineDerale Frame Rail Mount Transmission Coolers
BrandDERALE
Package Height4.3
Package Width4.4
Package Length28.5
Weight2.51 PG
Part CategoryAccessories
Overall Thickness2.5 in (63.5 mm)
Overall Height1.75 in (44.5 mm)
QuantitySold individually
Cooler ConstructionTube and fin
Inlet AttachmentHose barb
Inlet Size (In.)11/32
Core Height1.5 in (38.1 mm)
Cooler FinishBlack painted
Core Thickness1.5 in (38.1 mm)
Number Of Cooling Rows2
Core Width24 in (609.6 mm)
Outlet AttachmentHose barb
Overall Width23.75 in (603.3 mm)
Cooler MaterialCopper/Aluminum
Part FitmentUniversal
Vendor Part Number13224
Package Qty1
Package TypeEA
