Vehicle Info NeededDERALEPART NUMBER: 259-13225

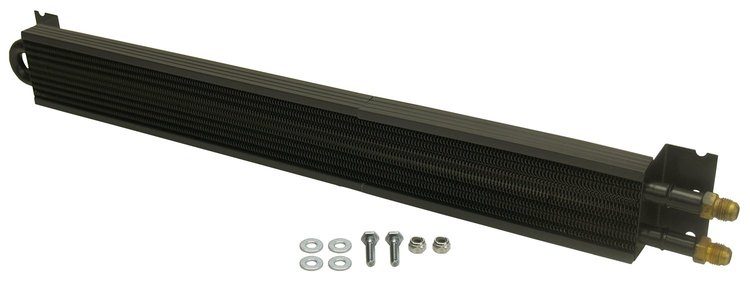

Series 7000 Frame Rail Cooler
$6143
1 left in stock
Ships Today
Lowest Price GuaranteeFrame Rail Coolers
Series 7000 Frame Rail Cooler-6AN Male Inlets Length: 24-3/8" Core Length: 20-3/4" Width: 2-5/8" Depth: 1-3/4" Fluid Capacity: 4.5 oz. Includes Mounting Hardware
Specifications:
- Cooler Style: Tube & Fin
- Construction: Copper Tube/Aluminum Fin
- Inlet size: -6AN Male
- Length: 24-3/8"
- Width: 2-5/8"
- Depth: 1-3/4"
- Inlet Dim.: 1-1/4"
- Core Length: 20-3/4"
- Mounting Hole Distance: 22-1/2"
With the same 1/2" copper tubing expanded into aluminum cooling fins and embossed turbulators as Derale's larger transmission coolers, these Frame Rail Mount Transmission Coolers use a slimer design to enable frame mounting specifically for limited space applications.
Features:
- Prevents heat related transmission failures
- Extends life of transmission
- Improves transmission performance
Show More
- Embossed turbulators inserted in each tube agitate fluid for maximum heat transfer
- Extruded plastic cooling fin guards
- 2 pass cooler design
- 1/2" copper tubing expanded into aluminum cooling fins
Part TypeFluid Cooler
Product LineDerale Frame Rail Mount Transmission Coolers
BrandDERALE
Package Height3.0
Package Width3.1
Package Length25.9
Weight1.5 PG
Part CategoryAccessories
Overall Thickness2.5 in (63.5 mm)
Overall Height1.75 in (44.5 mm)
Outlet Size-6 AN
Inlet Size-6 AN
QuantitySold individually
Cooler ConstructionTube and fin
Inlet AttachmentMale Threads
Core Height1.5 in (38.1 mm)
Cooler FinishBlack painted
Core Thickness1.5 in (38.1 mm)
Number Of Cooling Rows2
Core Width24 in (609.6 mm)
Outlet AttachmentMale Threads
Overall Width24.75 in (628.7 mm)
Cooler MaterialCopper/Aluminum
Part FitmentUniversal
Vendor Part Number13225
Package Qty1
Package TypeEA
