Vehicle Info NeededDERALEPART NUMBER: 259-16759

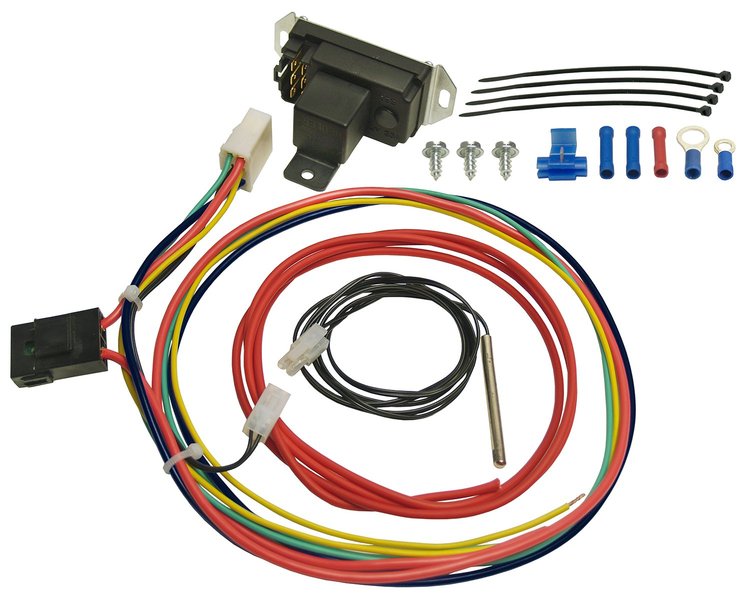

Adjustable Electric Fan Controller 150-240°F
$9458
More than 10 available
Ships Today
Lowest Price GuaranteeAdjustable Electric Fan Controllers
- Adjustable Electric Fan Controller
- Adjustable Turn-On Temp from 150-240°F
- Push-In Temp Probe
This newly redesigned adjustable electric fan control kit is designed to activate up to 2 fans with a total maximum draw of 25 amps. Includes a push-in radiator probe, relay wire harness and electrical connectors for an easy installation. A/C override circuit included. Adjustable fan controller turn-on range from 150°F - 240°F, and turn-off preset at 10°F lower than turn-on.
Features: - Adjustable turn-on temperature from 150-240°F
- Turn-off temperature is preset at 10°F below turn-on temperature
- Push-in radiator probe
- Heavy duty 40/60 amp relay *rated at maximum 25 amp continuous draw
- AC override circuit included
- Ground circuit relay
- Note - Operates up to a 25 amp fan or two fans with a combined draw of 25 amps or less
Derale makes mounting and controlling your electric cooling fan easy with a variety of controllers, thermostats, and mounting accessories to work with your vehicles cooling system. Derale is dedicated to providing the highest quality products and everyday value in the most complete performance cooling line in the industry.
Part TypeFan Controller
Product LineDerale Fan Controllers and Accessories
BrandDERALE
Package Height2.3
Package Width4.4
Package Length7.3
Weight0.85 PG
Part CategoryPerformance Parts
Wiring Harness IncludedYes
Thermal Switch StyleAdjustable fan control kit
Sending Unit IncludedYes
Manual Override Switch IncludedNo
Fan QuantitySingle
Adjustment Range (F)150-240 degrees F
Sending Unit StyleRadiator probe
Air Conditioning Relay IncludedNo
QuantitySold as a kit
Part FitmentSemi Universal
Relay IncludedYes
Vendor Part Number16759
Package Qty1
Package TypeEA
