Vehicle Info NeededDERALEPART NUMBER: 259-16749
Adjustable Electric Fan Controller 150-240°F
$9458
More than 10 available
Ships on Nov 02, 2026
Lowest Price GuaranteeAdjustable Electric Fan Controllers
- Adjustable Electric Fan Controller
- Adjustable Turn-On Temp from 150-240°F
- 3/8" NPT Threaded Temp Probe

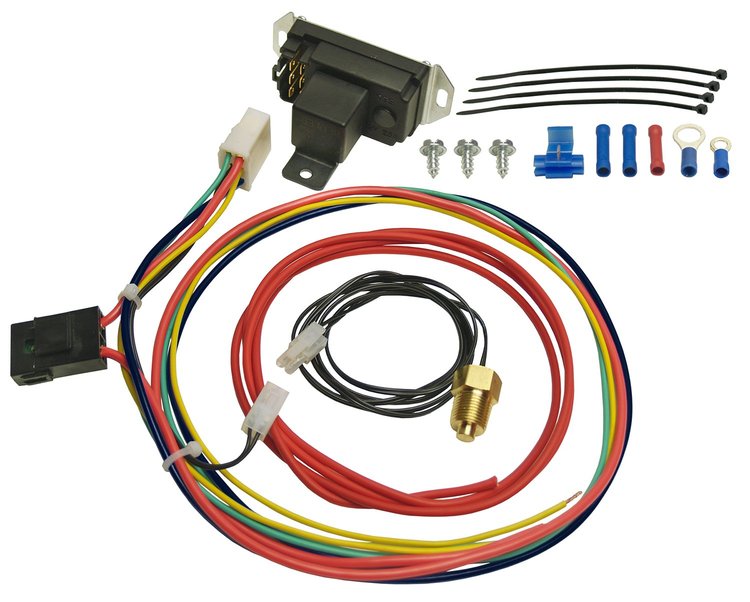

This newly redesigned adjustable electric fan control kit is designed to activate up to 2 fans with a total maximum draw of 25 amps. Includes a water jacket 3/8" NPT thread-in probe, relay wire harness and electrical connectors for an easy installation. A/C override circuit included. Adjustable fan controller turn-on range from 150°F - 240°F, and turn-off preset at 10°F lower than turn-on.
Features: - Adjustable turn-on temperature from 150-240°F
- Turn-off temperature is preset at 10°F below turn-on temperature
- Thread in 3/8" NPT probe
- Heavy duty 40/60 amp relay *rated at maximum 25 amp continuous draw
- AC override circuit included
- Ground circuit relay
- Note - Operates up to a 25 amp fan or two fans with a combined draw of 25 amps or less
Derale makes mounting and controlling your electric cooling fan easy with a variety of controllers, thermostats, and mounting accessories to work with your vehicles cooling system. Derale is dedicated to providing the highest quality products and everyday value in the most complete performance cooling line in the industry.
Part TypeElectric Fan Controller
Product LineDerale Fan Controllers and Accessories
BrandDERALE
Package Height2.3
Package Width4.4
Package Length7.3
Weight0.95 PG
Part CategoryPerformance Parts
Wiring Harness IncludedYes
Sending Unit IncludedYes
Manual Override Switch IncludedNo
Fan QuantitySingle/Dual
Adjustment Range (F)150-240 degrees F
Air Conditioning Relay IncludedNo
QuantitySold as a kit
Sending Unit Thread Size3/8-18 NPT
Thermal Switch StyleAdjustable fan control kit
Sending Unit StyleThread-in
Part FitmentSemi Universal
Relay IncludedYes
Vendor Part Number16749
Package Qty1
Package TypeEA
