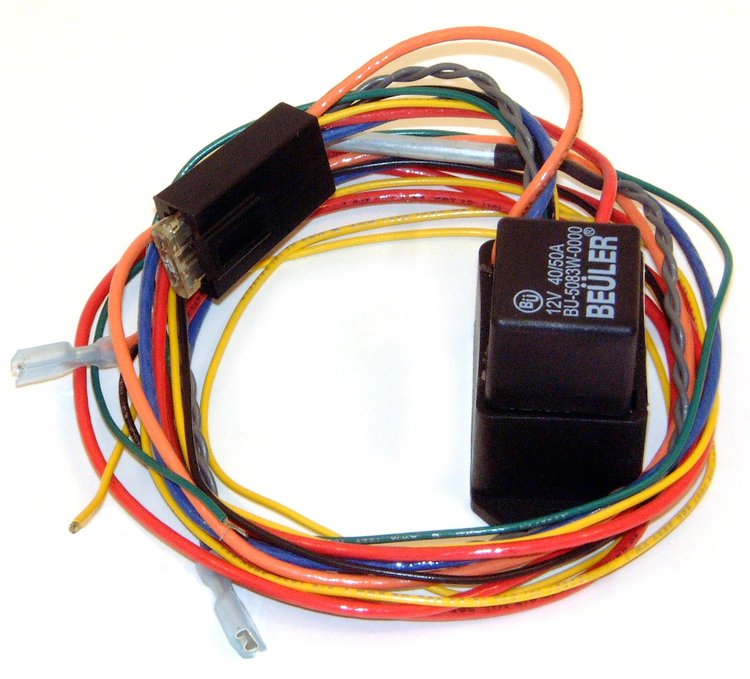

Thermostatic Control Switch Adjustable
InfoVehicle Info Needed
TCIPART NUMBER: 890-826500

Thermostatic Control Switch Adjustable

$10995
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Crimp Connector Kit [160 Pieces]

JEGS

Crimp Connector Kit [160 Pieces]

Part Number : 555-10705
$1599$17.99
You Save$2.00
Wire Crimping Pliers and Stripping Tool

JEGS

Wire Crimping Pliers and Stripping Tool

Part Number : 555-80575
$1399$15.99
You Save$2.00

    Thermostatic Control Switch
  • Adjustable
  • 140° to 200°F

  • Input Voltage: 10.0 to 16.0 VDC, 12.0 Nominal
  • Power Consumption: 2.6 Watts Nominal
  • Temperature Adjustment: 140°F to 200°F
  • Output Rating: 25 Amps Nominal

TCI offers two models of Thermostatic Control Switches that are designed for use with electric fans. Both types of thermostatic control switches come complete with installation hardware and instructions. The adjustable control switch can be set by the user to activate the fan when temperatures range from 140 to 200 degrees Fahrenheit. The adjustable control switch can also be wired to automatically operate the fan when running the air conditioning system. The preset control switch is designed to for racing applications and will activate a fan at 185 degrees Fahrenheit and turn it off when the temperature drops below 170 degrees Fahrenheit.

Features:

  • Choice of Adjustable or Preset Models
  • Designed to Control Electric Fans
  • Includes Installation Hardware and Instructions
Part TypeTemperature Sensor
Product LineTCI Thermostatic Control Switches
BrandTCI
Package Height1.6
Package Width5.6
Package Length9.1
Weight0.54 PG
Part CategoryPerformance Parts
Wiring Harness IncludedYes
Thermal Switch StyleAdjustable fan control module only
Sending Unit IncludedNo
Manual Override Switch IncludedNo
Fan QuantitySingle/Dual
Adjustment Range (F)140-200 degrees F
Air Conditioning Relay IncludedYes
QuantitySold individually
Part FitmentUniversal
Relay IncludedNo
Vendor Part Number826500
Package Qty1
Package TypeEA
