![Digital PWM Electric Fan Controller, 75 Amp Rating [Black Anodized Finish]](https://www.jegs.com/images/mini_750/200/259/259-16797.jpg)
Vehicle Info NeededDERALEPART NUMBER: 259-16797

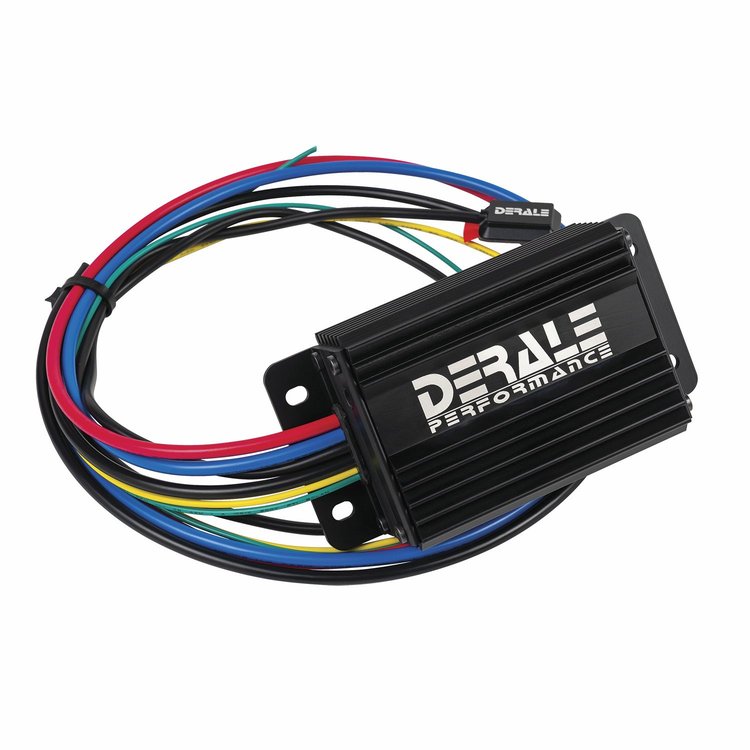

Digital PWM Electric Fan Controller, 75 Amp Rating [Black Anodized Finish]
$34397
4 left in stock
Ships Tomorrow
Lowest Price GuaranteePWM Fan Controller
Digital PWM Electric Fan Controller75 Amp Rating 130-230 Degree F Temperature Range Soft Start Technology Pulse Width Modulation A/C Override Circuit Flat Surface Mounted 6061 Aluminum Finned Housing Black Anodized Finish
Breakdown of Included Items for Derale 16797
Features:
- Provides the ability to control multiple electric fans up to 70 Amp capacity
- Smart Start Technology will slowly turn on the fan(s) to eliminate potential amperage spikes
- The Pulse Width Modulation controls the fan(s) speed from 0 to 100-percent, constantly adjusting to the optimum temperature and reducing fan noise
- A 20-second cooldown timer starts once the vehicle is turned off
- 50 Amp auto-reset short-circuit breaker
- Built-in short circuit, over amperage, low voltage, high voltage, reverse polarity, over-temperature, and Anti-flyback protections
- Dimensions: 3 in. W x 5 13/16 (.8125) in. L x 1 5/8 in. H
Take Control of Your Vehicle's Cooling
Derale PWM Fan Controllers use modern-day Smart Technology to control your engine's cooling system electric fan speeds and continuously monitor your engine's temperature. These controllers increase vehicle cooling efficiency while also reducing the amps used to do so. They provide a more accurate reading for your cooling system, react 50-percent quicker than typical brass probe-style sensors, eliminate harmful amperage spikes, and reduce fan noise.
Part TypeElectric Fan Controller
Product LineDerale PWM Fan Controllers
BrandDERALE
Package Height2.4
Package Width8.0
Package Length8.5
Weight2.32 PG
Part CategoryPerformance Parts
Wiring Harness IncludedYes
Sending Unit IncludedYes
Adjustment Range (F)130-230 Degrees F
Sending Unit StyleFlush surface mount
QuantitySold individually
Part FitmentSemi Universal
Vendor Part Number16797
Package Qty1
Package TypeEA
