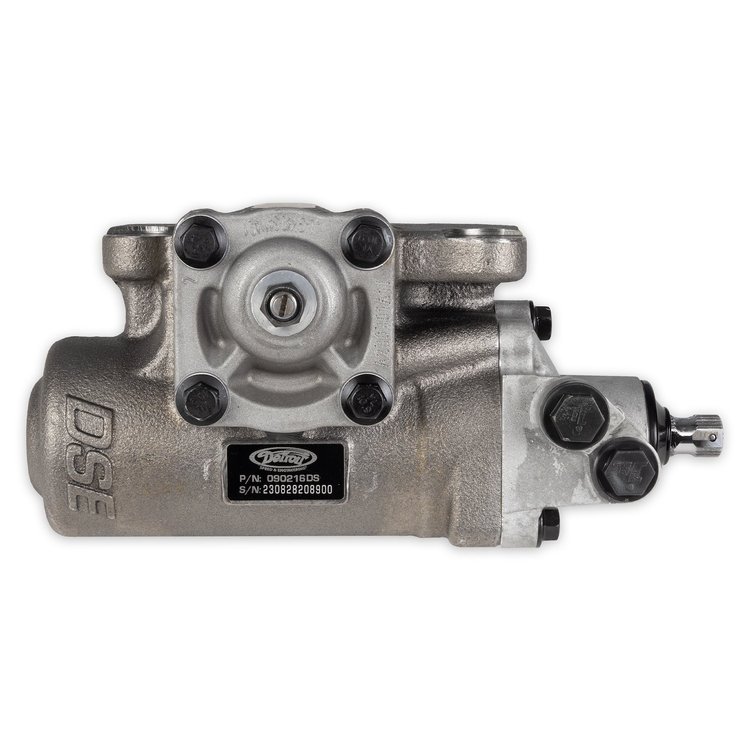

090216DS Power Steering Box w/12.7:1 Ratio for 1968-1991 GM Trucks (2WD)

Name: 090216DS Power Steering Box w/12.7:1 Ratio for 1968-1991 GM Trucks (2WD)
Brand: DETROIT SPEED
SKU: 320-090216DS
Price: 571.95 USD
Availability: InStock

^$571⁹⁵

3 left in stock

Ships Tomorrow

Lowest Price Guarantee

GM Truck

Power Steering Gear Box

1968-1991 GM Trucks (2WD)

Quick 12.7:1 Steering Ratio

3-Turns Lock to Lock

3/4 x 30 Spline Input

Compatible w/OEM Pitman Arm

New Unit Not Rebuilt

Low-Friction Gear Design

Performance Car Feel

Detroit Speed 090216DS Power Steering Box Features:

Replaces the common GM 800 series power steering gear used from 1968 to 1991
"Detroit Tuned" rack and pinion valve technology
Low-friction gear design
12.7:1 quick ratio gearing
Provides late-model performance car feel
Compatible with OEM pitman arm from power steering equipped trucks
Compatible with OEM rag joint

Detroit Speed 090216DS Power Steering Box Notes:

Requires M18 x 1.5 O-ring style pressure fitting and M16 x 1.5 O-Ring return fitting (1981 and later style)
Installation on a 1967 C-Series truck requires frame modifications to the steering box area

Quick Ratio Steering Boxes

The Detroit Speed quick ratio steering gearboxes provide modern late-model steering performance comparable to a rack and pinion with simple bolt-in installation. This steering box replaces the power steering box from the GM/Delphi 800 or 600 series.

Part TypeSteering Box

Product LineDetroit Speed Power Steering Box

BrandDETROIT SPEED

Package Height7.0

Package Width12.0

Package Length14.0

Weight29.1 PG

Part CategoryReplacement Parts

Spline Quantity30

QuantitySold individually

Part FitmentDirect Fit

Vendor Part Number090216DS
