Vehicle Info NeededDORMAN PRODUCTSPART NUMBER: 326-534-017

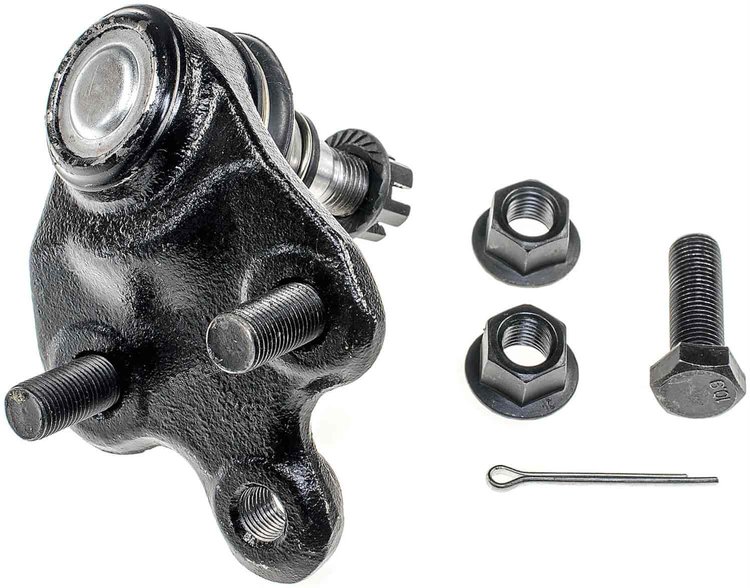

Suspension Ball Joint 2003-2010 Pontiac Vibe, 2005-2010 Scion tC, 2009-2019 Toyota Corolla, 2003-2014 Toyota Matrix Front Lower
$2022
4 left in stock
Ships Tomorrow
Lowest Price GuaranteeSuspension Ball Joint
Suspension Ball Joint2003-2010 Pontiac Vibe 2005-2010 Scion tC 2009-2019 Toyota Corolla 2003-2014 Toyota Matrix Front Lower Includes:
- Ball Joint
- Castle Nut
- Cotter Pin
- Zerk Fitting
- (2) Bolts
Direct OE Cross References:
- GM 19184280, 88972115
- Toyota 4333009670, 4333029425
Part TypeBall Joint
BrandDORMAN PRODUCTS
Package Height85.03 mm
Package Width59 mm
Package Length111 mm
Weight2.2 PG
Part CategoryReplacement Parts
Grease Fitting IncludedNo
Wrench Size12 mm
Stud Tapered End 1 Diameter27.2 mm
Stud Thread Diameter14 mm
Mounting Bolts IncludedNo
Mounting Hole Quantity1 in.
Mount Plate IncludedNo
Dust Boot IncludedYes
Bolts/Studs IncludedYes
Bushing Quantity0
Dust Boot MaterialRubber
Washers IncludedNo
Nuts IncludedYes
Ball Joint AssemblyYes
Suspension Grade TypeStandard
Castle Nut IncludedYes
Stud Thread Length35.5 mm
Bearing MaterialPolymer
PositionFront Lower
Cotter Pin IncludedNo
ColorGray
Stud Thread Pitch1.5 mm
QuantitySold individually
Mounting Hardware IncludedYes
Stud TypeTaper
MaterialSteel
Cotter Pin HoleYes
Maximum Outside Diameter61 mm
Stud Tapered End 2 Diameter22 mm
Mounting TypeBolt On
AdjustableNo
Greasable (Y/N)Yes
TypeThreaded
Stud Taper Per Foot2 in.
Thread PitchM1.5 mm
GreaseableNo
Dust BootYes
Attachment TypeTaper
Tapered StudYes
Bushings IncludedNo
Vendor Part Number534-017
Package Qty1
Package TypeEA
