Vehicle Info Needed

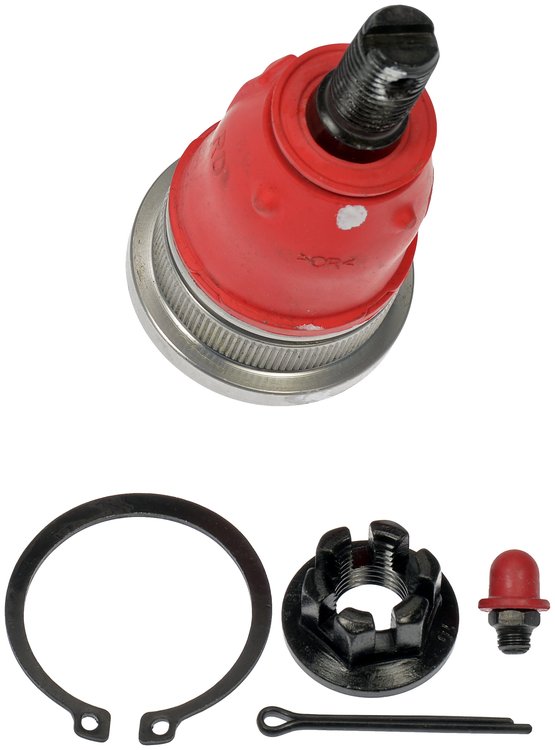

Lowest Price GuaranteePart TypeSuspension Ball Joint
BrandDORMAN PRODUCTS
Package Height85.03 mm
Package Width59 mm
Package Length111 mm
Weight1.21 PG
Part CategoryReplacement Parts
Grease Fitting IncludedYes
Distance Between Mounting Holes30 mm
Wrench Size21 mm
Stud Tapered End 1 Diameter17.95 mm
Stud Thread Diameter1/2 in.
Mounting Bolts IncludedYes
Mounting Hole Quantity0
Mounting Bolt Thread Pitch24 mm
Mount Plate IncludedYes
Dust Boot IncludedYes
Bolts/Studs IncludedYes
Bushing Quantity0
Mounting Bolt Length25.4 mm
Dust Boot MaterialPolychloroprene
Washers IncludedNo
Nuts IncludedYes
Ball Joint AssemblyYes
Mounting Bolt Thread Length25.4 mm
Mounting Bolt Head Diameter11.7 mm
Suspension Grade TypeStandard
Castle Nut IncludedYes
Stud Thread Length23 mm
Bearing MaterialMetal
Cotter Pin IncludedYes
ColorGray
Stud Thread Pitch1.5 mm
Mounting Hardware IncludedYes
Stud TypeTaper
MaterialSteel
Cotter Pin HoleYes
Maximum Outside Diameter56.06 mm
Stud Tapered End 2 Diameter21.4 mm
Mounting TypeBolt On
AdjustableNo
TypeBolt On
Stud Taper Per Foot1.59 in.
Thread Pitch1.5 mm
GreaseableYes
Attachment TypeTaper
Part FitmentSemi Universal
Tapered StudYes
Bushings IncludedNo
Vendor Part NumberB90255RD
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
