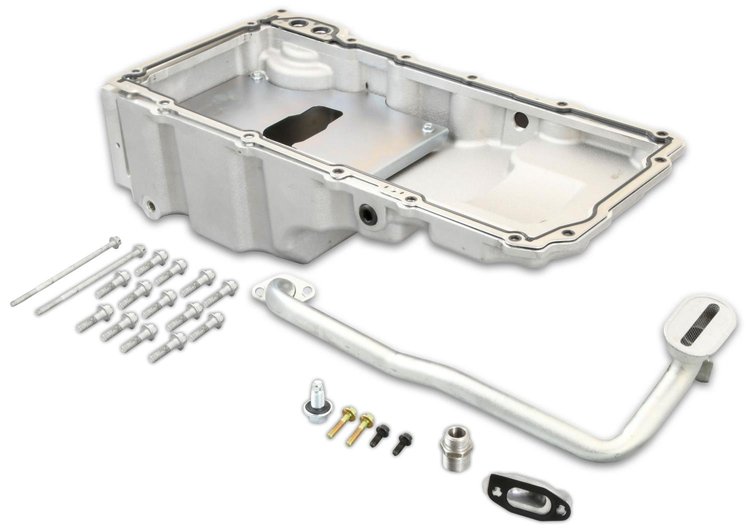

Oil Pan Kit for GM LS Engine Swaps [Cast Aluminum]
InfoVehicle Info Needed
DOUG'S HEADERSPART NUMBER: 776-SKOP100

Oil Pan Kit for GM LS Engine Swaps [Cast Aluminum]

$28430$315.89You Save$31.59
Lowest PriceLowest Price Guarantee

Oil Pan Kit
  • GM LS Series Engines
  • Additional Chassis Clearance
  • 5.600 Quarts Plus Filter
  • Cast Aluminum
  • Natural Finish
  • Includes:
    • Oil Pan
    • Oil Pan Pickup Tube
    • Pan Gasket
    • Sump Baffle
    • Drain Plug
    • Mounting Hardware

      Breakdown of Included Items for Doug's Headers SKOP100

      Doug's Headers SKOP100 was designed to allow for additional engine-to-chassis clearance in the front half of the oil pan.

      Doug's SKOP100 LS Engine Swap Oil Pan Features:

      • Maximum Stroke: 4 in.
      • Ports for oil drain used on turbo applications
      • Stock location filter mount

      Engine Swap Fitment:

      • 1964-1967 GM A-Body
      • 1967-1972 Chevy/GMC C10 Truck
      • 1970-1981 GM F-Body

      Doug's SKOP100 LS Engine Swap Oil Pan Notes:

      • Will not fit with factory dry sump or LS7 engines
      • Oil pan can not be changed with the engine installed in the vehicle
      • This pan requires a Chevrolet Performance LS3-style 12669528 dipstick and 12625031 tube (sold separately)
    • Part TypeOil Pan
    BrandDOUG'S HEADERS
    Package Height6.5
    Package Width13.0
    Package Length25.0
    Weight17.0 PG
    Part CategoryPerformance Parts
    Oil Pan Capacity5.6 Quarts plus Filter
    ConstructionCast Aluminum
    Maximum Stroke4 in (101.6 mm)
    Pickup IncludedYes
    Oil Pump Driveshaft IncludedNo
    Oil Pan TypeStamped
    QuantitySold as a kit
    Oil Pan FinishNatural
    Bolts/Studs IncludedYes
    Drain Plug IncludedYes
    Dipstick IncludedNo
    Oil Pump IncludedNo
    Gaskets IncludedYes
    One-Piece GasketYes
    Rear Main Seal Style1-piece
    Engine ManufacturerGM LS Engine
    Crank Scraper IncludedNo
    Part FitmentSemi Universal
    Kicked OutNo
    Vendor Part NumberSKOP100
    Package Qty1
    Package TypeEA
