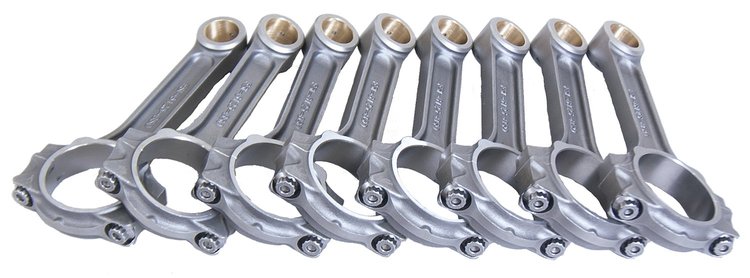

FSI6125O Steel 4340 I-Beam 6.125 in. Connecting Rods for GM Gen III/IV LS Engines
InfoVehicle Info Needed
EAGLEPART NUMBER: 356-FSI6125O

FSI6125O Steel 4340 I-Beam 6.125 in. Connecting Rods for GM Gen III/IV LS Engines

$45099
2 left in stock
ShippingShips on Nov 23, 2026
Lowest PriceLowest Price Guarantee

Items You Need

1-Ton Automotive Shop Crane [Boom Operating Range: 34 in. to 45 in.]

JEGS

1-Ton Automotive Shop Crane [Boom Operating Range: 34 in. to 45 in.]

Part Number : 555-81044K
$23698
1/2 in. Drive Digital Torque Wrench for Fastener Tightening and Disassembly Torque Detection

JEGS

1/2 in. Drive Digital Torque Wrench for Fastener Tightening and Disassembly Torque Detection

Part Number : 555-81694
$15899$193.99
You Save$35.00
Deluxe Piston Ring Expander Tool Universal

TOTAL SEAL

Deluxe Piston Ring Expander Tool Universal

Part Number : 901-HAS1723
$2183
Piston Installation Kit Includes: Universal Ring Squaring Tool, Ring Compressor, & Heavy Duty Piston Install Tool

PROFORM

Piston Installation Kit Includes: Universal Ring Squaring Tool, Ring Compressor, & Heavy Duty Piston Install Tool

Part Number : 778-67652K3
$9548

GM Gen III/IV LS
Connecting Rods
  • GM Gen III/IV LS Engines
  • Center to Center Length: 6.125 in.
  • Forged 4340 Steel
  • Pin Size: .927 in.
  • Rod Journal: 2.100 in.
  • Housing Bore: 2.225 in.
  • Bolts: 7/16 in. ARP 8740
  • Weight-Matched
  • Set of 8

    Eagle FSI6125O Steel 4340 I-Beam 6.125 in. Connecting Rods:

    • Forged from premium 4340 steel for maximum strength and durability
    • Designed for GM LS-series engines with a 6.125 in. center-to-center rod length
    • Shot-peened and CNC-machined beam for fatigue resistance and precision sizing
    • Bushed pin ends with 0.927 in. wrist pin bore, allowing full-floating operation
    • 7/16 in. ARP 8740 cap screws with alignment sleeves ensure consistent cap location
    • Rod journal: 2.100 in., Housing bore: 2.225 in., Big-end width: 0.940 in.
    • Weight-matched to ±1 g per set for highly balanced engine performance
    • Typical rod weight 610 g (13 lb/set of 8)
    • Rated for up to 700 hp in naturally aspirated competition applications
  • Forged from SAE/AISI certified 4340 steel, Eagle's ''FSI'' I-Beam rods offer a high-strength, lower cost alternative to their H-Beam rods. Eagle ''FSI'' I-Beam rods are equipped with 7/16'' ARP bolts and silicon-bronze wrist pin bushings for performance and pump gas racing applications. Big end sizing is performed with Sunnen's Krossgrinding system to ensure perfect sizing. I-Beam design is lighter and less expensive than H-Beam designs.

    Features:

    • I-Beam Design
    • Forged 4340 Steel
    • 7/16'' ARP 8740 or 2000 Series Bolts
    • Silicon-Bronze Wrist Pin Bushings
    Part TypeConnecting Rod
    Product LineEagle FSI I-Beam Connecting Rods
    BrandEAGLE
    Package Height4.0
    Package Width10.0
    Package Length12.0
    Weight13.0 PG
    Part CategoryPerformance Parts
    Rod Journal Diameter2.1 in (53.3 mm)
    Big End Bore Diameter2.225 in (56.515 mm)
    Part FitmentSemi Universal
    Pin End Width1.005 in. (25.53 mm)
    Big End Width0.94 in (23.876 mm)
    Connecting Rod Length Center To Center6.125 in. (155.58 mm)
    Vendor Part NumberFSI6125O
    Package Qty1
    Package TypeEA
