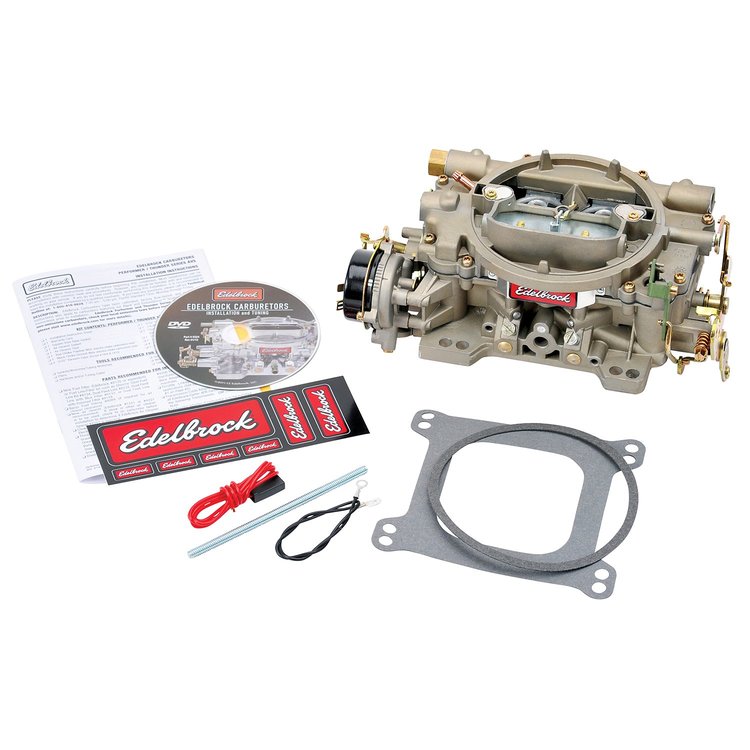

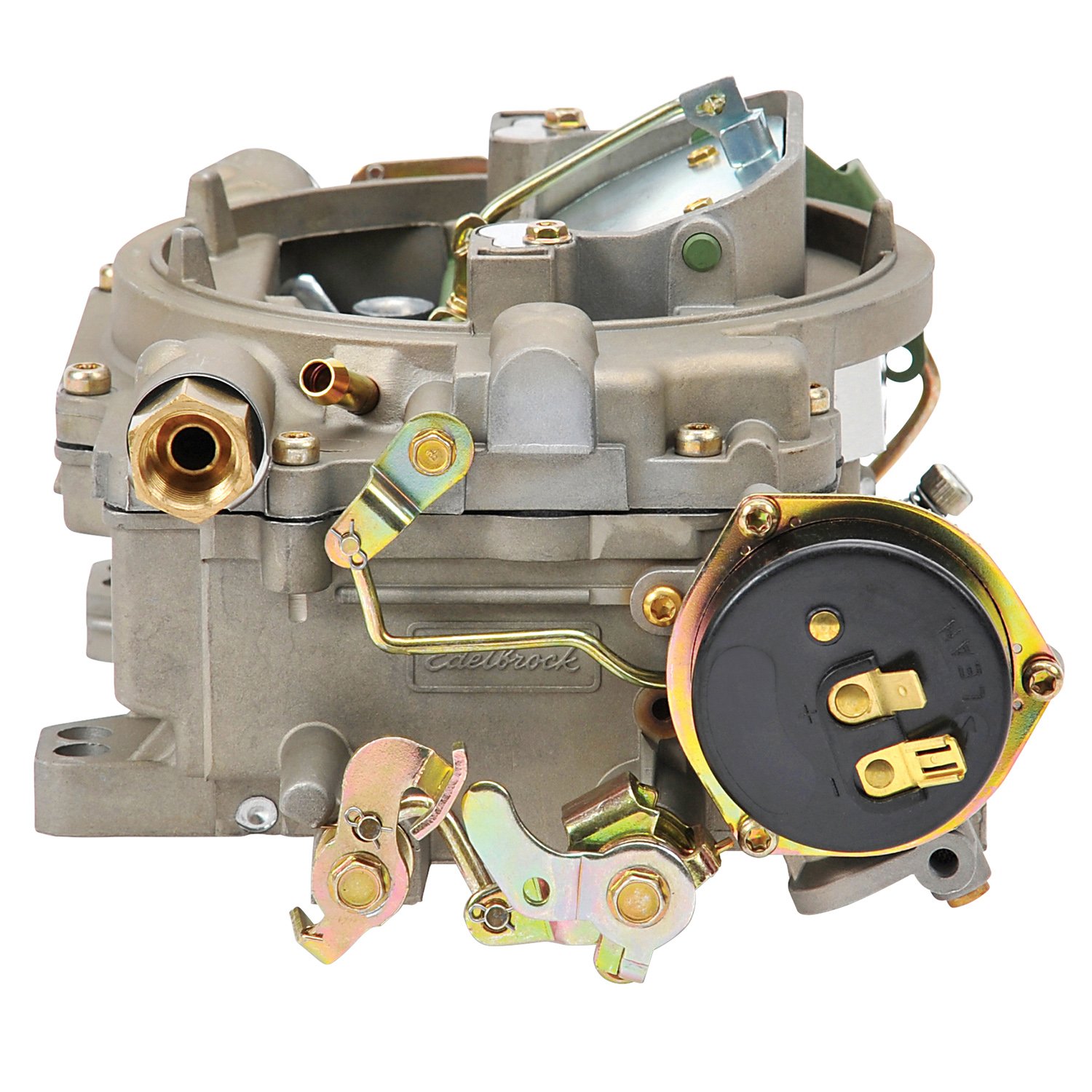

Edelbrock 1410 Marine 750 CFM Carburetor with Electric Choke Features:

• Includes: .113 Primary, .107 Secondary Metering Jets; .071 x .047 Metering Rods; Orange 5" Hg Spring
• For use with intake manifolds equipped with a square bore carburetor mounting pattern
• Meets United States Coast Guard safety standards
• Cast surfaces are irridated; shafts and pump arm are PTFE-coated
• Modified bowl venting
• Specially-designed throttle shafts
• Accelerator pump seal
• 3/8 in. inverted flare fuel inlet fitting
• Tube in airhorn for fuel pump vent
• 5-1/8 in. Flame arrester flange
• Universal throttle lever
• Revised secondary system for improved transient performance

Edelbrock 1410 Marine 750 CFM Carburetor with Electric Choke Note:

• Intake Manifolds equipped with a spread bore flange will require a Carburetor Adapter Kit such as JEGS 15440 or equivalent (sold separately)

FAQ

How does an electric choke work on an Edelbrock carburetor?

• The Edelbrock 1410 carburetor employs an electric choke for cold-start enrichment.
• It regulates the air-fuel mixture for smooth engine starts by controlling the choke plate.

How much horsepower does an Edelbrock carburetor add?

• The Edelbrock marine carburetor 1410 optimizes engine performance, potentially adding 5-10% horsepower.
• Actual gains vary based on engine setup and conditions.

What does an electric choke do?

• An electric choke, like in the Edelbrock 1410 marine carburetor, adjusts the air-fuel ratio during cold starts.
• It ensures a richer mixture for easier ignition in colder temperatures.

How many CFM is an Edelbrock 1406 carburetor?

• The Edelbrock 1406 carburetor typically delivers 600 CFM (cubic feet per minute).
• This airflow capacity suits a wide range of engines for enhanced performance.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
